INSTALL THE AIR COMPRESSOR AND ECU
3
x 12x 2x 4 x 6
DO NOT OVER TIGHTEN MOUNTING BOLTS AND NUTS ON THE AIR COMPRESSOR.
TOO MUCH TORQUE CAN CRUSH THE BRASS INSERTS AND RUBBER ISOLATORS.
1
2
3
Mount the black ground wire
ring terminal using the sup-
plied fasteners. Assure that
the ring terminal makes
a solid contact with bare
metal for a proper ground.
3093 10-32 x 3/4” MACHINE SCREW
3086 #10 FLAT WASHER
3088 10-32 NYLOCK NUT
3086 #10 FLAT WASHER
(or optional Firestone
air accessory
mounting kit).
BODY OR FRAME
OF VEHICLE
MOUNTING HOLES
9961 ECU
TOP VIEW

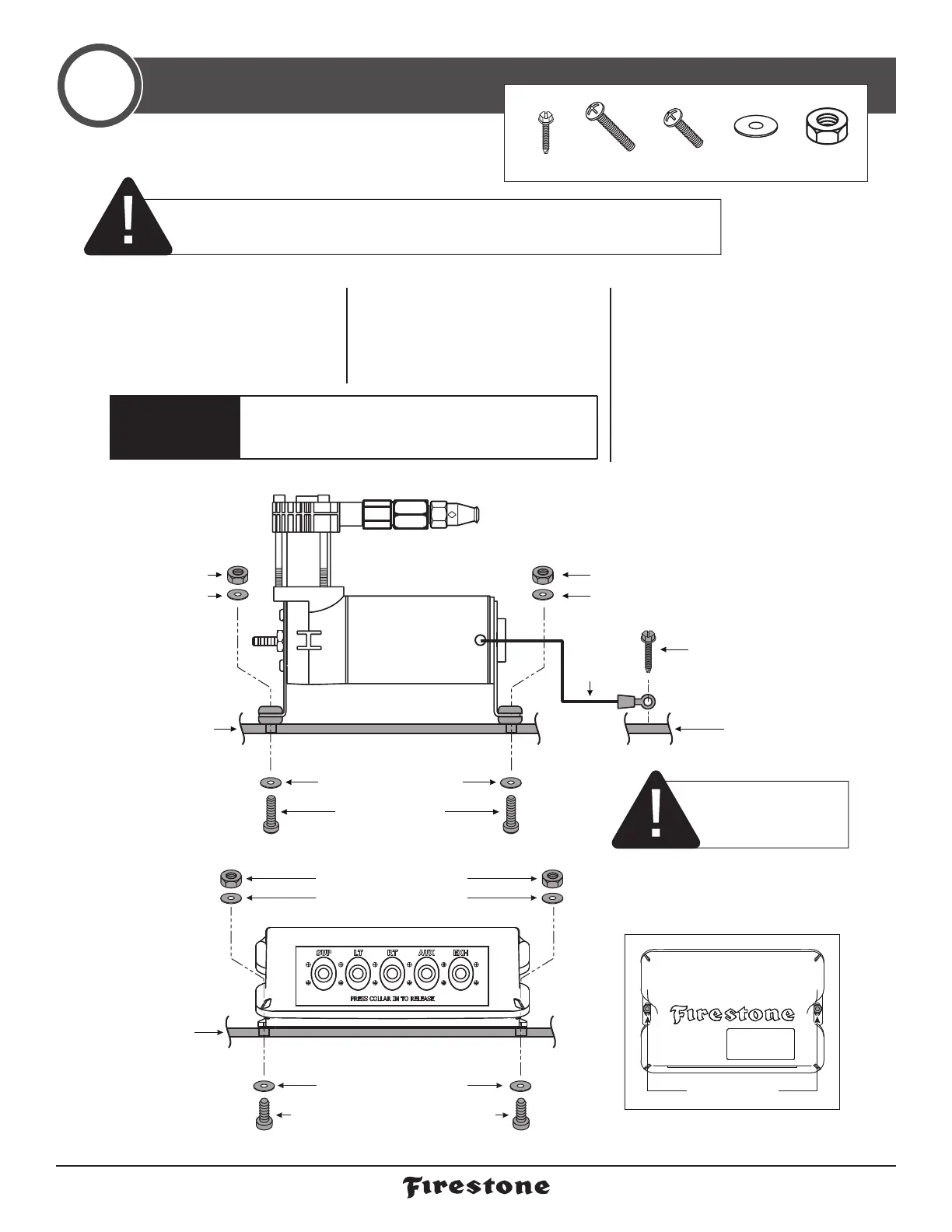

Mount the Air Compressor
to the hole locations on the
provided Mounting Kit
using the supplied fasteners.
DO NOT OVERTIGHTEN.
Mount the ECU to the hole
locations on the provided
Mounting Kit using the
supplied fasteners.
OPTIONAL
9523 AIR
COMPRESSOR
NOTE: You may want to
combine other grounds
to this mounting location.
3087 10-32 x 1”
MACHINE SCREW
3088 10-32 NYLOCK NUT
3086 #10 FLAT WASHER
3086 #10 FLAT WASHER
3088 10-32
NYLOCK NUT
3086 #10 FLAT
WASHER
3421 10-16 x 3/4”
SELF-TAPPING SCREW
BLACK
GROUND
WIRE
Mount to the drill holes made in the frame.
Do this only if the mounting kit will not mount
to the frame of the vehicle.
(or optionally mounted
on Body or Frame
of Vehicle).
AIR ACCESSORY
MOUNTING KIT #2644
(or optionally mounted
on Body or Frame
of Vehicle).
AIR ACCESSORY
MOUNTING KIT #2644
Air Accessory Mounting
Kit cannot be used as a
grouding location for the
Air Compressor.
BODY OR FRAME
OF VEHICLE
To Next Page
