930 Installation Instructions 4
PLANNING THE INSTALL
THESE PLANNING STEPS WILL HELP YOU SAVE TIME AND WILL MAKE THE INSTALLATION EASIER.
DETERMINE THE MOUNTING LOCATION FOR THE AIR COMMAND KIT
This Kit comes with a Mounting designed specifically for the provided Air Compressor and ECU.
Refer to the Mounting Kit Manual attached at the end of the this Kit’s Manual for addtional instructions.
Consult the OPTIONAL instructions below and in Section 2 only if the Mounting Kit
does NOT fit your vehicle.
PLAN INSTALLATION ROUTES FOR WIRING AND AIR LINES
- Use supplied Thermal Sleeves on Air Tubing when routing near heat sources.
- Use supplied Nylon Ties to secure Air Tubing and Wire Harness to the vehicle.
- Make a loop in the Air Tubing where shown. This creates a water/debris trap that protects the Air Compressor.
- Measure twice, cut once!
TAPE ALL ELECTRICAL CONNECTIONS
- Use electrical tape to appropriately secure and protect all electrical connections.

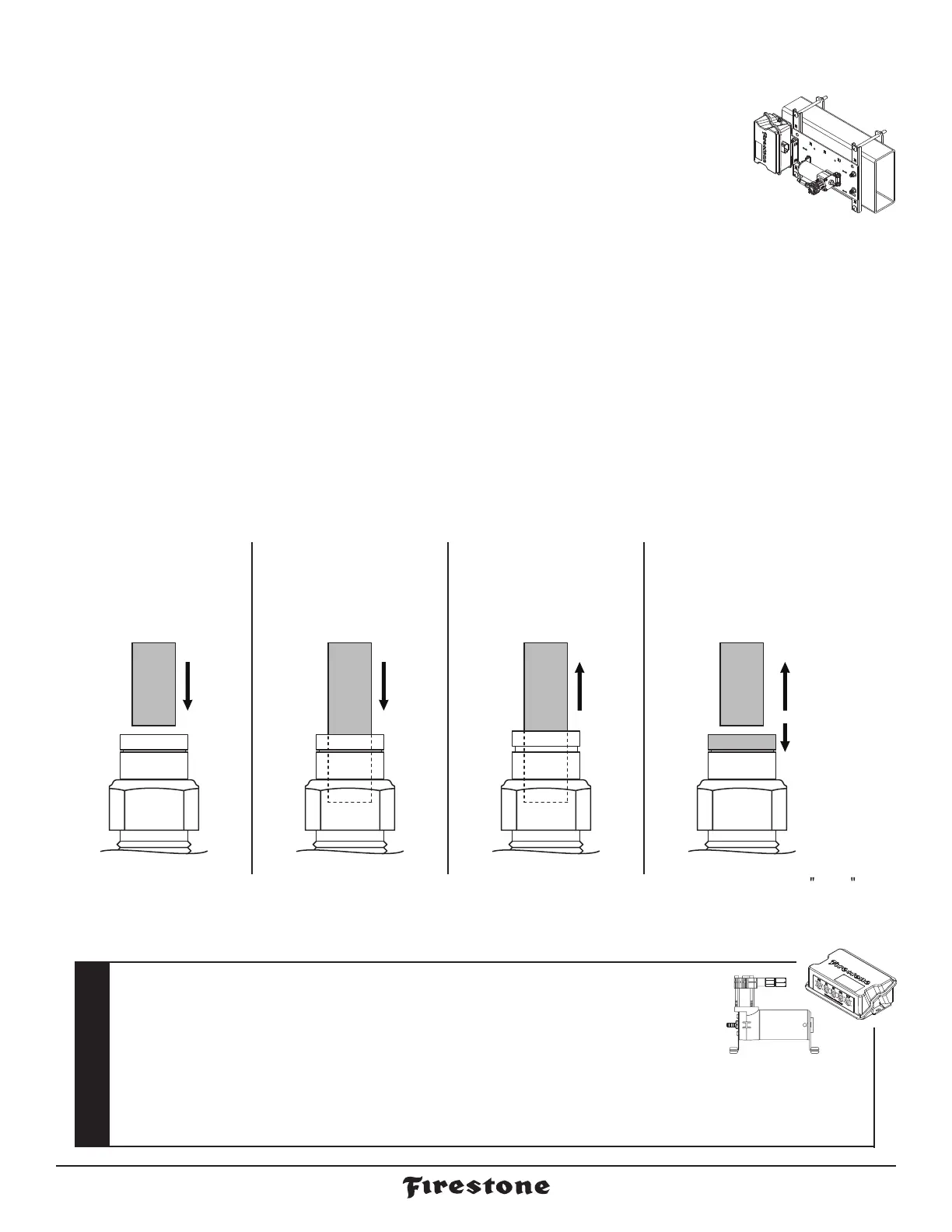

USING PUSH-TO-CONNECT FITTINGS FOR AIR LINES
Your kit includes Push-to-Connect fittings to connect the Air Tubing to hardware.
Use the instructions below when using the Air Tubing.
1
Insert end of Air
Tubing into
Air Fitting.
2
Push Air Tubing
into Air Fitting as
far as possible.
3
Gently pull on
the Air Tubing
to check for a
secure fit.
4
To remove, push
down collar and
gently pull Air
Tubing away.
Removal Tip: Use a 1/4 , 5/16 ,
or 6mm open-ended wrench
to push the collar down.
- Make sure the Wire Harness and Air Tubing are not exposed to sharp metal edges that can damage them.
-
-
-
DETERMINE THE MOUNTING LOCATION FOR THE AIR COMPRESSOR AND ECU
-
-
-
-
-
Mount in a location protected from airborne debris and moisture.
Allow room for the Air Tubing to run without sharp curves or bends.
Allow room for the Tubing to connect to the Air Fitting on the ECU.
Allow room for the 4-pin ECU connector to connect to the ECU.
Mount close enough together to allow Wire Harness connections to reach the Air Compressor and ECU.
- Using supplied fasteners shown in Step 3 is recommended. If no other mounting option is available,
see the sidebar on Step 2 for using the Large Nylon Ties.
- Select a location that is solid and secure on the body or frame of the vehicle, away from any moving parts,
electrical or any other lines.
OPTIONAL
