930 Installation Instructions
6
9523 AIR COMPRESSOR
BLACK
GROUND
WIRE
Use as template to
mark drill locations.
Use as template to
mark drill locations.
9961 ECU
If there is no other
mounting option,
use at least two
Large Nylon Ties
to secure ECU
to the location
determined in
planning the
install section.
9961 ECU

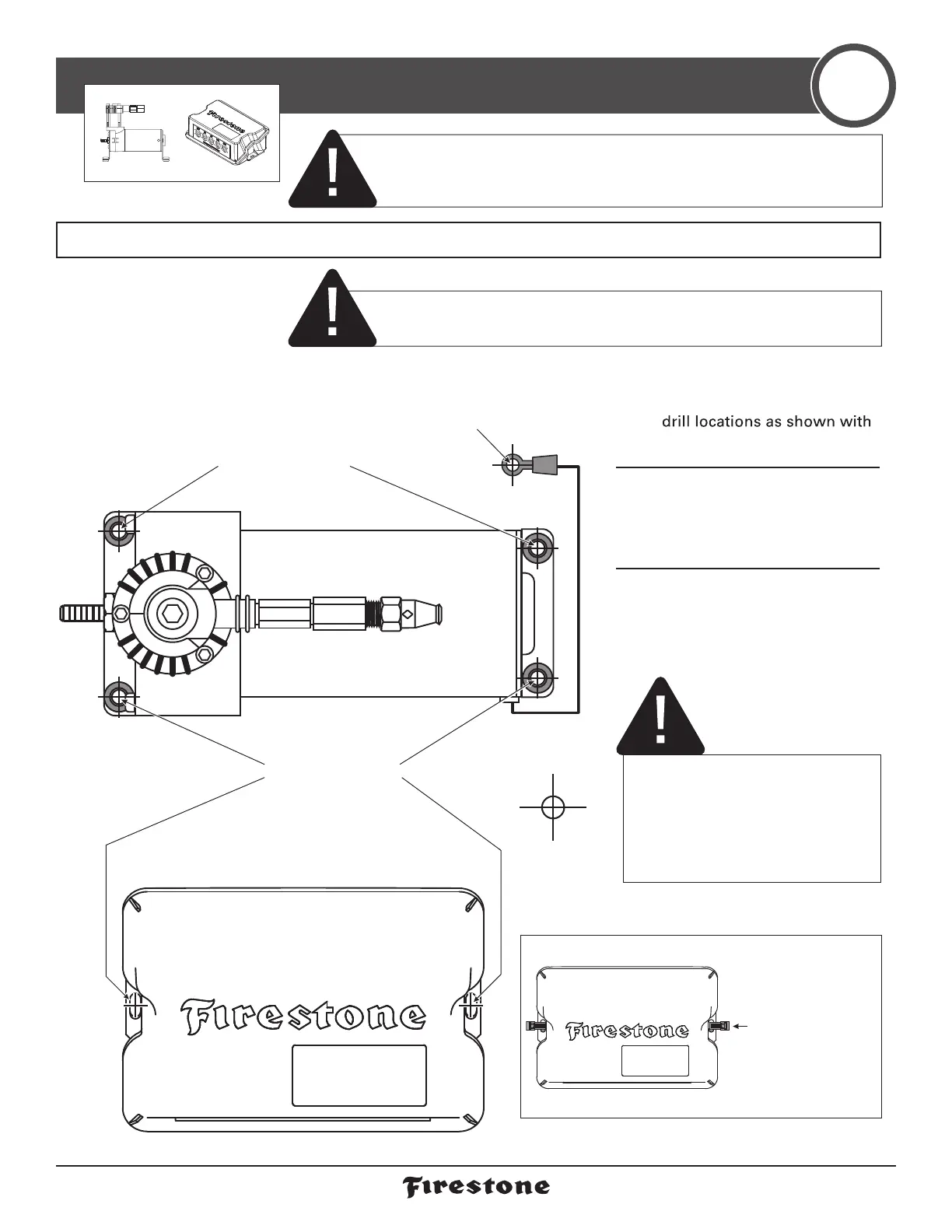

- DRILL HOLES FOR AIR COMPRESSOR AND ECU
2
7/32"
1
Using the Air Compressor
and ECU as templates, mark
a punch or marking tool.
2
Mark Air Compressor
ground wire fastening
location within reach of the
ground wire ring terminal.
3
Drill 7/32" diameter holes.
Remove any burrs and
debris from drill holes.
ASSURE THAT YOU INSTALL THE
AIR COMPRESSOR AND ECU CLOSE
ENOUGH SO THE CONNECTORS ON
THE WIRE HARNESS WILL REACH
THEM BOTH.
OPTIONAL ECU MOUNTING
IF YOU ARE USING THE SUPPLIED FIRESTONE AIR ACCESSORY MOUNTING
KIT, SKIP THIS STEP AND REFER TO THE MOUNTING KIT’S INSTRUCTIONS
AT THE END OF THIS MANUAL.
STOP HERE AND SKIP THIS STEP IF USING THE PROVIDED MOUNTING KIT
CHECK SURROUNDING AREA AND BACK SIDE OF MOUNTING LOCATION
TO AVOID DRILLING INTO EXISTING LINES OR WIRING.
Drill within reach of the ground wire ring terminal on body or frame
of vehicle or create a wire to link to the negative battery terminal.
Minimum gauge of wire should be 12.
AIR ACCESSORY MOUNTING KIT CANNOT BE USED AS A
GROUNDING LOCATION FOR THE AIR COMPRESSOR.
OPTIONAL
