! IMPORTANT
PLEASE DON’T HURT YOURSELF, YOUR KIT OR YOUR VEHICLE. TAKE A MINUTE TO READ THIS IMPORTANT INFORMATION.
DO NOT INSTALL IF THE TRUCK HAS BEEN LIFTED AND THE STOCK JOUNCE BUMPER SPACERS ARE NOT ON THE
VEHICLE. This kit is to be used on a pickup truck only, and DOES NOT INCREASE YOUR VEHICLE’S MAXIMUM LOAD.
SAFE INSTALLATION
Please take all safety precautions during installation. A hydraulic jack can fail, and if that happens, you can be
seriously hurt, or worse, if you are relying on it to hold up the vehicle. If you use a hydraulic jack, secure jack
stands in the appropriate locations and chock any tires still touching the ground.
Wear safety glasses or goggles. Your eyes may be lower than some parts and pieces, and you don’t want to lose an eye.
Remove the possibility of any electrical issues by disconnecting the negative battery cable.
KIT USES
This kit works with Air Command Kits 2930, 2931, 2933, and 2934. Refer to the following pages for kit-specific layouts
to ensure all of the components fit onto the Compressor Mount Plate.
VEHICLE GVWR
NEVER exceed the maximum load recommended by the vehicle manufacturer (GVWR). The GVWR can be found
in your vehicle’s owner’s manual or on the data plate on the driver’s side door.
INFLATING THE AIR SPRINGS
When inflating air springs, add air pressure in small quantities, checking air pressure frequently.
The air springs have much less air volume than a tire, so they inflate much more quickly.
APPROPRIATE AIR PRESSURE
For best ride, use only enough air pressure in the air springs to level the vehicle when viewed from the
side (front to rear). This will vary, depending on the load, location of the load, condition of the existing
suspension, and personal preference.
PARTS

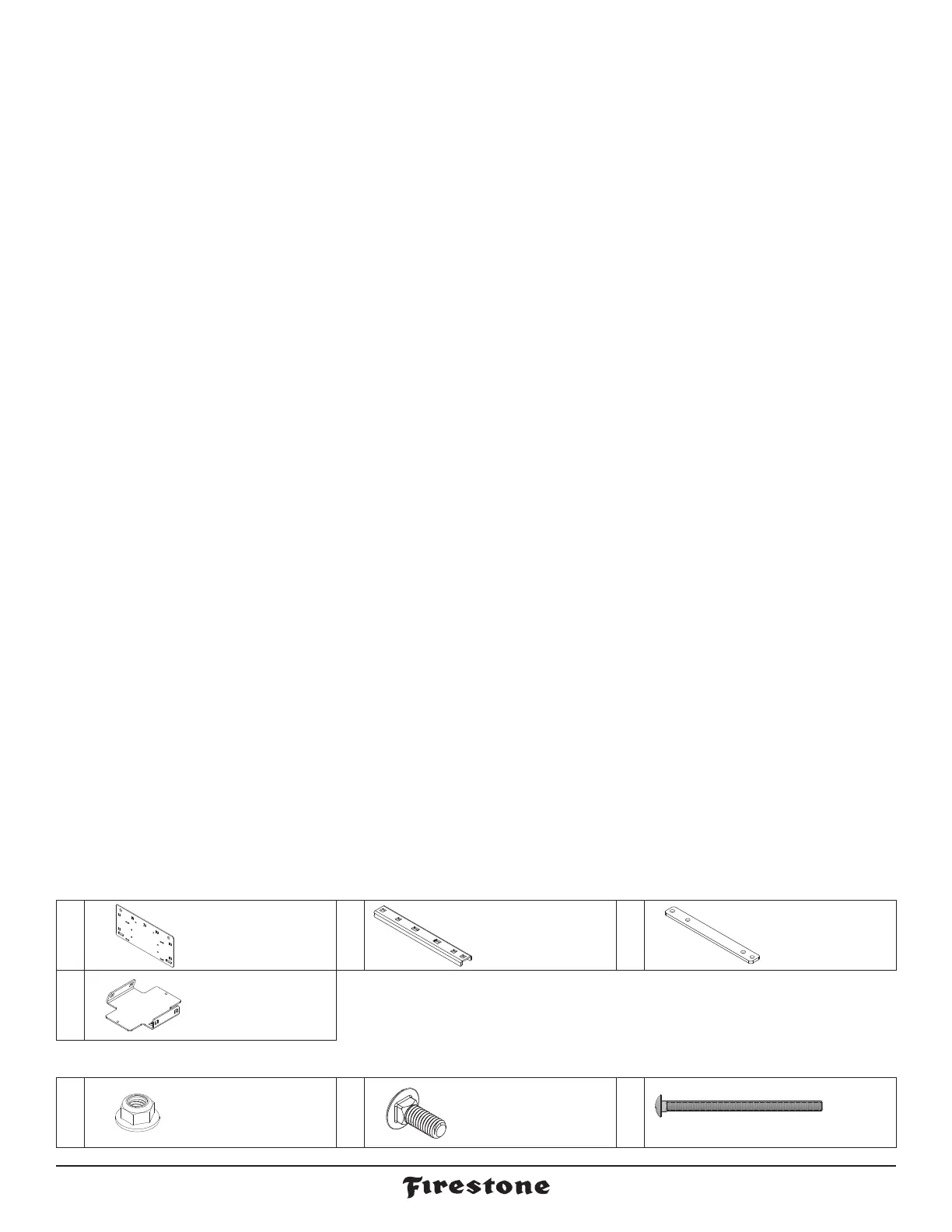

Compare the parts below to your kit. Ensure you have all pieces, and organize them for an easier installation.
MAIN KIT CONTENTS
PT # 5694
x 1
NO DRILL
COMPRESSOR
PLATE
PT #5965
x 2
PLATE CHANNEL
MOUNT
PT # 5966
x 2 BACKING PLATE
PT # 5698
x 1
ECU MOUNTING
BRACKET
A21-760-2644 HARDWARE PACK
PT # 3067
x 8
3/8"-16 HEX HEAD
FLANGE NYLOCK
NUT
PT # 3072
x 4
3/8"-16 X 1"
CARRIAGE
BOLT
PT # 3502
x 8 3/8"-16 X 6" CARRIAGE BOLT
To Next Page
