2644 Installation Instructions 2
3/8"-16 X 1”
CARRIAGE
BOLT x 4
3/8"-16 HEX HEAD
FLANGE NYLOCK
NUT x 4
NO-DRILL
COMPRESSOR
PLATE
ECU
MOUNTING
BRACKET
PLATE CHANNEL MOUNT

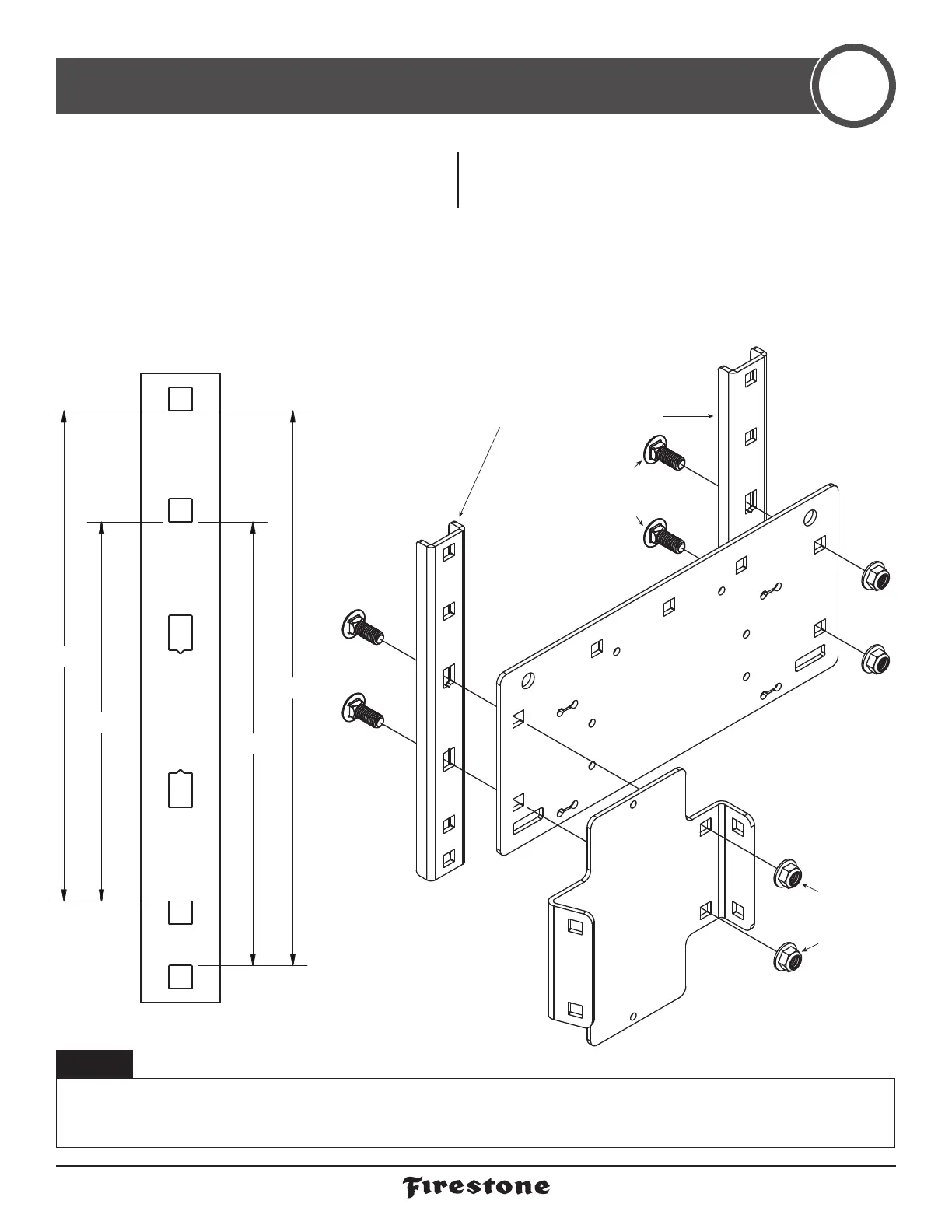

MOUNTING BRACKET AND AIR ACCESSORY INSTALLATION
1
1
Mount the No-Drill Compressor Plate to the
Plate Channel Mounts shown below.
2
Align the Compressor Plate to the bottom
of the slots in the Plate Channel Mount.
8
9
/16”
6
5
/8”
7
3
/4”
9
11
/16”
3
Select a suitable location for installation on the vehicle frame rail. Take a tape measure to get
a rough height of the frame rail. Use that measurement to determine which holes to use in the
mounting plates (distances between holes shown below). It is recommended to mount to the
passenger side frame rail as the vehicle's battery is normally located in the engine compartment
on the passenger side. Double check before final installation.
The recommended mounting orientation of the ECU Mounting Bracket is shown above. Other orientations are possible if there is
not enough space for the width of the assembly. Please see Alternate ECU Mounting Configurations in Section 7 for other potential
mounting options. Additional fasteners are included if needed.
NOTE:
