2644 Installation Instructions 4
INSTALL THE AIR COMPRESSOR - USE FOR STANDARD DUTY AIR COMMAND KITS 2930 & 2933
3
x 8x 4 x 4
Fasteners included in Air Command Kit
DO NOT OVER TIGHTEN MOUNTING BOLTS AND NUTS ON THE AIR COMPRESSOR.
TOO MUCH TORQUE CAN CRUSH THE BRASS INSERTS AND RUBBER ISOLATORS.
1

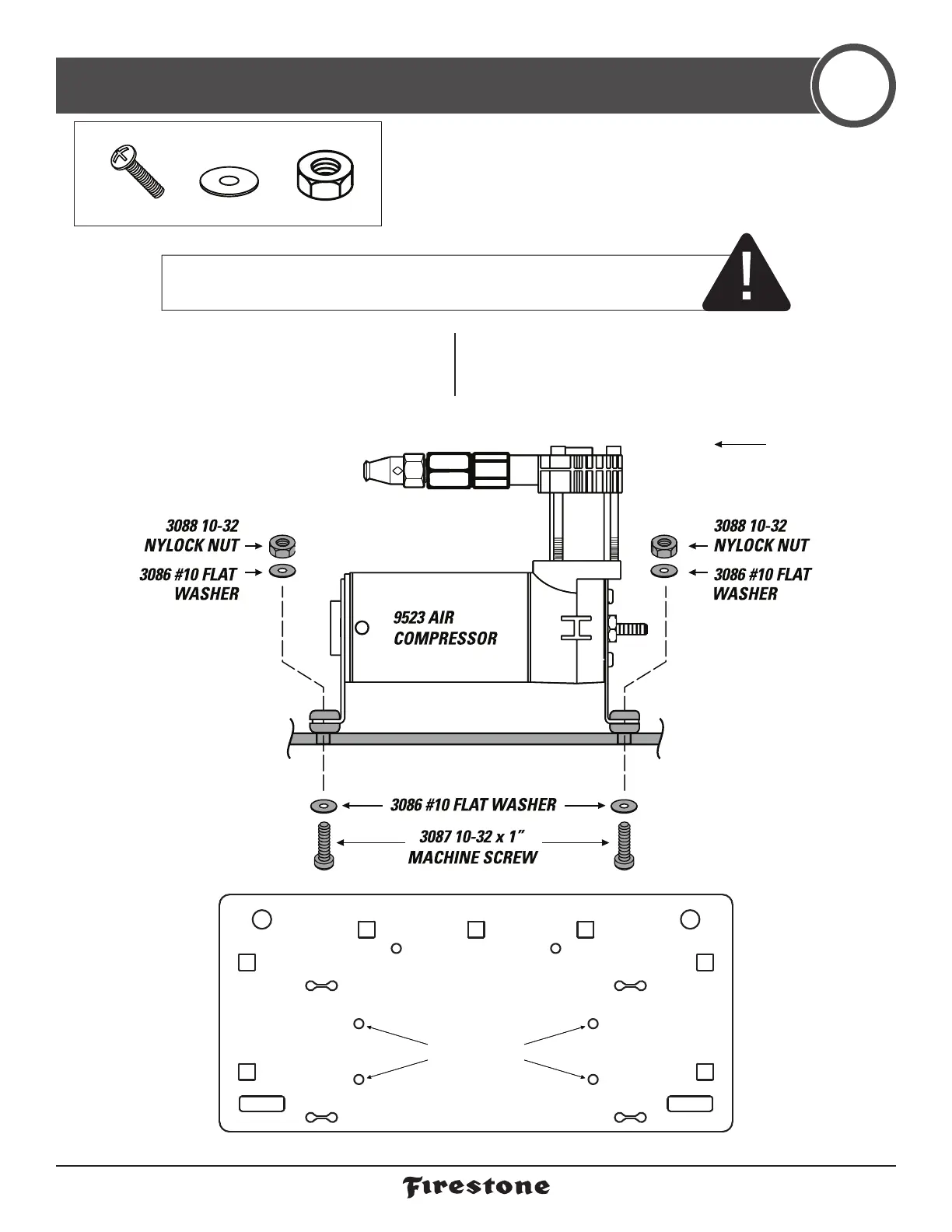

Mount the Air Compressor to the hole
locations in the Compressor Plate
using the
supplied fasteners.
DO NOT OVERTIGHTEN.
2
It is recommended to face the outlet of the
compressor towards the air springs on the
rear axle of vehicle.
TO AIR SPRINGS
COMPRESSOR
PLATE
MOUNTING
HOLES
