MOUNTING TO THE VEHICLE - USE FOR STANDARD DUTY AIR COMMAND KITS 2930 & 2933
4
AIR ACCESSORY MOUNTING KIT CANNOT BE USED AS A GROUNDING LOCATION FOR THE AIR COMPRESSOR
BACKING
PLATE x 2
3/8"-16 HEX
HEAD FLANGE
NYLOCK NUT
x 4
3/8”-16 X 6”
CARRIAGE BOLT x 4
1

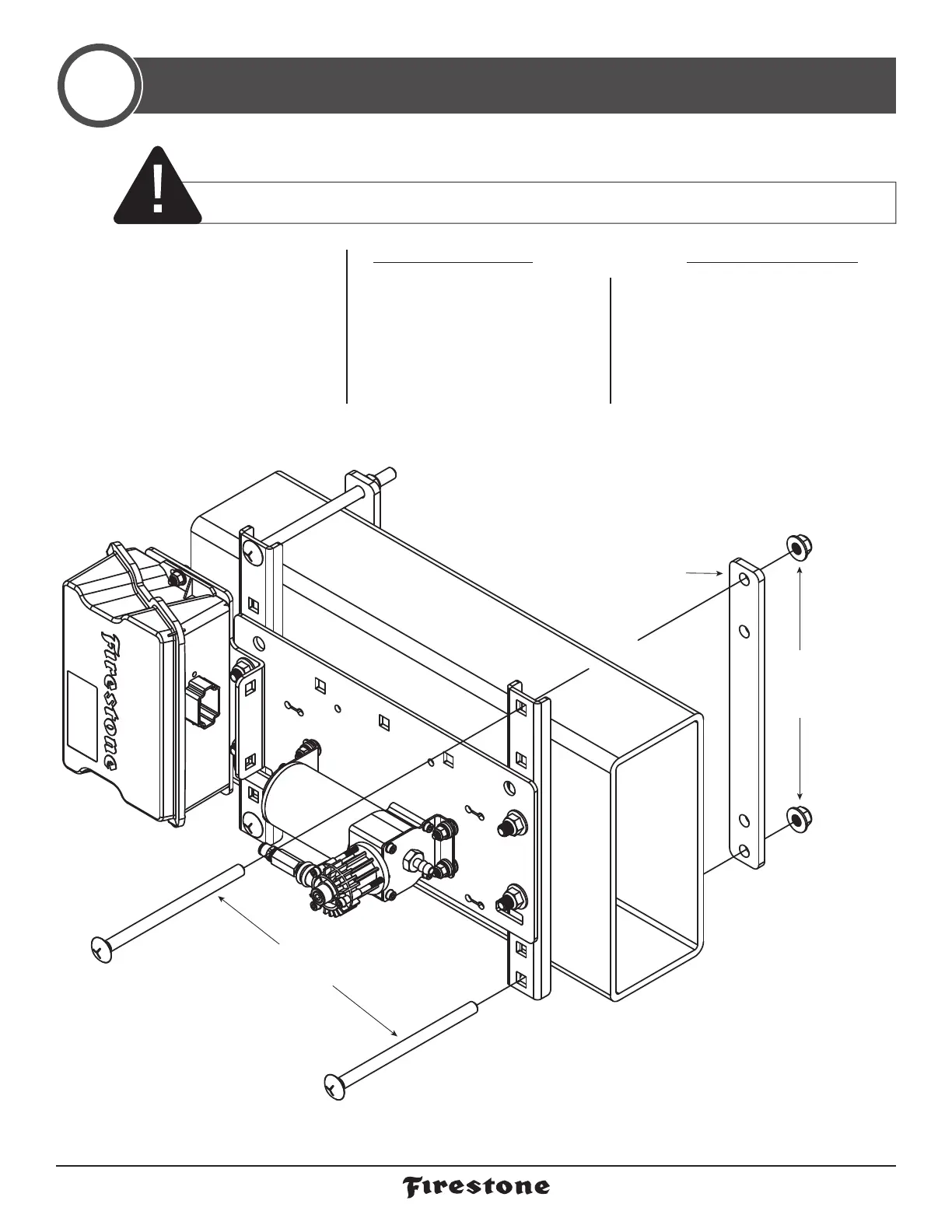

Install the compressor
bracket assembly to the
vehicles frame rail, using
whichever carriage bolt
holes are closest to the top
and bottom of the vehicle
frame as was determined
in Step 1.
2
Follow Air Command Kit
instructions to run air line
from the Air Compressor
to the ECU.
3
Continue following the Air
Command Kit instructions
to connect all air tubing
and electrical wiring.
RECOMMENDED
