AIRMAC T20D - Honda Petrol Compressor Components

Instruction Manual
Airmac Air Compressors
2019-06-07
© Glenco Air & Power Pty Ltd
9
Item
Description
Item
Description
1
Compressor Pump
12
Wheel
2
Air Filter
13
Handle
3
Crankcase Breather
14
Non-Return Valve
4
Oil Fill Cap
15
Easy-Start Valve
5
Oil Drain Plug
16
Head Unloading Line
6
Oil Level Sight Glass
17
Safety Valve (Behind Item 21)
7
Petrol Engine
18
Drain Valve
8
Air Receiver Tank
19
Filter-Regulator
9
Air Receiver Tank Nameplate
20
Discharge Outlet (Behind Item 19)
10
V-Belt Drive Guard
21
Air Receiver Pressure Gauge
11
Wheel Mounting Bracket
22
Pilot Valve

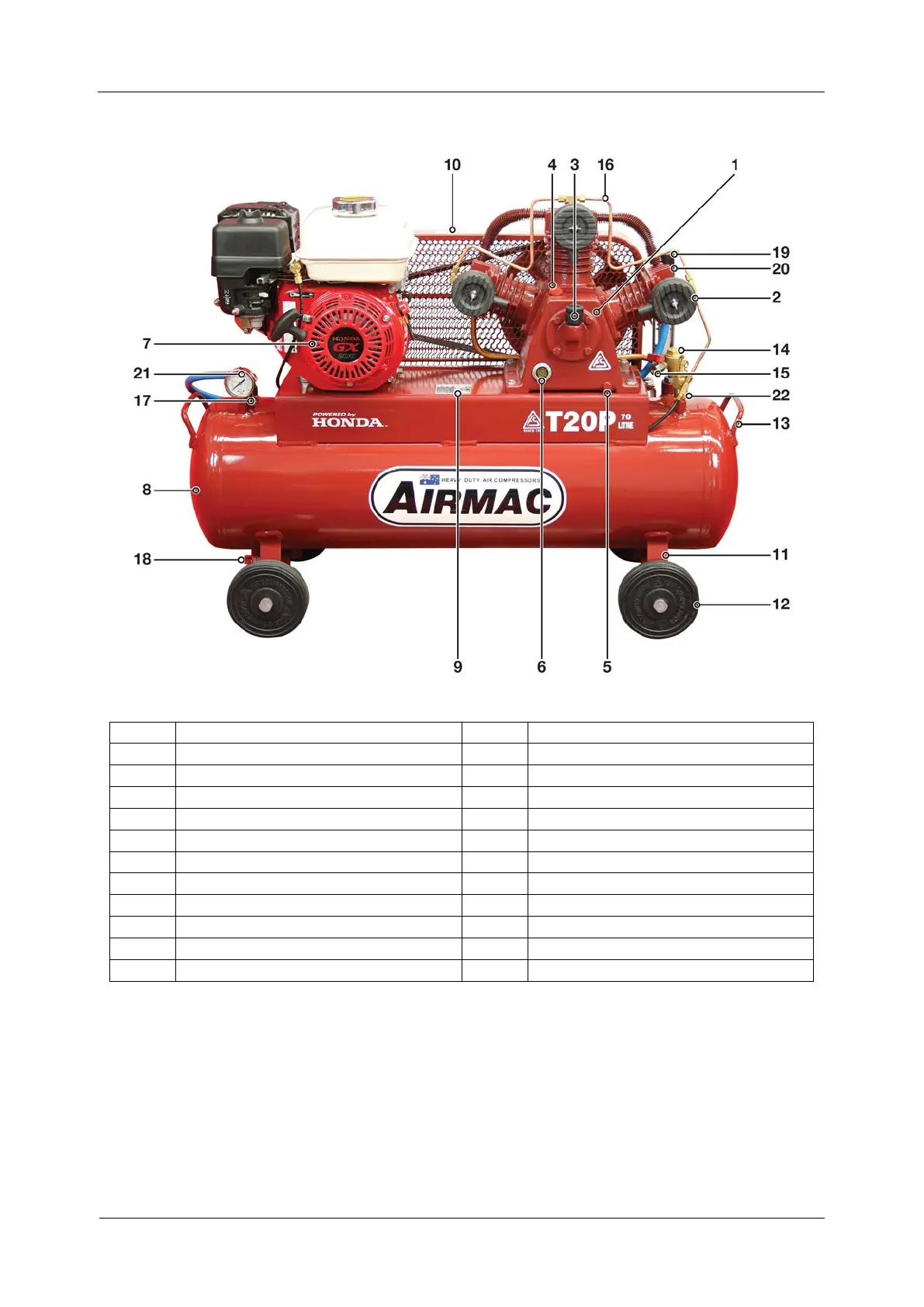

Figure 2-6 Honda Petrol Air Compressor
