AirTech S Series - Attached Drawings

12
As for electric troubleshooting and maintenance, it is recommended to be performed only
by a qualified technician according to the attached Electrical Diagram.
BIT
CODE
NAME
DESCRIPTION
VS-840K HS-840
VS-
840K-U
HS-
840-U
VS-
1300L
HS-
1300
VS-
1300L-U
HS-
1300-U
A Controller
SAT07-1CV SAT07-1AV SAT07-2CV SAT07-2AV
FU Fuse
φ5×20， F3A L 250V×②
M1-2 Fan
ATF230×① ATF230×②
L1-2 Ballast
20W×① 20W×② 30W×① 30W×②
V1-2 Starter
4-40W×
①
4-40W×②
4-65W×
②
4-65W×
①
4-65W×②
EL1-2 Fluo. Light
18W×① 18W×② 18W×① 30W×① 30W×
②
30W×①
UV1 UV Light
20W×① 30W×①
SA1 Boat Switch
R221-22C-18A×①
XP
Elec. Wire
with Plug
RVV-3×0.75×①

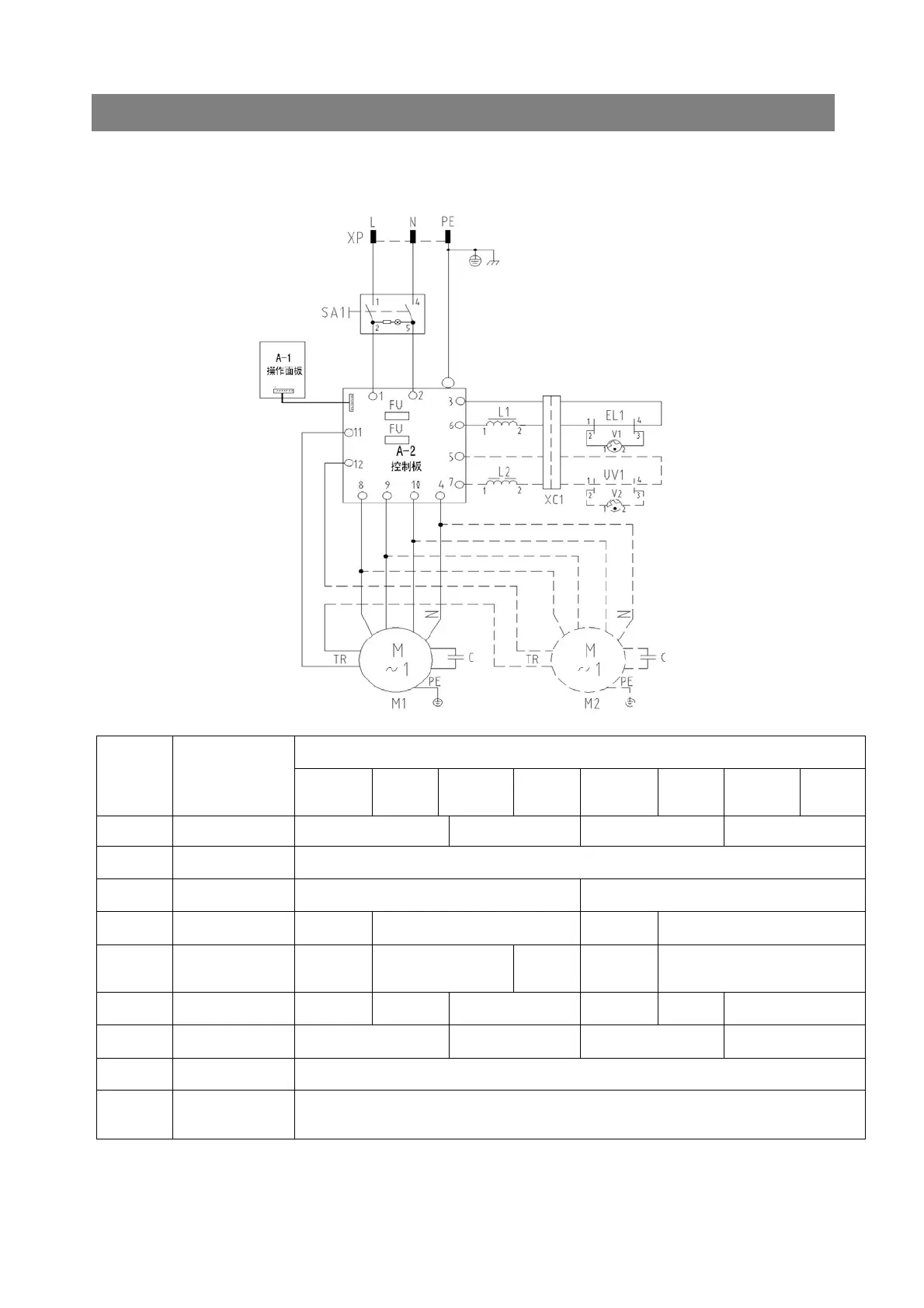

FIG.7： ELECTRICAL DIAGRAM OF S SERIES CLEAN BENCH
11. ATTACHED DRAWINGS
