Voice Processor 2x

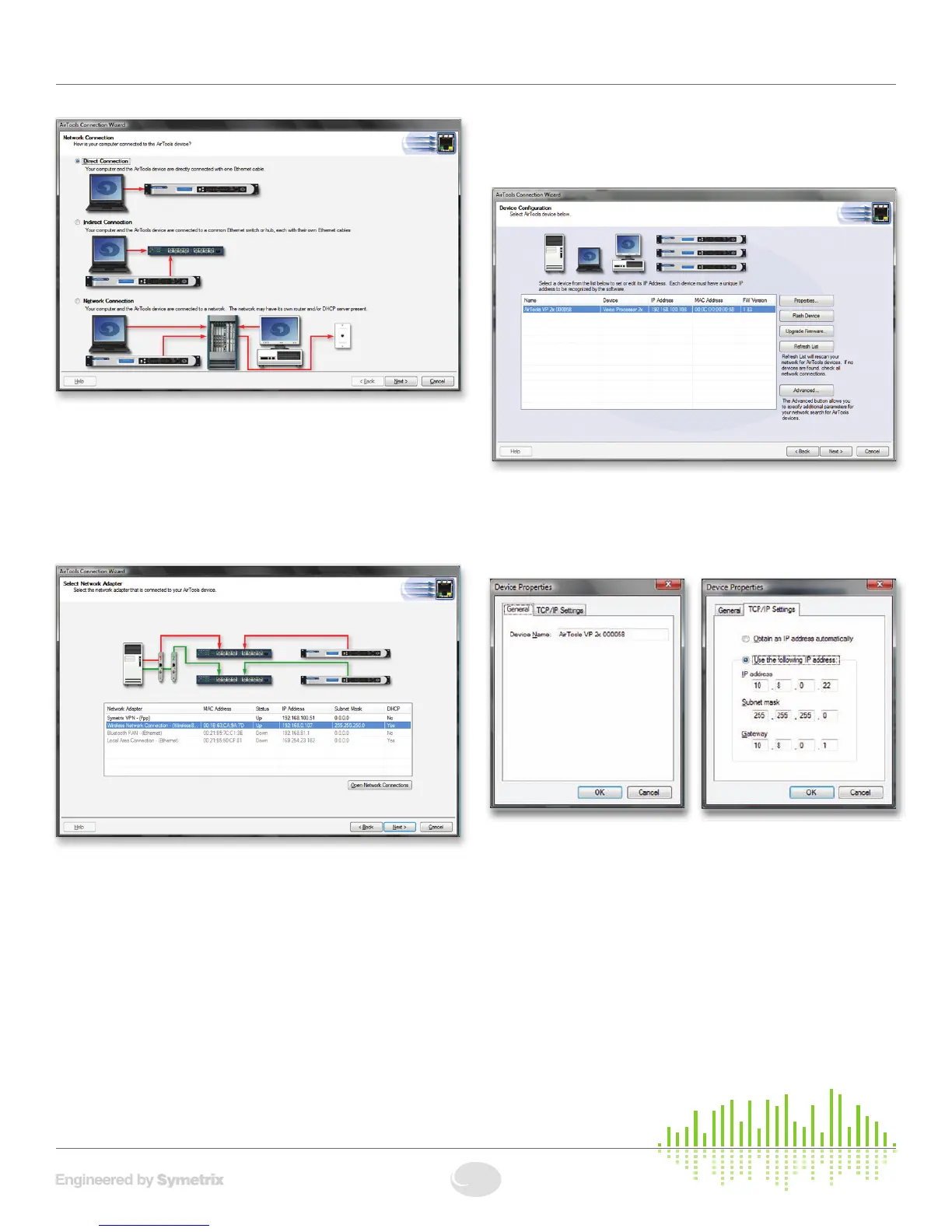

The Connection Wizard opens with the following screen:
Select the option that best represents your network
topologyandthenclicktheNextbutton.(RefertoNetwork
Configuration for further help.)
IntheeventthatyourcomputerhasmultipleNetwork
InterfacesCards(NICs),thefollowingscreenwillallowyouto
selectthenetworkyouwishtosearchfor2xdevices.Note
thatonlyvalidNICswillbeselectable(thosewithanetwork
connection and valid IP address).
SelecttheNICyouwishtouseandthenclicktheNext
button.
The following screen displays a list of 2x devices found on
your network. At the very least, you can select the device
youwishtoconnecttoandclicktheNextbutton.However,
there are a few more functions on this screen worth
mentioning...
Properties:
The (device) Properties dialog allows you to give a device a
unique name to help identify it. It also allows you to switch
the unit between dynamic (DHCP) IP addressing and static
IP addressing.
Flash Device:
ClickingtheFlashDevicebuttonwillcauseallLEDsonthe
front of the device to flash for a short time. This can be
helpful to distinguish units which have the same or similar
names.
Upgrade Firmware:
The 2x Firmware must be matched with the version of the
Room Combine Application you are using. The correct
firmware for the Application is always distributed with
the Application and installed on your hard drive by the
Application’s installer. If there is ever any doubt, follow the
instructions in the Upgrade Firmware topic to check your
firmware version or to upgrade the firmware.
Connection Wizard
