CONTROL SYSTEM
SM DLSDCI 3-A.1 GB

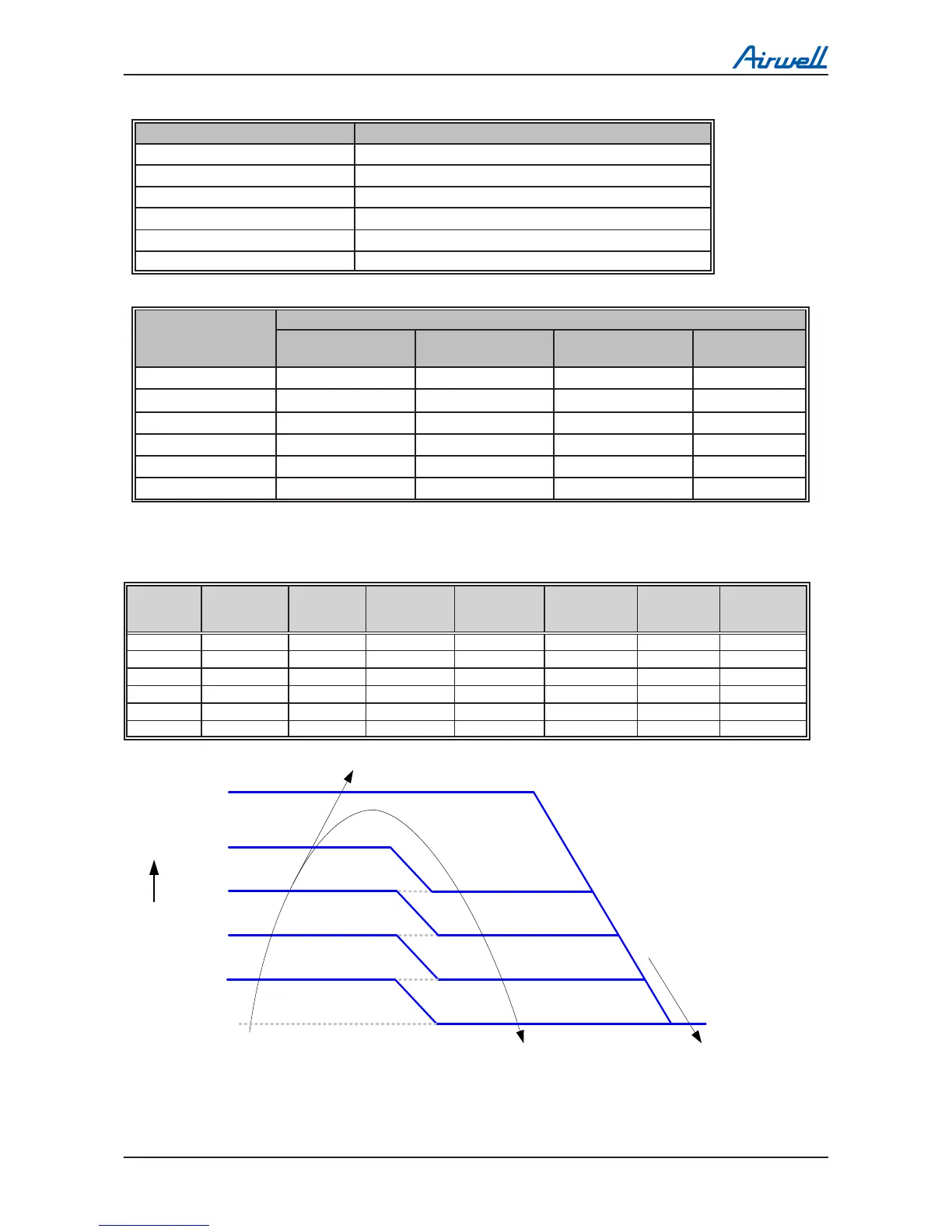

Protection Status General Description
Normal No protection
Hz Up Compressor frequency is allowed to increase slowly
Stop Rise Compressor frequency is not allowed to rise
Hz Down 1 Compressor frequency is reduce
Hz Down 2 Compressor frequency is reduce
Stop Compressor Compressor is stopped
Each protection has protection status. The following are the possible protection status:
Protection Status
Active In?
Cool/Heat Deicer Technician/TPT/
Installation
ITU
Normal
√ √ √ √
Hz Up
√
x x x
Stop Rise
√
x x x
Hz Down 1
√
x x x
Hz Down 2
√
x x x
Stop compressor
√ √ √ √
Operation logic of all thermodynamic protections is the same. The controlled input (CTT, HST, ACC, DCC,OMT) is
controlled by changing the protection level using the fuzzy logic algorithm according the input level and the change rate.
The following table summarizes the basic levels of each protection:
Protection
level
Compressor
Overheat
Heat Sink
Overheat
Compressor
AC
Overcurrent
Compressor
DC
Overcurrent
Outdoor Coil
Overheat
Indoor Coil
Overheat
Indoor Coil
Freeze
SC CTTOH5 HSTOH5 CCROC3 DCROC3 OMTOH5 ICTOH5 ICTDEF5
D2 CTTOH4 HSTOH4 OMTOH4 ICTOH4 ICTDEF4
D1 CTTOH3 HSTOH3 CCROC2 DCROC2 OMTOH3 ICTOH3 ICTDEF3
SR CTTOH2 HSTOH2 CCROC1 DCROC1 OMTOH2 ICTOH2 ICTDEF2
Hz Up CTTOH1 HSTOH1 CCROC0 CCROC0 OMTOH1 ICTOH1 ICTDEF1
Normal CTTOH0 HSTOH0 OMTOH0 ICTOH0 ICTDEF0
Hz Up
Stop-Rise
Stop Compressor
Hz Down1
CTT
+
CTTOH1
Hz Down2
CTTOH2
CTTOH3
CTTOH4
CTTOH5
Normal
CTTOH0
