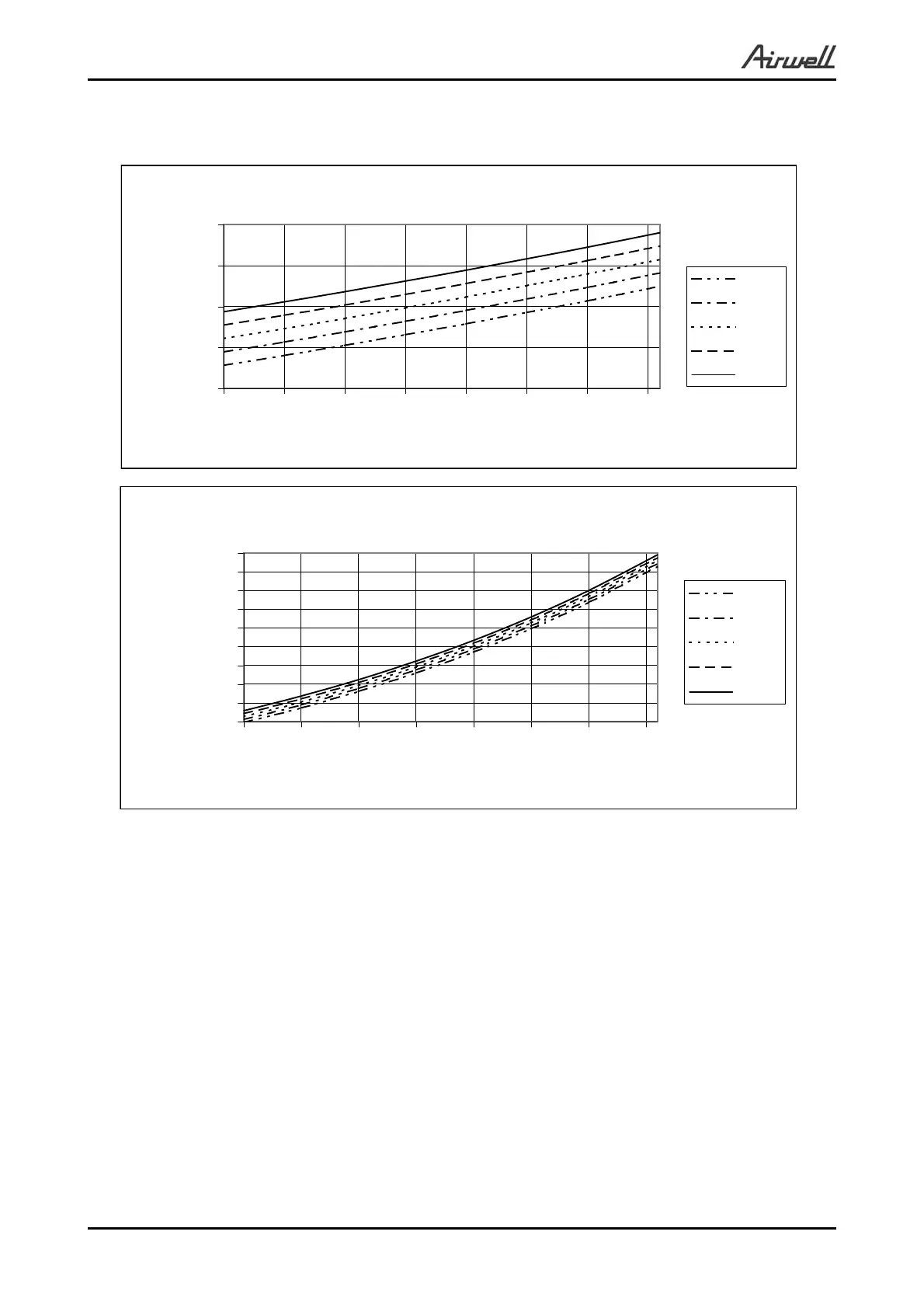

PERFORMANCE DA
T
A
& PRESSURE CURVES
SM PNXGC 1-A.1 GB
5.9.5
Model: PNX 24 / GC 24 Z DCI Cooling
— T
est Mode
.
Discharge Pressure vs. Outdoor Temperature
1500
1750
2000
2250
2500
2750
3000
3250
3500
3750
10
15
20
25
30
35
40
45
Outdoor DB Temperature
Discharge Pressure [kPa]
22/15
24/17
27/19
29/21
32/23
Indoor
DB/WB
Suction Pressure vs. Outdoor Temperature
600
700
800
900
1000
10
15
20
25
30
35
40
45
Outdoor DB Temperature
Suction Pressure [kPa]
22/15
24/17
27/19
29/21
32/23
Indoor
DB/WB
