CONTROL SYSTEM
SM PNXDCI 1-A.1 GB
Target frequency limits as a function of outdoor air temperature )OAT(:
OAT Range Cool mode limits Heat mode limits
OAT No limit<6
6≤OAT<15
MaxFreqAsOAT1H
15 ≤ OAT < 24
MaxFreqAsOATC
24 ≤ OAT No limit
MaxFreqAsOAT2H
11.1.4 Frequency Changes Control
Frequency change rate is 1 Hz/sec.

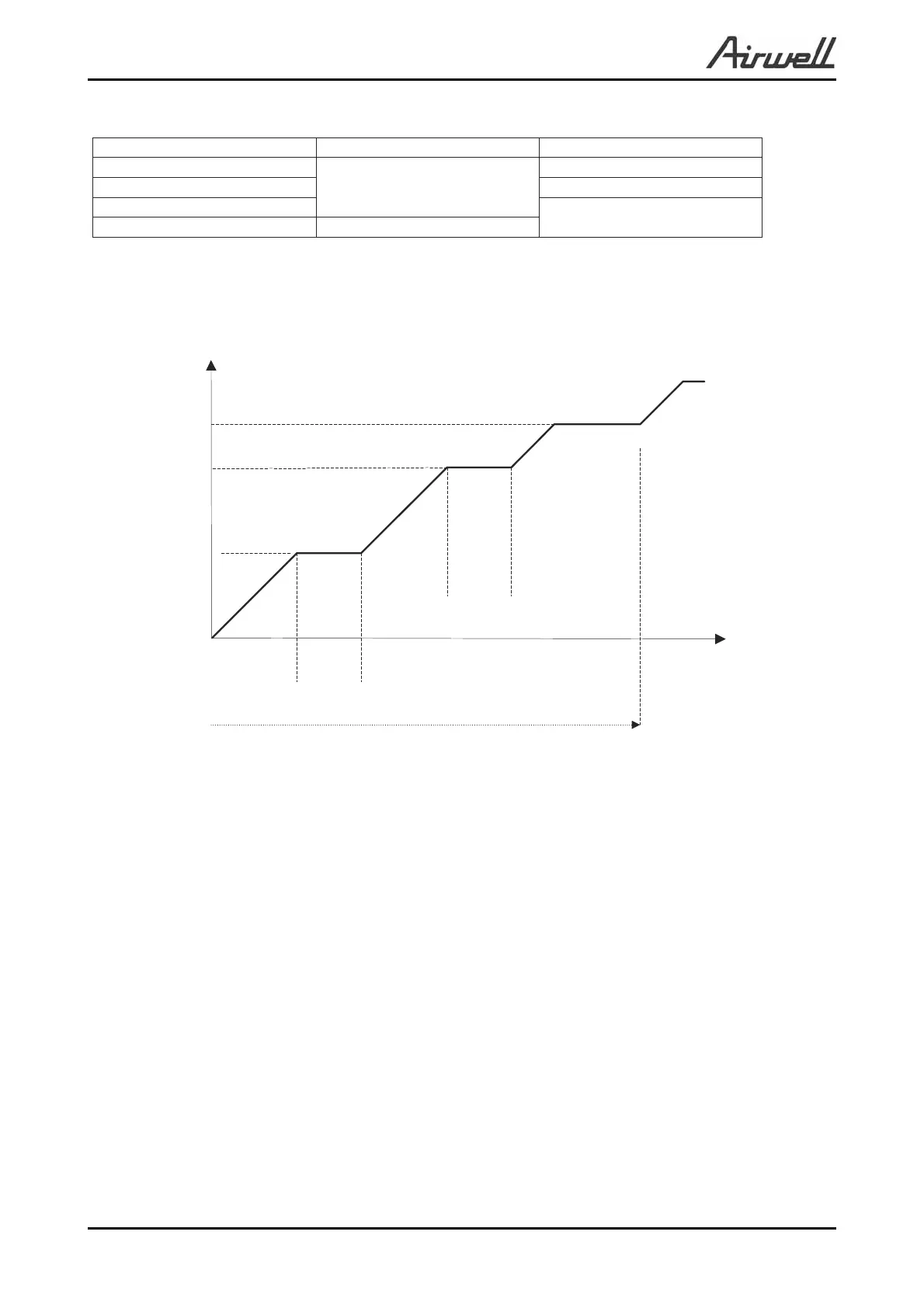

11.1.5 Compressor Starting Control
Frequency
Time
Min 10 Minutes
1
Minute
Step 1
Step 3
1
Minute
Step 2
11.1.6 Minimum On and Off Time
3 minutes.
11.1.7 Indoor Fan Control
10 Indoor fan speeds are determined for each model. 5 speeds for cool/dry/fan modes and 5
speeds for heat mode.
When user sets the indoor fan speed to a fixed speed )Low/ Medium/ High(, unit will operate
constantly at set speed.
When Auto Fan is selected, indoor unit controller can operate in all speeds. The actual speed is set
according to the cool/heat load.
11.1.7.1 Turbo Speed
The Turbo speed is activated during the first 30 minutes of unit operation when auto fan speed is
selected and under the following conditions:
Difference between set point and actual room temperature is bigger then 3 degrees.
Room temperature 22 for cooling, or 25 for heating.><
