TRIO
High THigh T
High THigh T
High T
echech
echech
ech

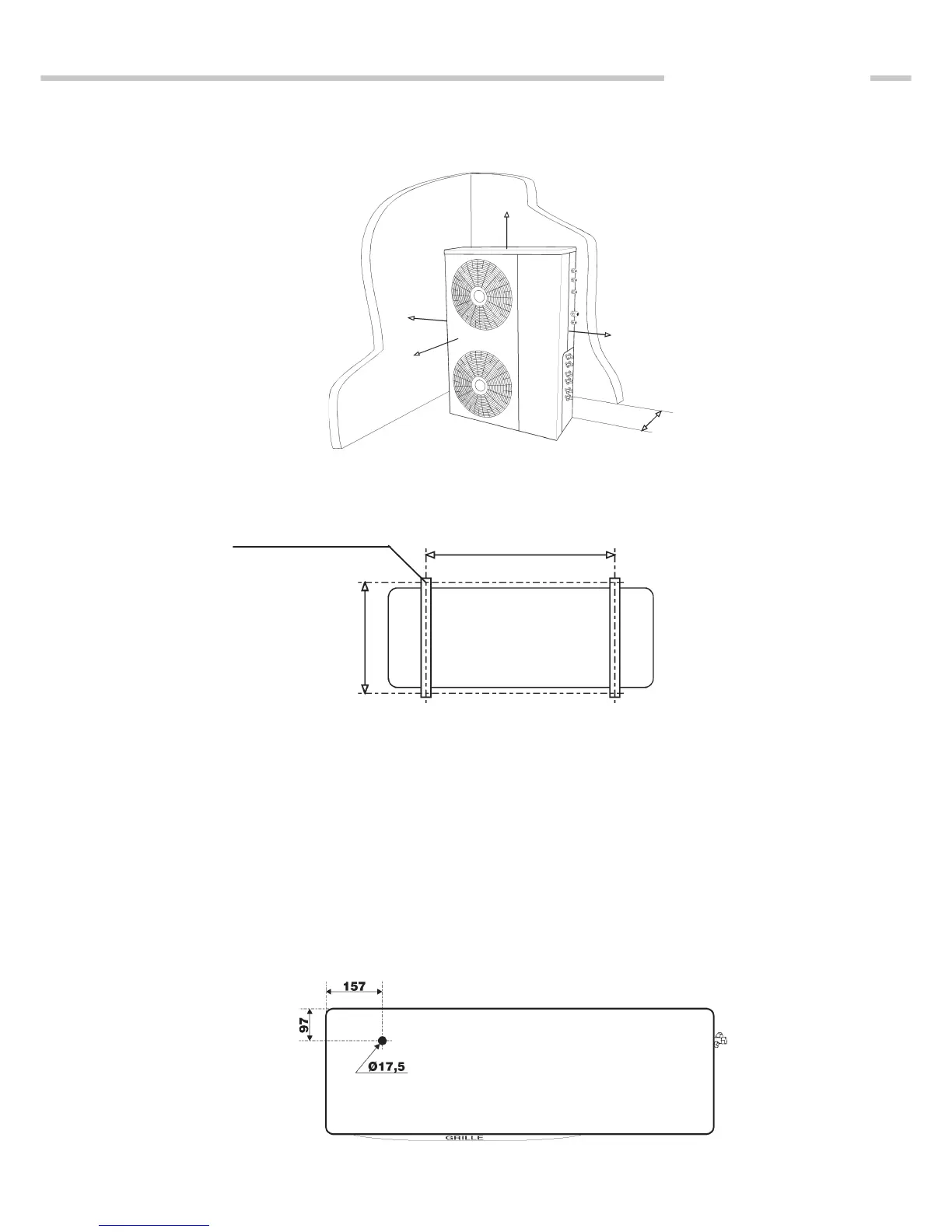

TRIO INSTALLATION
Minimum free clearances:
GROUND AGROUND A
GROUND AGROUND A
GROUND A
TTTT
TTTT
TT
AA
AA
A
CHMENTCHMENT
CHMENTCHMENT
CHMENT
On concrete slab with rubber pads supplied or PAULSTRA 521571 type vibration absorption
pads.
100 mm
500 mm
600 mm
200 mm
300 mm
705 mm
357 mm
Oblongs 13 x 10 (H8 screws)
CONDENSACONDENSA
CONDENSACONDENSA
CONDENSA
TE EVTE EV
TE EVTE EV
TE EV
AA
AA
A
CUCU
CUCU
CU
AA
AA
A
TION – DRAIN POSITIONINGTION – DRAIN POSITIONING
TION – DRAIN POSITIONINGTION – DRAIN POSITIONING
TION – DRAIN POSITIONING
To ensure effective condensate drainage, the drain pipe should be routed on a downward
slope of 2.5 cm/metre.
Adequate heat insulation for the condensate drain pipe should be provided for harsh
climates, or sub-zero temperatures.
Fit the drain pipe and its seal (supplied) if required, BEFORE attaching the unit to the ground.
For Heat pump models, in locations where the outdoors temperature may fall below 1°C, a
condensate anti-freezing protection device must be provided (a heated wrap for example).
When installing the unit in harsh climates, sub-zero temperatures, snow, or humidity it is
recommended that it is raised about 10 cm above ground level.
