Chapter 1 – Introduction
Overview
The Hi5-Plus converts 3G, HD, and SD-SDI to HDMI for driving HDMI monitors.
Embedded SDI audio is supported in the HDMI output allowing a convenient
single cable audio/video connection. The Hi5-Plus provides 2 RCA style audio
outputs for separate audio monitoring if needed.
Features
• SDI to HDMI (see "Hi5-Plus Tech Specs" on page 18 for a complete list of
supported inputs).
• Full HDMI support including 10-bit video and 8 channels of embedded audio
• Additional 2 Channel RCA jack audio output (selectable channel pairs)
• HDMI cable supplied
• Uses universal input +5V power supply AJA model DWP-U-R1 (included)
• USB configuration port
• Five year warranty
Block Diagram

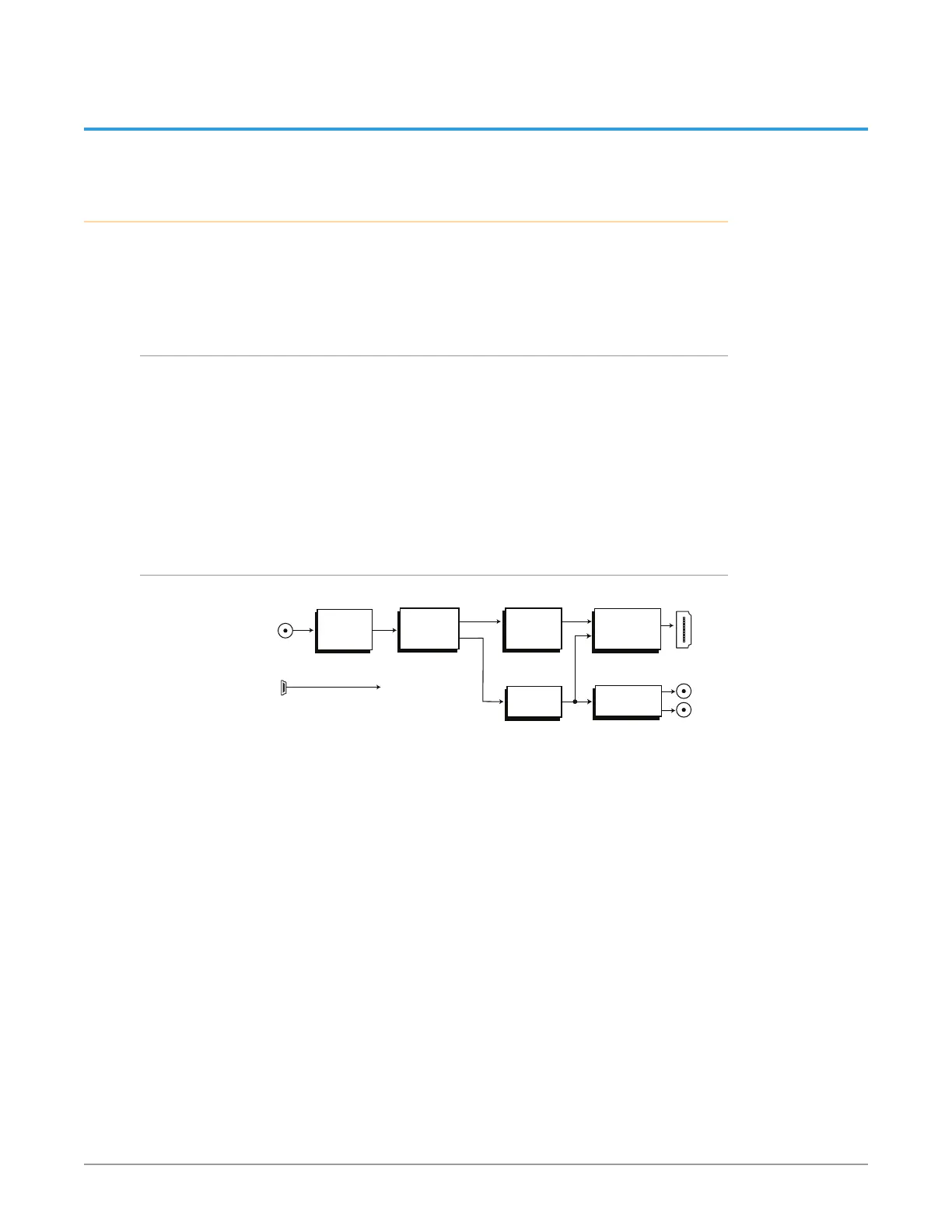

Figure 1. Hi5-Plus Converter, Simplified Block Diagram
SDI
Input
Audio
D/A
Audio
Delay
SDI
Equalizer
psf to p
Conversion
Video
Audio
HDMI
Transmitter
2-Channel
Analog Audio
Monitor Output
HDMI Output
with Embedded
Audio
USB Port
(connec
t to
PC or Mac)
MiniCong Control
SDI
Processing
