OG-UDC 3G-SDI Up, Down, Cross-Converter v1.0 19 www.aja.com

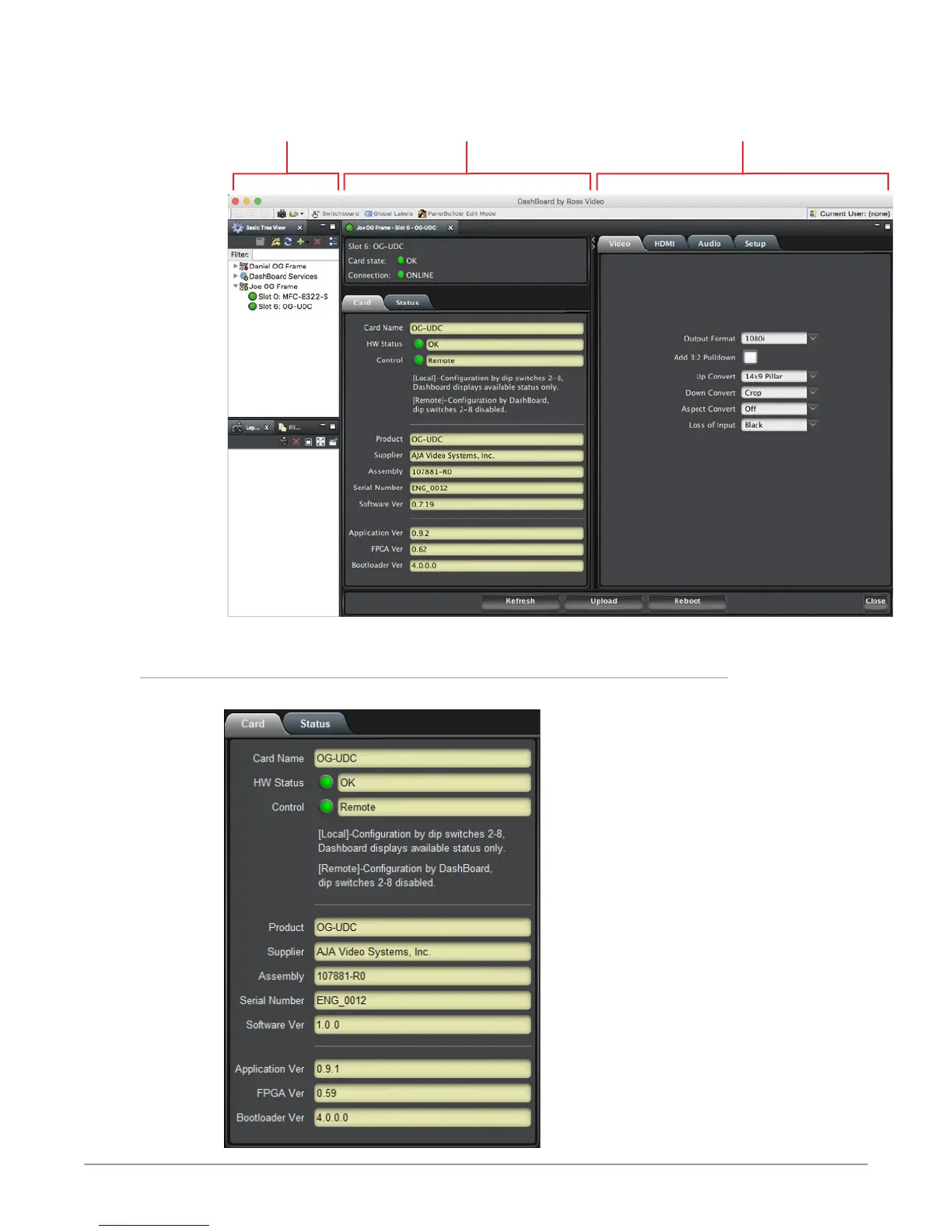

Figure 14. Main Sections of the DashBoard User Interface
Parameter
Controls
Card Information
and Status
Basic Tree View of
Frames and Cards
Card Tab Screen
Figure 15. OG-UDC Card Tab Screen in DashBoard
