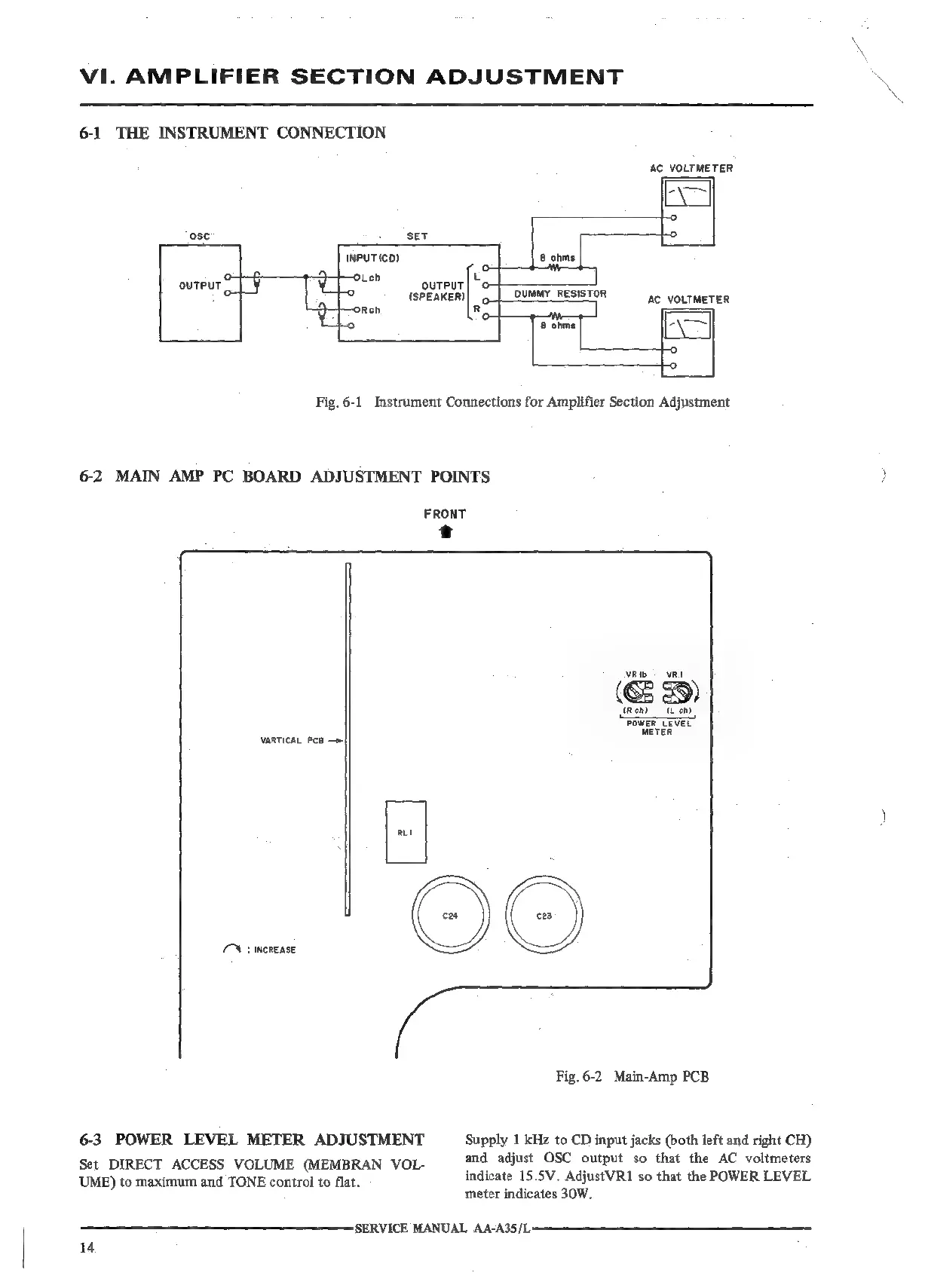

Vi. AMPLIFIER SECTION ADJUSTMENT
6-1 THE INSTRUMENT CONNECTION
AC VOLTMETER
INPUT(CD)
DUMMY. RES! AC VOLTMETER
Fig. 6-1 Instrument Connections for Amplifier Section Adjustment
6-2. MAIN AMP PC BOARD ADJUSTMENT POINTS
FRONT
t
VARTICAL Pca —>.
(CN INCREASE
Fig. 6-2 Main-Amp PCB
6-3 POWER LEVEL METER ADJUSTMENT Supply 1 kHz to CD input jacks (both left and right CH)
Set DIRECT ACCESS VOLUME (MEMBRAN VOL- and adjust OSC output so that the AC voltmeters
UME) to maximum and TONE control to flat. indicate 15.5V. AdjustVR1 so that the POWER LEVEL
meter indicates 30W.
SERVICE MANUAL AA-A35/L:
14
