Akai AA-A35 - Specifications

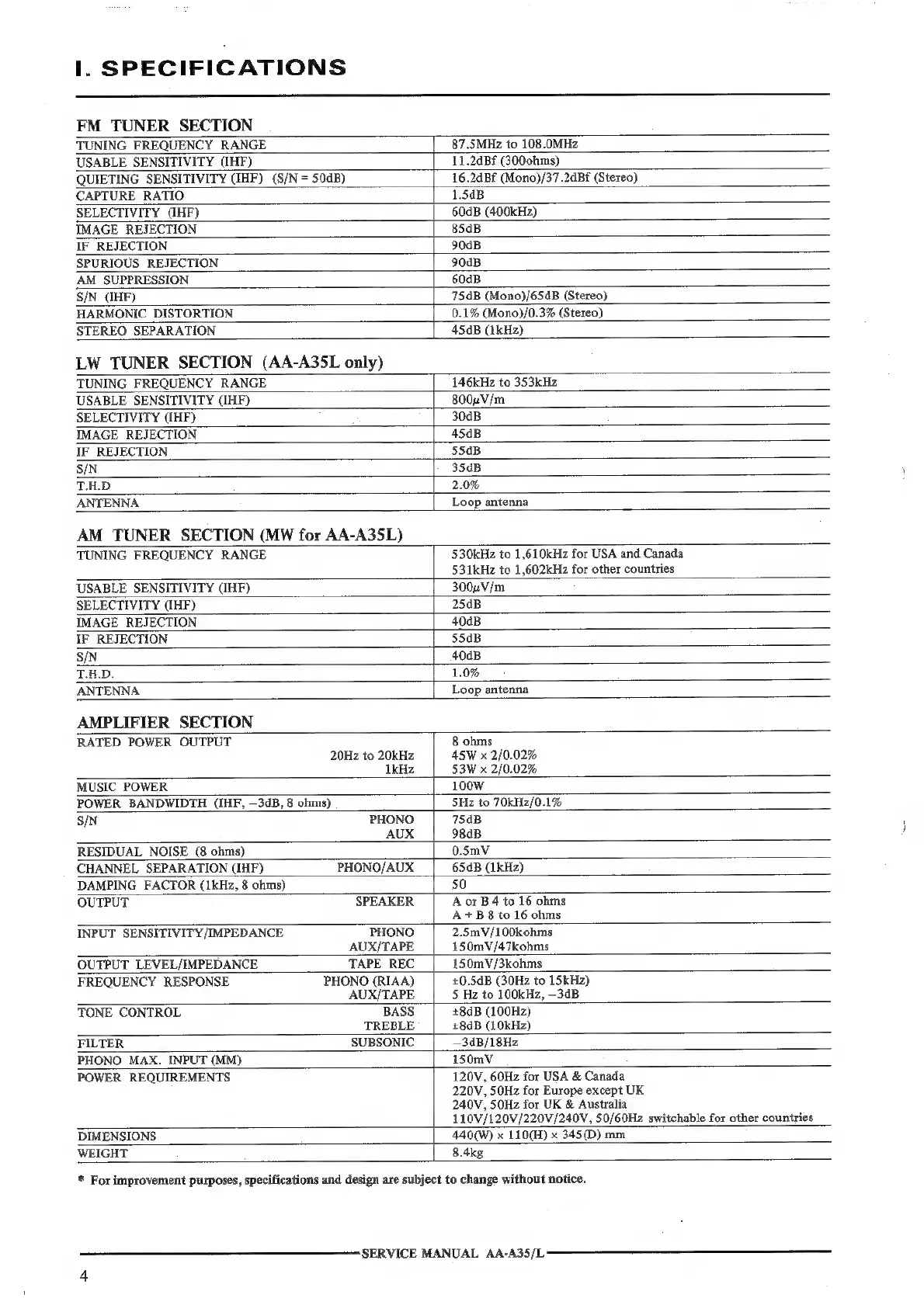

Il. SPECIFICATIONS
FM TUNER SECTION
TUNING FREQUENCY RANGE
87.5MHz to 108.0MHz
USABLE SENSITIVITY (IHF)
11.2dBf (300ohms)
QUIETING SENSITIVITY (IHF) (S/N = 50dB)
16.2dBf (Mono)/37.2dBf (Stereo)
CAPTURE RATIO 1,5dB
SELECTIVITY (HF) 60dB (400kHz)
IMAGE REJECTION 85dB
IF_REJECTION 90dB
SPURIOUS REJECTION 90dB
AM SUPPRESSION 60dB
S/N_(HF)
75dB (Mono)/654B (Stereo)
HARMONIC DISTORTION
0.1% (Mono)/0.3% (Stereo)
STEREO SEPARATION
45dB (1kHz)
LW TUNER SECTION (AA-A35L only)
TUNING FREQUENCY RANGE
146kHz to 353kHz
USABLE SENSITIVITY (IHF) 800uV/m
SELECTIVITY (IHF) 30dB
IMAGE REJECTION 45aB
IF_REJECTION SSdB
S/N 35dB
T.H.D 2.0%
ANTENNA Loop antenna
AM TUNER SECTION (MW for AA-A35L)
TUNING FREQUENCY RANGE
530kHz to 1,610kHz for USA and Canada
531kHz to 1,602kHz for other countries
USABLE SENSITIVITY (IHF) 300uV/m
SELECTIVITY (IHF) 25dB
IMAGE REJECTION 40dB
IF REJECTION 55dB
SiN 404B
T.H.D. 1.0%
ANTENNA Loop antenna
AMPLIFIER SECTION
RATED POWER OUTPUT
20Hz to 20kHz
8 ohms
ASW x 2/0.02%
1kHz 53W x 2/0.02%
MUSIC POWER 100W
POWER BANDWIDTH (IHF, —3dB, 8 ohms) SHz to 70kHz/0.1%
S/N PHONO 75dB
AUX 98dB
RESIDUAL NOISE (8 ohms) 0.5mV
CHANNEL SEPARATION (IHF) PHONO/AUX 65dB (1kHz)
DAMPING FACTOR (1kHz, 8 ohms) 50
OUTPUT SPEAKER A or B 4 to 16 ohms
A+B 8 to 16 ohms
INPUT SENSITIVITY/IMPEDANCE PHONO 2.5mV/100kohms
AUX/TAPE 150mV/47kohms
OUTPUT LEVEL/IMPEDANCE TAPE REC 150mV/3kohms
FREQUENCY RESPONSE PHONO (RIAA) +0.5dB (30Hz to 15kHz)
AUX/TAPE 5 Hz to 100kHz, ~3dB
TONE CONTROL BASS +8dB (100Hz)
TREBLE +8dB (10kHz)
FILTER SUBSONIC —3dB/18Hz
PHONO MAX. INPUT (MM) 150mV
POWER REQUIREMENTS
120V, 60Hz for USA & Canada
220V, 50Hz for Europe except UK
240V, 50Hz for UK & Australia
110V/120V/220V/240V, 50/60Hz switchable for other countries
DIMENSIONS
440(W) x 110(H) x 345(D) mm
WEIGHT
8.4kg
* For improvement purposes, specifications and design are subject to change without notice.
‘SERVICE MANUAL AA-A35/L:
