FINAL
ASSEMBLY
BLOCK
——_—
When
ordering
parts,
please
quote
Parts
Number,
Description
and
Model
Number.
56
14
CO
STR
PALETTES
EE
IRAE
SE
SRT
IN
EMA
AFT
2
TTT

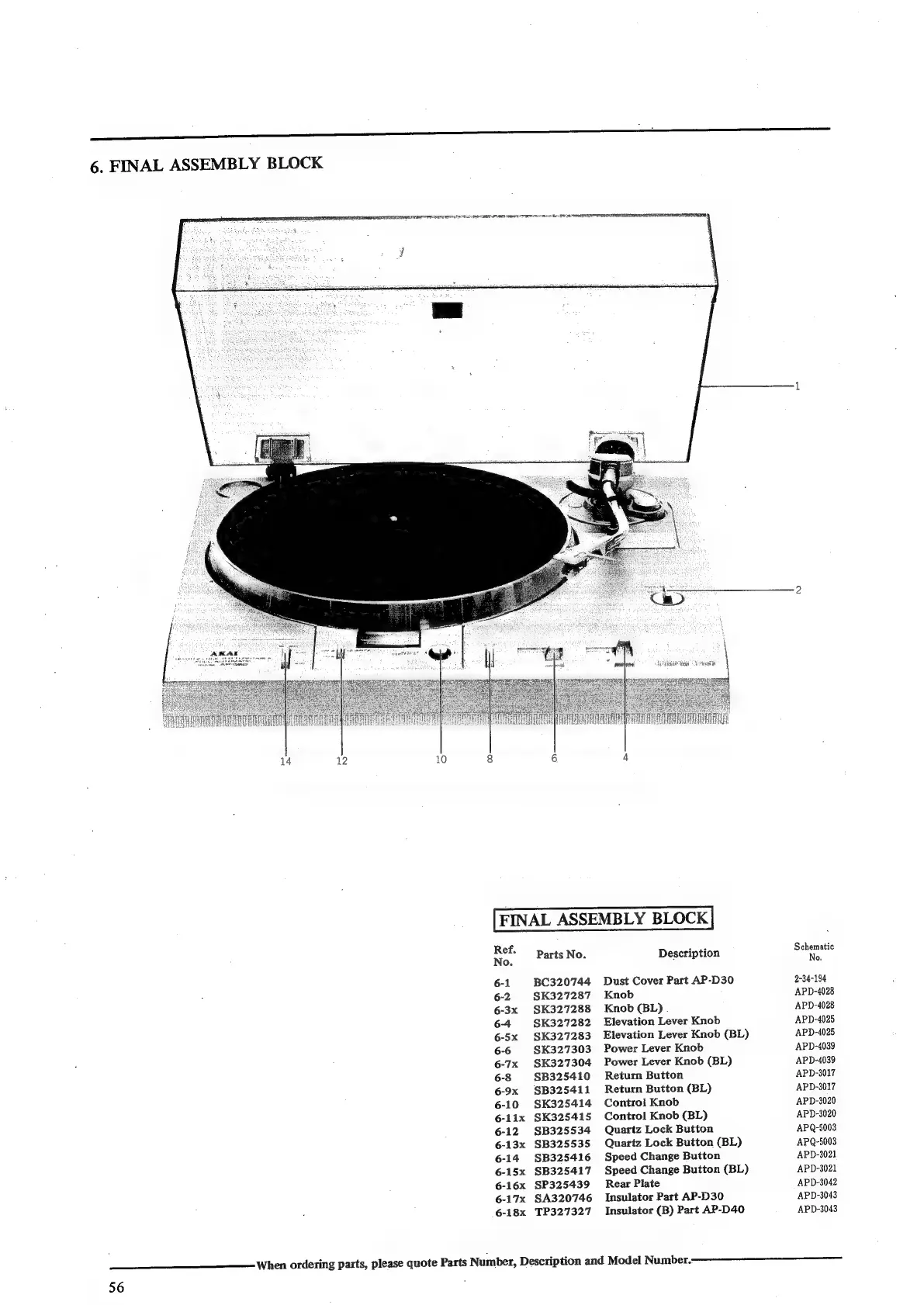

FINAL ASSEMBLY BLOCK
Ref.
No.
6-1
6-2
6-3x
6-4
6-5x
6-6
6-7X
6-8
6-9X
6-10
6-11x
6-12
6-13x
6-14
6-15x
6-16x
6-17x
6-18x
Parts No.
BC320744
$K327287
$K327288
$K327282
SK327283
$K327303
$K327304
$B325410
$B325411
SK325414
$K325415
SB325534
S$B325535
$B325416
SB325417
SP325439
SA320746
TP327327
Description
Dust Cover Part AP-D30
Knob
Knob (BL) .
Elevation Lever Knob
Elevation Lever Knob (BL)
Power Lever Knob
Power Lever Knob (BL)
Return Button
Return Button (BL)
Controi Knob
Control Knob (BL)
Quartz Lock Button
Quartz Lock Button (BL)
Speed Change Button
Speed Change Button (BL)
Rear Plate
Insulator Part AP-D30
Insulator (B) Part AP-D40
Schematic
No.
2-34-194
APD-4028
APD-4028
APD-4025
APD-4025
APD-4039
APD-4039
APD-3017
APD-3017
APD-3020
APD-3020
APQ-5003
APQ-5003
APD-3021
APD-3021
APD-3042
APD-3043
APD-3043
