Akai AP-M7

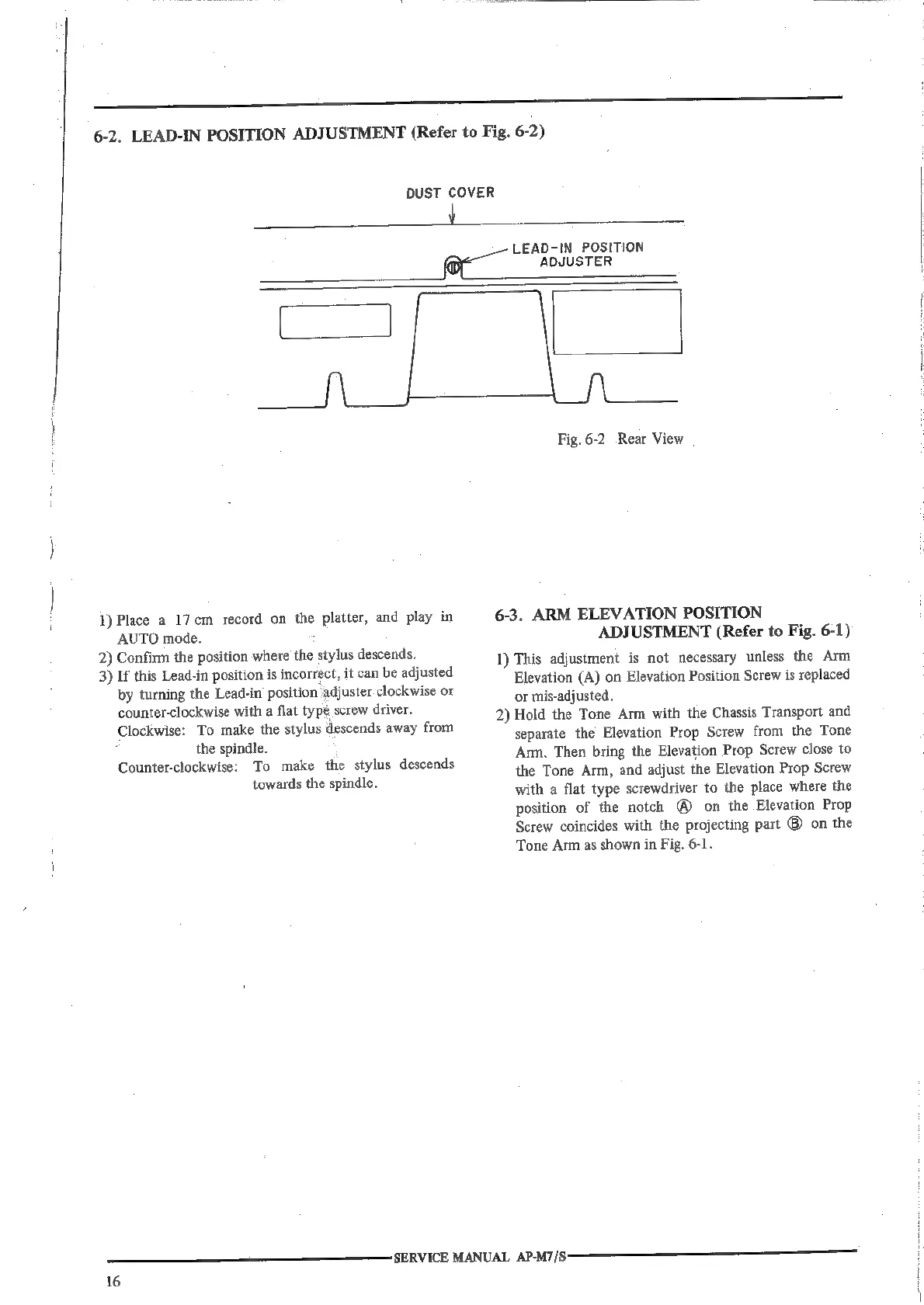

6-2.
LEAD-IN
POSITION
ADJUSTMENT
(Refer
to
Fig.
6-2)
DUST COVER
i
LEAD-IN POSITION
Co ADJUSTER
ates
1)
Place
a
17cm
record
on
the
platter,
and
play
in
AUTO
mode.
2)
Confirm
the
position
where
the
stylus
descends.
3)
If
this
Lead-in
position
is
incorrect,
it
can
be
adjusted
by
turning
the
Lead-in
position
adjuster
clockwise
or
counter-clockwise
with
a
flat
typé
screw
driver.
Clockwise:
To
make
the
stylus
descends
away
from
the spindle.
Counter-clockwise:
To
make
the
stylus
descends
towards the spindle.
Fig, 6-2 Rear View
6-3. ARM ELEVATION POSITION
ADJUSTMENT (Refer to Fig. 6-1)
1)
This
adjustment
is
not
necessary
unless
the
Arm
Elevation
(A)
on
Elevation
Position
Screw
is
replaced
or
mis-adjusted.
2)
Hold
the
Tone
Arm
with
the
Chassis
Transport
and
separate
the
Elevation
Prop
Screw
from
the
Tone
Arm.
Then
bring
the
Elevation
Prop
Screw
close
to
the
Tone
Arm,
and
adjust
the
Elevation
Prop
Screw
with
a
flat
type
screwdriver
to
the
place
where
the
position
of
the
notch
@
on
the
Elevation
Prop
Screw
coincides
with
the
projecting
part
®
on
the
Tone
Arm
as
shown
in
Fig.
6-1.
————
SERVICE
MANUAL
AP-M7/[S
eee
16
