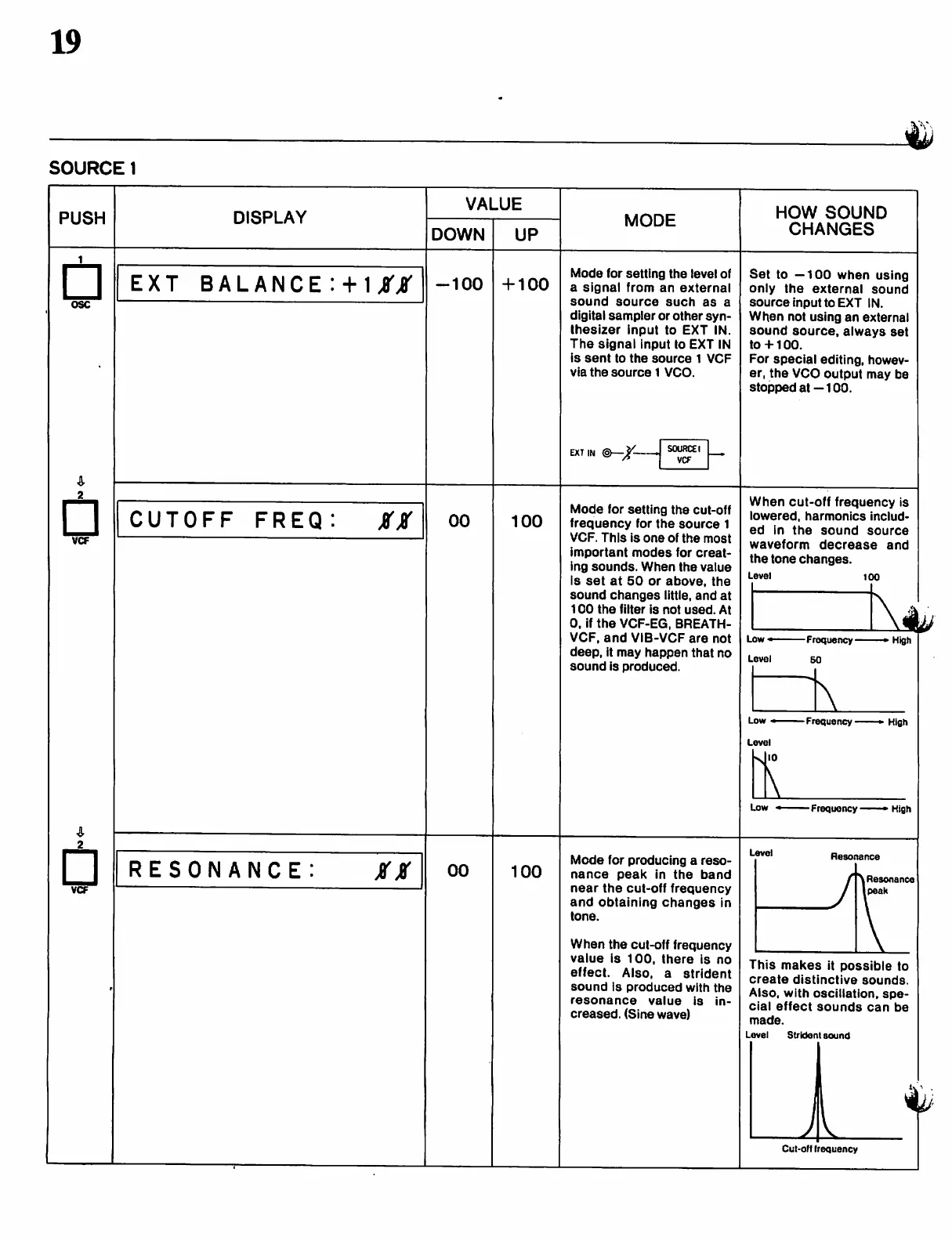

Akai EWV2000 User Manual

19
SOURCE 1
PUSH
DISPLAY
VALUE
DOWN
UP
MODE
HOW SOUND
CHANGES
0
EXT BALANCEI+I*/
-100
+ 100
Mode for setting the level of
a signal from an external
sound source such as a
digital sampler or other syn
thesizer input to EXT IN.
The signal input to EXT IN
is sent to the source 1 VCP
via the source 1 VCO.
Set to —100 when using
only the external sound
source input to EXT IN.
When not using an external
sound source, always set
to+ 100.
For special editing, howev
er, the VCO output may be
stopped at—100.
EXT IN
SOURCEI
VCF
2
0
CUTOFF FREQ
XX
00
100
Mode for setting the cut-off
frequency for the source 1
VCF. This is one of the most
important modes for creat
ing sounds. When the value
is set at 50 or above, the
sound changes little, and at
100 the filter is not used. At
0. if the VCF-EG, BREATH-
VCF, and VIB-VCF are not
deep, it may happen that no
sound is produced.
When cut-off frequency is
lowered, harmonics includ
ed in the sound source
waveform decrease and
the tone changes.
Level ioo
Low
- Frequency •
High
Low
-Frequency
High
4
0
RESONANCE:
XX
oo
100
Mode for producing a reso
nance peak in the band
near the cut-off frequency
and obtaining changes in
tone.
When the cut-off frequency
value is 100, there is no
effect. Also, a strident
sound is produced with the
resonance value is in
creased. (Sine wave)
Level
Resonance
This makes it possible to
create distinctive sounds.
Also, with oscillation, spe
cial effect sounds can be
made.
Level Strident sound
Cut-off Irequency
Scan by Manual Manor
