Akai EWV2000 User Manual

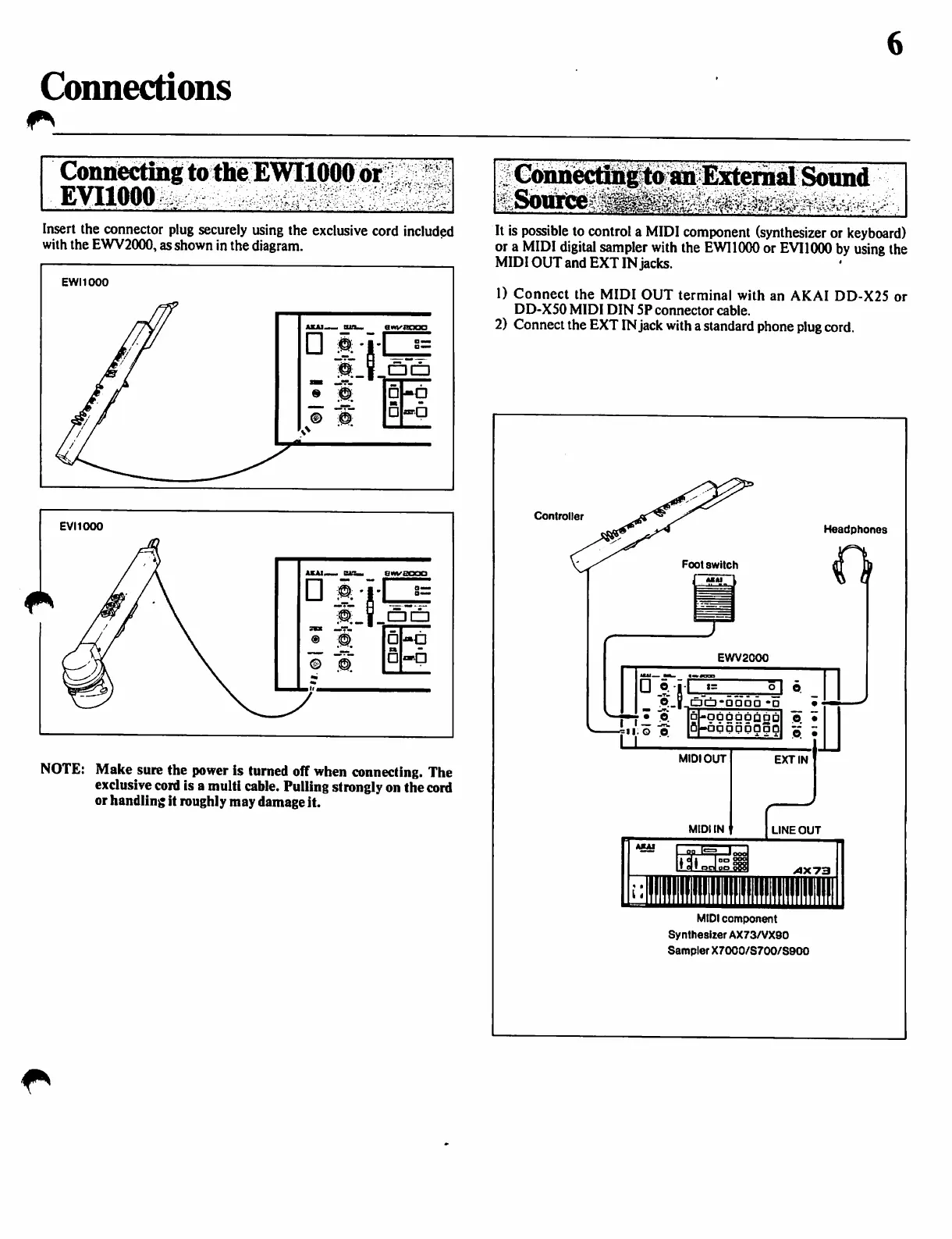

Connections
Connecting to the EWIIOOO or
EVIIOOO
Insert the connector plug securely using the exclusive cord included
with the EWV2000, as shown in the diagram.
EWIIOOO
NOTE: Make sure the power is turned off when connecting. The
exclusive cord is a multi cable. Pulling strongly on the cord
or handling it roughly may damage it.
Connecting to an External Sound
Stot
It is possible to control a MIDI component (synthesizer or keyboard)
or a MIDI digital sampler with the EWIIOOO or EVIIOOO by using the
MIDI OUT and EXT IN jacks.
1) Connect the MIDI OUT terminal with an AKAI DD-X25 or
DD-X50 MIDI DIN 5P connector cable.
2) Connect the EXT IN jack with a standard phone plug cord.
Controller
Headphones
EWV2000
fitl'ODDO *□
---no p
n-obbbbtiaQ
fl-agpapQaO
P. •
P. •
MIDI OUT
MIDI IN
EXT IN
LINE OUT
gfi l1^ lt
MIDI component
Synthesizer AX73/VX90
Sampler X7000/S700/S900
Scan by Manual Manor
http://www.markglinsky.com/ManualManor.html
