37

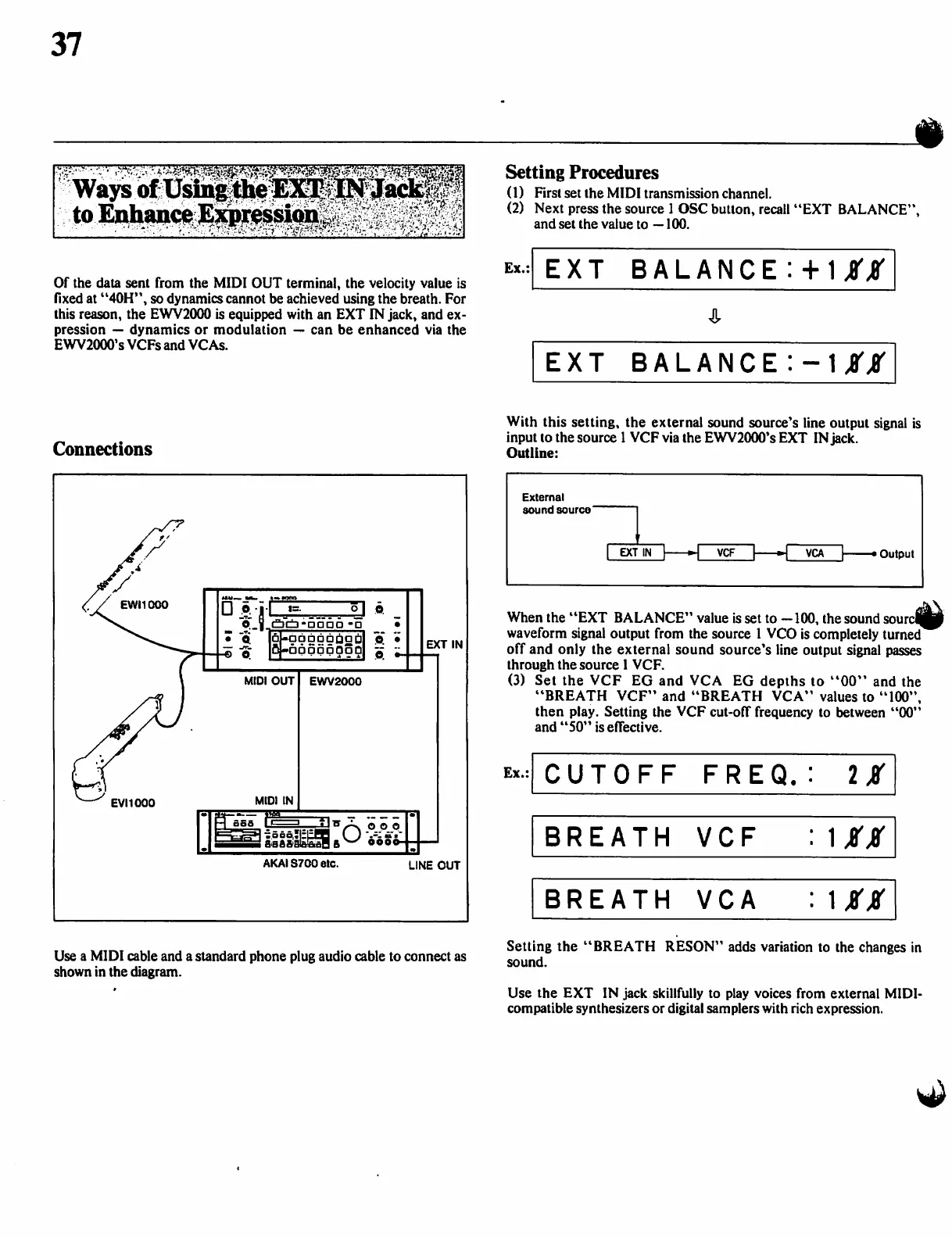

Ways of Using the
Of the data sent from the MIDI OUT terminal, the velocity value is
fixed at "40H", so dynamics cannot be achieved using the breath. For
this reason, the EWV2000 is equipped with an EXT IN jack, and ex
pression — dynamics or modulation — can be enhanced via the
EWV2000's VCFs and VCAs.
&k
Setting Procedures
(1) First set the MIDI transmission channel.
(2) Next press the source 1 OSC button, recall "EXT BALANCE",
and set the value to —100.
Ex.:
Connections
evuooo
LJ ftll _'=-, °J
O ■ iifi *n n n n ■□
- 3.
gbbQQD
fl-aoooDOaD
MIDI OUT EWV2000
MIDI IN
EXT IN
AKAIS7OOetc.
LINE OUT
Use a MIDI cable and a standard phone plug audio cable to connect as
shown in the diagram.
With this setting, the external sound source's line output signal is
input to the source 1 VCF via the EWV2000's EXT IN jack.
Outline:
When the "EXT BALANCE" value is set to -100, the sound soun
waveform signal output from the source 1 VCO is completely turned
off and only the external sound source's line output signal passes
through the source 1 VCF.
(3) Set the VCF EG and VCA EG depths to "00" and the
"BREATH VCF" and "BREATH VCA" values to "100",
then play. Setting the VCF cut-off frequency to between "00"
and "50" is effective.
Ex.:
Setting the "BREATH RESON" adds variation to the changes in
sound.
Use the EXT IN jack skillfully to play voices from external MIDI-
compatible synthesizers or digital samplers with rich expression.
