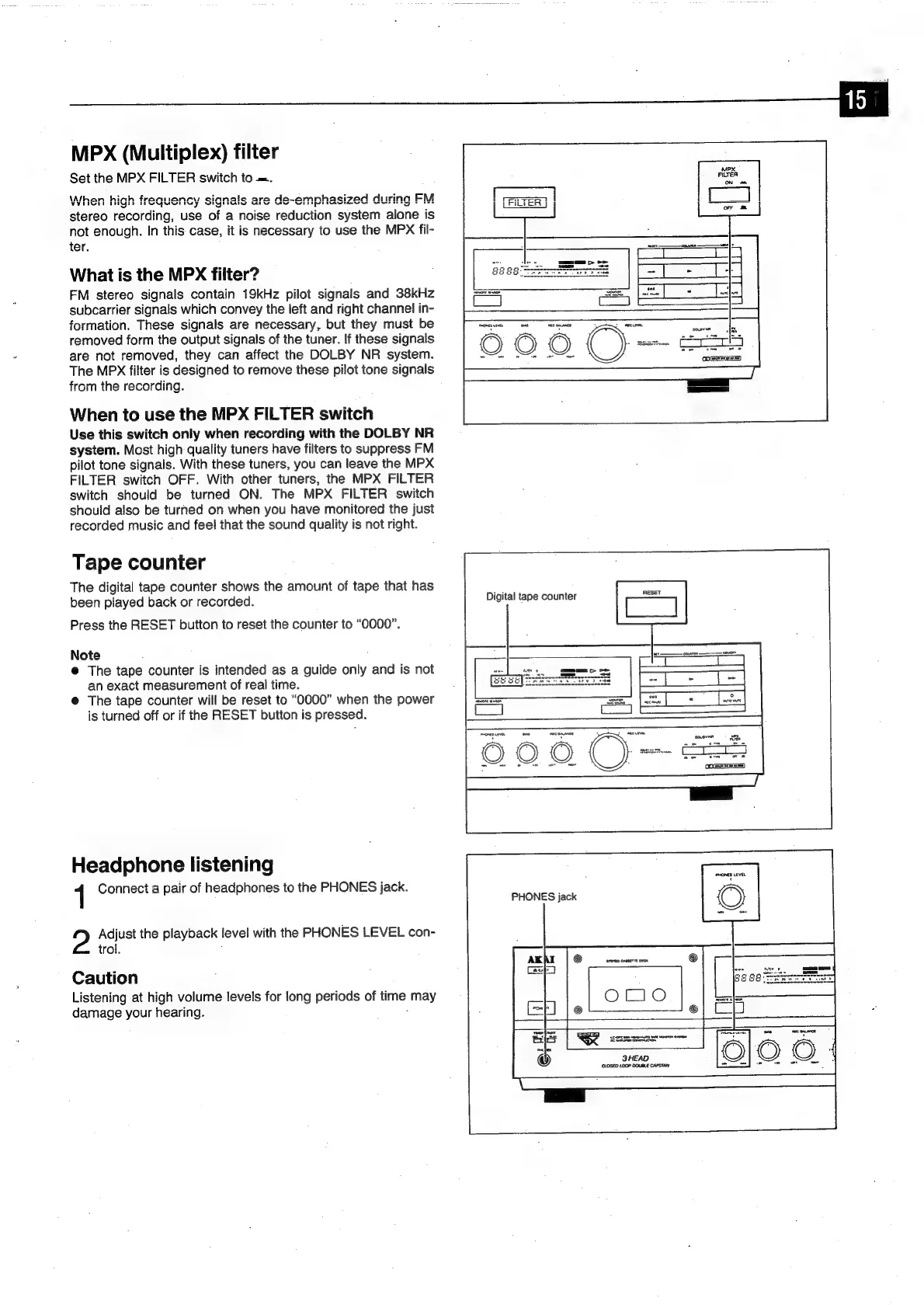

Akai GX-65 MKII

MPX (Multiplex) filter
Set the MPX FILTER switch to =.
When high frequency
rel
signa
stereo recording, use of a noise reduction system alone is
not enough. In this case, it is necessary to use the MPX fil-
ter.
What is the MPX filter?
FM stereo signals contain 19kHz pilot signals and 38kHz
subcarrier signals which convey the left and right channel in-
formation. These signals are necessary, but they must be
removed form the output signals of the tuner. If these signals
are not removed, they can affect the DOLBY NR system.
The MPx filter is designed to remove these pilot tone signals
from the recording.
When to use the MPX FILTER switch
Use this switch only when recording with the DOLBY NR
system. Most high quality tuners have filters to suppress FM
pilot tone signals. With these tuners, you can leave the MPX
FILTER switch OFF. With other tuners, the MPX FILTER
switch should be turned ON. The MPX FILTER switch
should also be turned on when you have monitored the just
recorded music and feel that the sound quality is not right.
s signals are de-emphasized during FM
a fASiZou Gu
@
50180 i= 0)
Tape counter
The digital tape counter shows the amount of tape that has
been played back or recorded.
Press the RESET button to reset the counter to “0000”.
Note ;
@ The tape counter is intended as a guide only and is not
an exact measurement of real time.
@ The tape counter will be reset to “O000” when the power
is turned off or if the RESET button is pressed.
Headphone listening
1 Connect a pair of headphones to the PHONES jack.
y Adjust the playback level with the PHONES LEVEL con-
trol.
Caution
Listening at high volume levels for long periods of time may
damage your hearing. ;
Digital tape counter
PHONES jack
