Akai GX-65 MKII

SSETTE DE/K GX-65 MKIE
3X HEAD/AUTO TAPE MONITOR SYSTEM
DP DOUBLE CAPSTAN
REMOTE S/NSOR

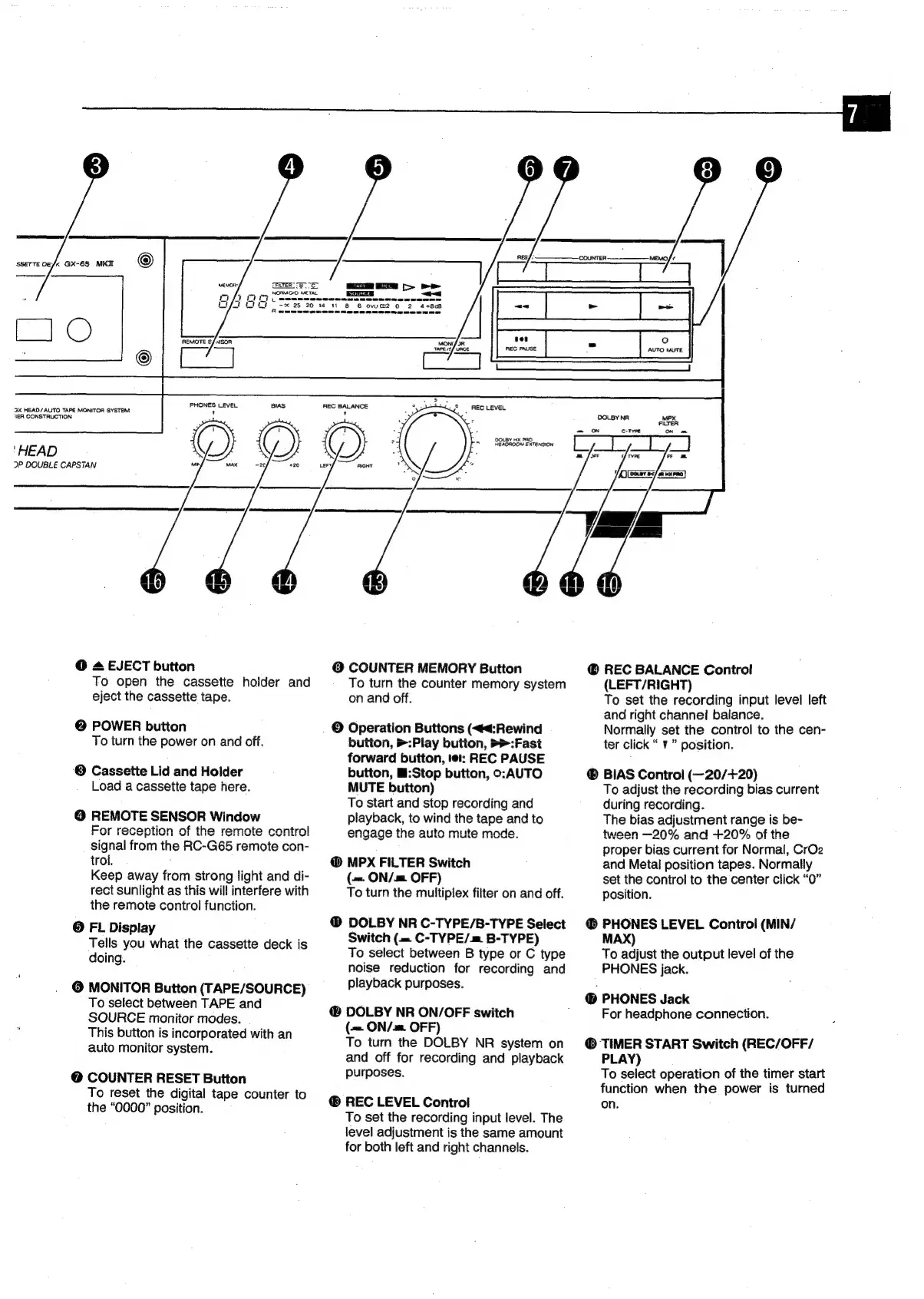

@ 4 EJECT button
To open the cassette holder and
eject the cassette tape.
@ POWER button
To turn the power on and off.
© Cassette Lid and Holder
Load a cassette tape here.
@ REMOTE SENSOR Window
For reception of the remote contro!
signal from the RC-G65 remote con-
trol.
Keep away from strong light and di-
rect sunlight as this will interfere with
the remote control function.
© FL Display
Tells you what the cassette deck is
doing.
© MONITOR Button (TAPE/SOURCE)
To select between TAPE and
SOURCE monitor modes.
This button is incorporated with an
auto monitor system.
@ COUNTER RESET Button
To reset the digital tape counter to
the “0000” position.
@ COUNTER MEMORY Button
To turn the counter memory system
on and off.
© Operation Buttons (<4:Rewind
button, ®:Play bution, ®:Fast
forward button, tet; REC PAUSE
button, H:Stop button, 0:AUTO
MUTE button)
To start and stop recording and
playback, to wind the tape and to
engage the auto mute mode.
@ MPX FILTER Switch
(= ON/m OFF)
To turn the multiplex filter on and off.
@® DOLBY NR C-TYPE/B-TYPE Select
Switch (= C-TYPE/m B-TYPE)
To select between B type or C type
noise reduction for recording and
playback purposes.
@® DOLBY NR ON/OFF switch
(=. ON/m. OFF)
To turn the DOLBY NR system on
and off for recording and playback
purposes.
@® REC LEVEL Control
To set the recording input level. The
level adjustment is the same amount
for both left and right channels.
@® REC BALANCE Control
(LEFT/RIGHT)
To set the recording input level left
and right channel balance.
Normally set the control to the cen-
ter click “ ¥” position.
® BIAS Control (—20/+20)
To adjust the recording bias current
during recording.
The bias adjustment range is be-
tween —20% and +20% of the
proper bias current for Normal, CrO2
and Metal position tapes. Normally
set the control to the center click “O”
position.
@® PHONES LEVEL Control (MIN/
MAX)
To adjust the output level of the
PHONES jack.
® PHONES Jack
For headphone connection.
@® TIMER START Switch (REC/OFF/
PLAY)
To select operation of the timer start
function when the power is turned
on. ;
