Akai MPD232 Service Manual

ADT1 has detected anti-
clockwise movement.
Tester should continue to turn knob
anti-clockwise ensuring that all values
are sent.
ADT1 has detected all anti-
clockwise values. This knob
has passed test.
Tester should move to next knob

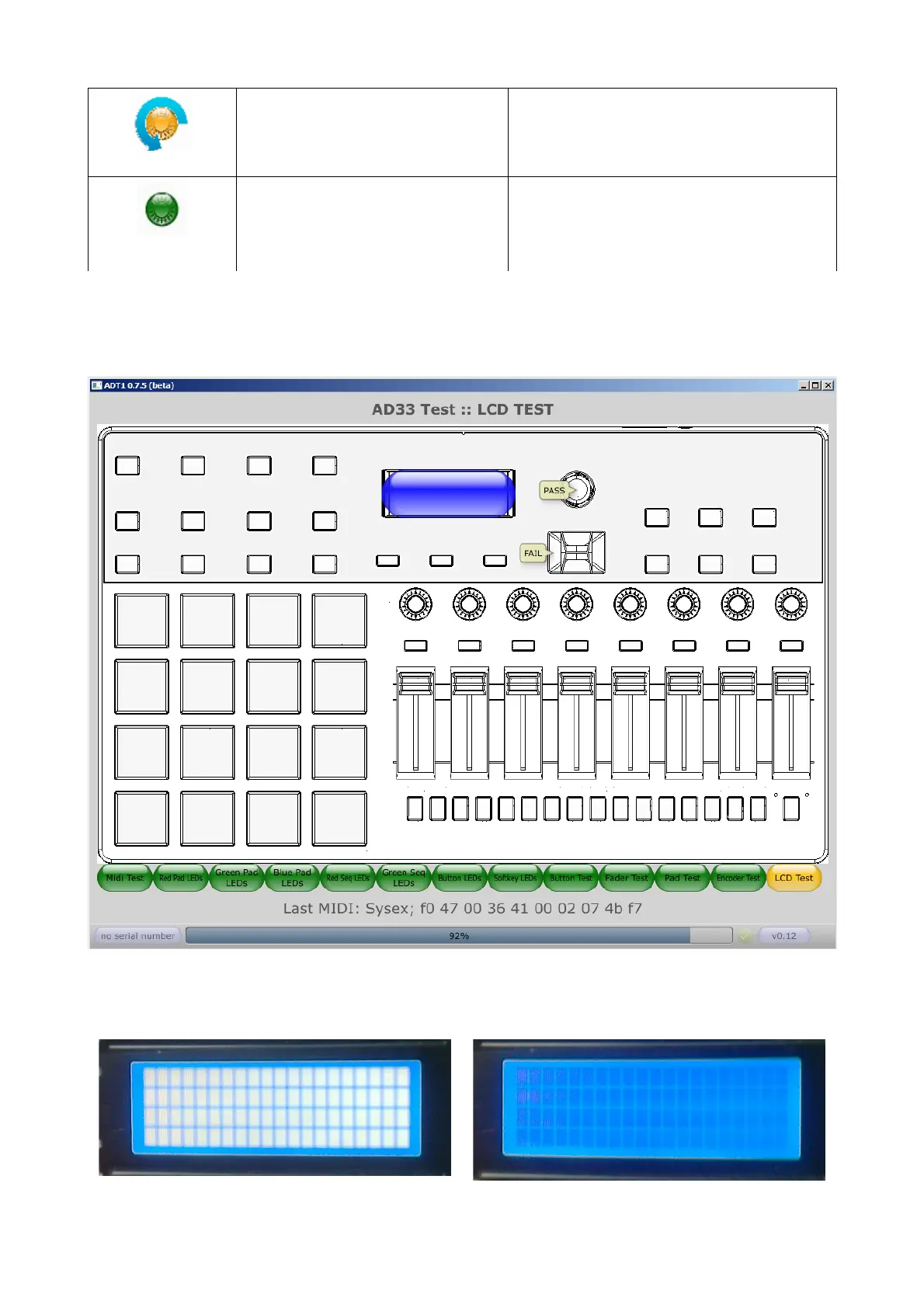

LCD Test
In this test, the ADT1 Manufacturing Test application will send messages to the MPD232 to
set all the segments on the LCD display first on and then off.

Akai MPD232 Specifications

General

MIDI out	Yes
USB version	2.0
USB connector type	USB Type-B
USB ports quantity	1
Product color	Black
Number of drum pads	16
Number of mixer channels	8 channels
Current	1 A
Input voltage	6 V
Power supply type	USB
AC adapter included	No
Minimum RAM	1 GB
Minimum processor speed	1.25 GHz

Weight and Dimensions

Depth	254 mm
Width	422 mm
Height	48 mm
Weight	1900 g
