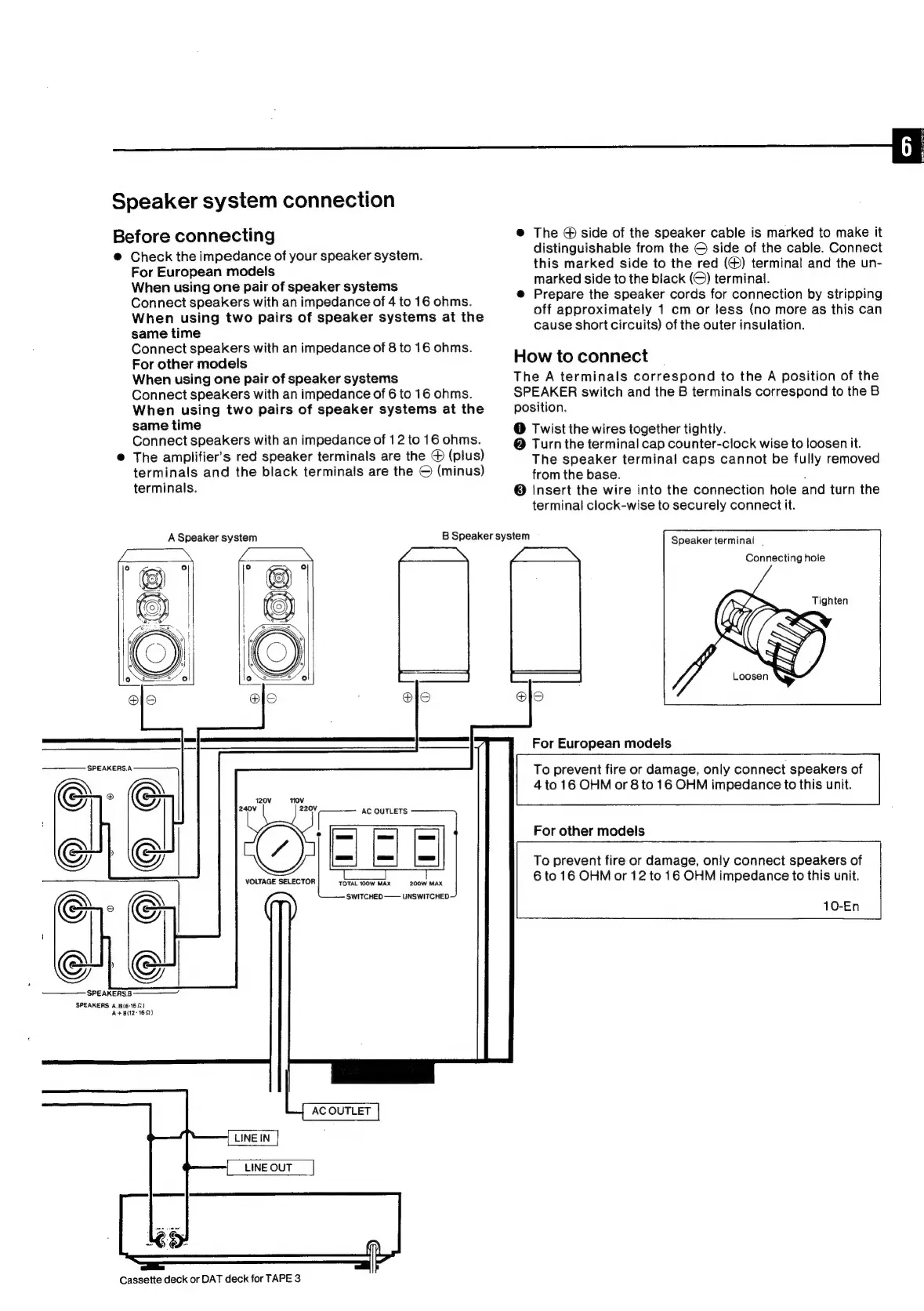

Speaker
system
connection
Before
connecting
@
Check
the
impedance
of
your
speaker
system.
For
European
models
When
using
one
pair
of
speaker
systems
Connect
speakers
with
an
impedance
of
4
to
16
ohms.
When
using
two
pairs
of
speaker
systems
at
the
same
time
Connect
speakers
with
an
impedance
of
8
to
16
ohms.
For
other
models
When
using
one
pair
of
speaker
systems
Connect
speakers
with
an
impedance
of
6
to
16
ohms.
When
using
two
pairs
of
speaker
systems
at
the
same
time
Connect
speakers
with
an
impedance
of
12
to
16
ohms.
@
The
amplifier’s
red
speaker
terminals
are
the
@
(plus)
terminals
and
the
black
terminals
are
the
©
(minus)
terminals.
A
Speaker
system
SPEAKERS.A
120V
nov
240V
220V
—
AC
OUTLETS
EL
VOLTAGE
SELECTOR
TOTAL
100W
MAX
SWITCHED
——
UNSWITCHED.
200W
MAX
SPEAKEARS.B
SPEAKERS
A,B(6-16
©)
A+B(12-162)
AC
OUTLET
LINE
IN
LINE
OUT
Cassette
deck
or
DAT
deck
for
TAPE
3
B
Speaker
system
@
The
@
side
of
the
speaker
cable
is
marked
to
make
it
distinguishable
from
the
©
side
of
the
cable.
Connect
this
marked
side
to
the
red
(@)
terminal
and
the
un-
marked
side
to
the
black
(©)
terminal.
@
Prepare
the
speaker
cords
for
connection
by
stripping
off
approximately
1
cm
or
tess
(no
more
as
this
can
cause
short
circuits)
of
the
outer
insulation.
How
to
connect
The
A
terminals
correspond
to
the
A
position
of
the
SPEAKER
switch
and
the
B
terminals
correspond
to
the
B
position.
@
Twist
the
wires
together
tightly.
@
Turn
the
terminal
cap
counter-clock
wise
to
loosen
it.
The
speaker
terminal
caps
cannot
be
fully
removed
from
the
base.
.
®
Insert
the
wire
into
the
connection
hole
and
turn
the
terminal
clock-wise
to
securely
connect
it.
Speaker
terminal
|
Connecting
hole
Tighten
For
European
models
To
prevent
fire
or
damage,
only
connect
speakers
of
4
to
16
OHM
or
8
to
16
OHM
impedance
to
this
unit.
For
other
models
To
prevent
fire
or
damage,
only
connect
speakers
of
6
to
16
OHM
or
12
to
16
OHM
impedance
to
this
unit.
10-En
