Akai VS-2EGN

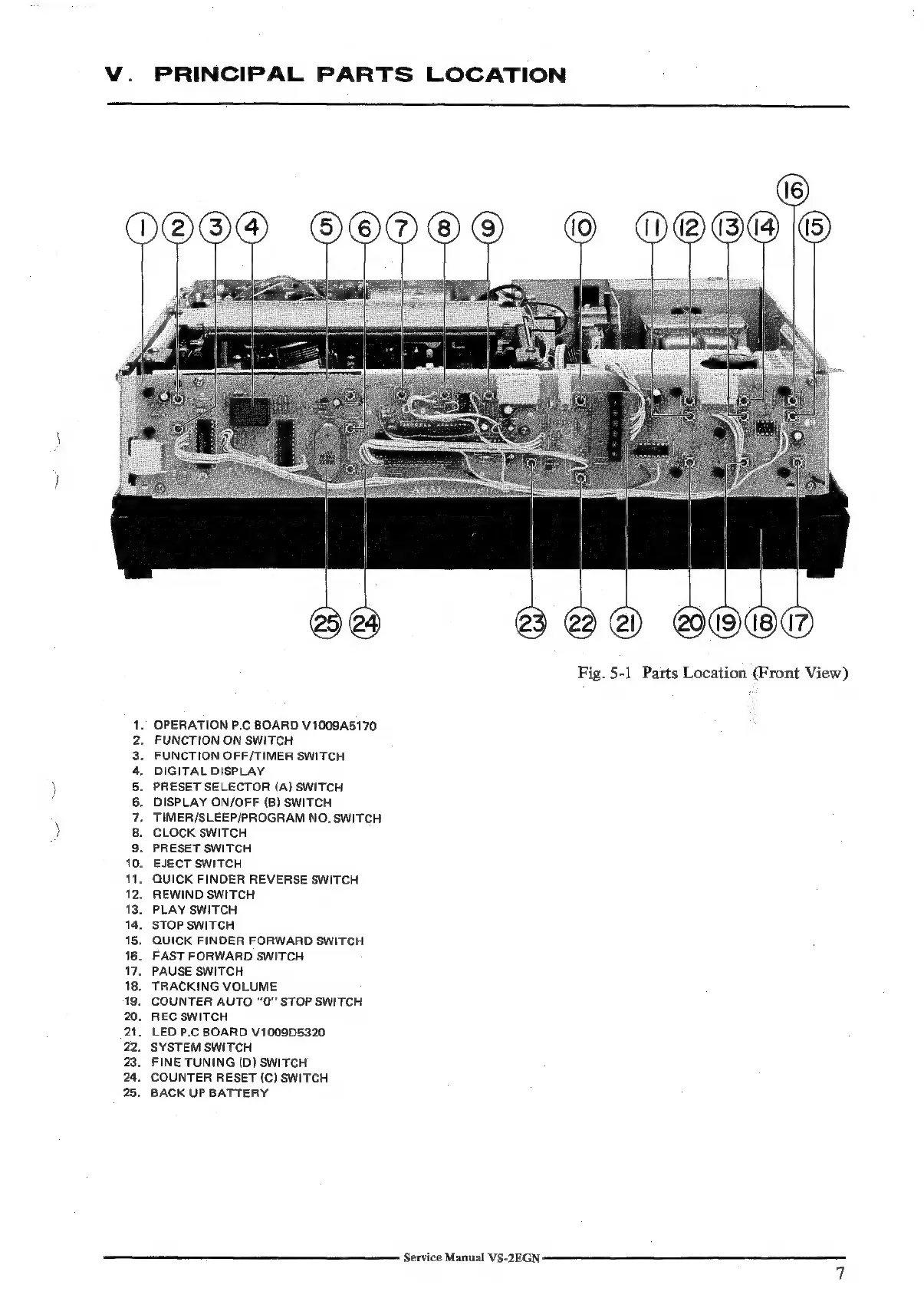

V. PRINCIPAL PARTS LOCATION
1.
8
3.
4.
5.
6.
hh
8.
a.
10.
TAs
12.
13.
14,
15,
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
25 @4
OPERATION P.C BOARD V1009A5170
FUNCTION ON SWITCH
FUNCTION OFF/TIMER SWITCH
DIGITAL DISPLAY
PRESET SELECTOR (A) SWITCH
DISPLAY ON/OFF (B) SWITCH
TIMER/SLEEP/PROGRAM NO. SWITCH
CLOCK SWITCH
PRESET SWITCH
EJECT SWITCH
QUICK FINDER REVERSE SWITCH
REWIND SWITCH
PLAY SWITCH
STOP SWITCH
QUICK FINDER FORWARD SWITCH
FAST FORWARD SWITCH
PAUSE SWITCH
TRACKING VOLUME
COUNTER AUTO “0” STOP SWITCH
REC SWITCH
LED P.C BOARD V1009D5320
SYSTEM SWITCH
FINE TUNING (D) SWITCH
COUNTER RESET (C) SWITCH
BACK UP BATTERY
(6)
O®2®O® OOMQO®Q YO OOGL |©
2 Bea) BIg
Fig. 5-1 Parts Location (Front View)
Service Manual VS-2EGN
