Akai VS-2EGN

Xi.

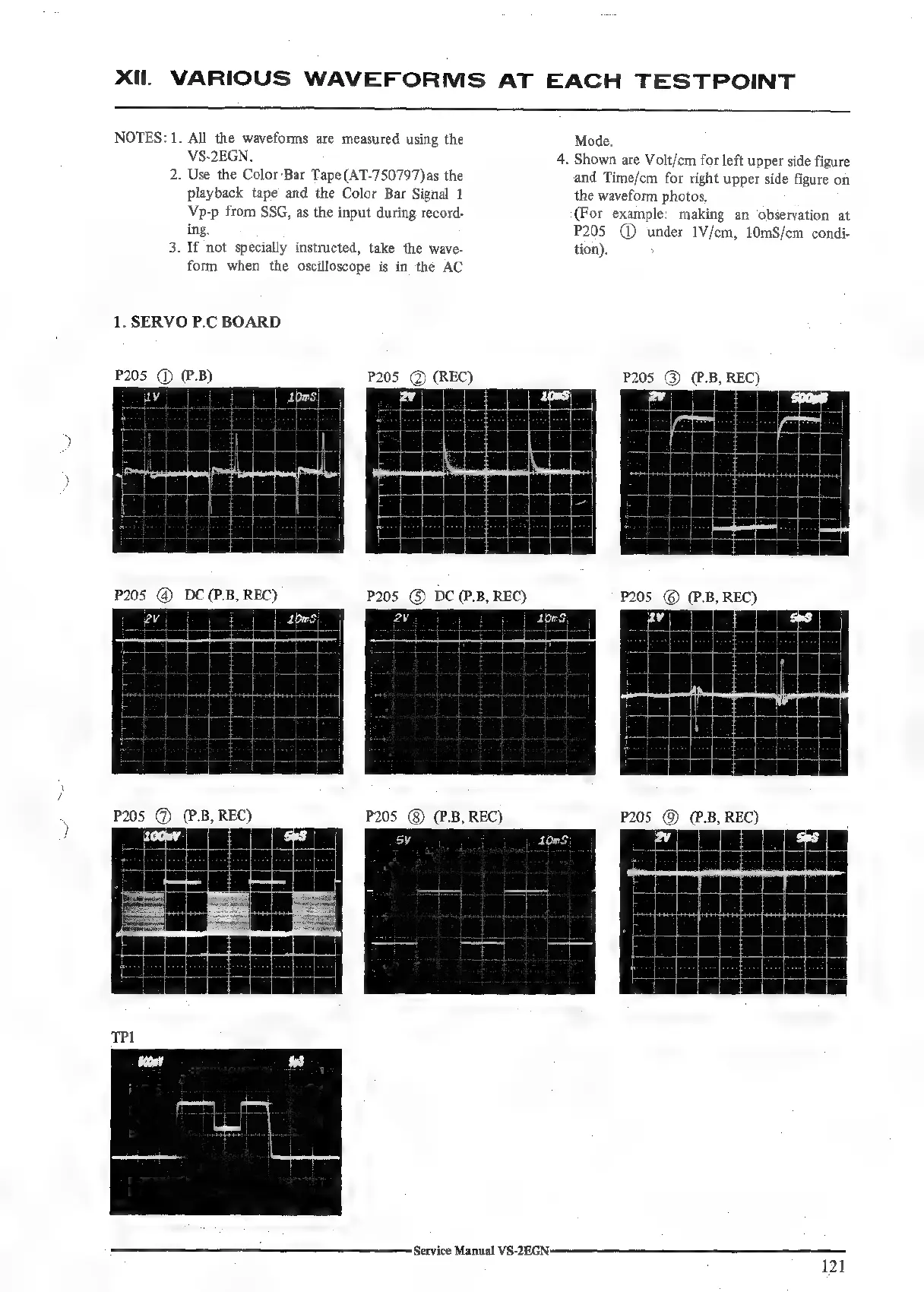

VARIOUS
WAVEFORMS
AT
EACH
TESTPOINT
NOTES: 1.
2:
All the waveforms are measured using the
VS-2EGN.
Use the Color Bar Tape(AT-750797) as the
playback tape and the Color Bar Signal 1
Vp-p from SSG, as the input during record-
ing.
. If not specially instructed, take the wave-
form when the oscilloscope is in the AC
1. SERVO P.C BOARD
iv
205 @ (P.B)
P205 @ (REC)
P205 @) (P.B, REC)
‘Service Manual VS-2EGN:
Mode.
. Shown are Volt/cm for left upper side figure
and Time/cm for right upper side figure on
the waveform photos,
(For example: making an observation at
P205 (@ under 1V/cm, 10mS/cm condi-
tion).
P205 @ (P.B, REC)
aw
121
