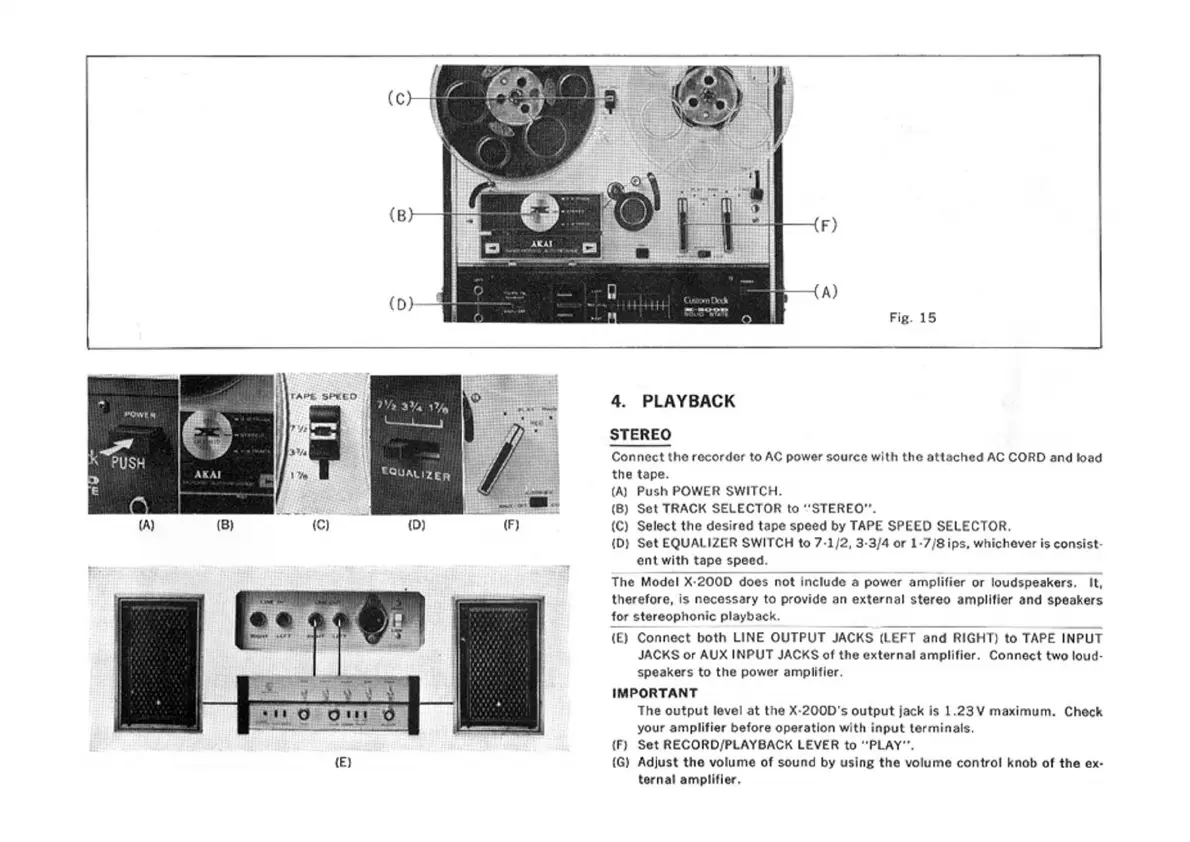

4. PLAYBACK

STEREO

Fig.

15

Connect

tho

recorder to

AC

power source w

ith

tho

attached

AC

CORD

and load

the tape.

(A)

Pu

sh

POWER

SWITCH.

(8)

Set TRACK SELECTOR to "STEREO".

(C)

Select

the

des

ir

ed tape speed

by

TAPE

SPEED

SEL

E

CTOR

.

(D)

Sot EQUALIZ R SWITCH to 7•1/2. 3·3/4

or

1•

7/8

ips. whichever is consist·

ent

with

tape speed.

The Model X-2

000

does

not

Include a power

amplifier

or

loudspeakers. It,

therefore,

is

necessary to provide

an

external stereo

amplifier

and speakers

for s

ter

eophonic playback.

(E)

Connect

both

LINE OUTPUT JACKS (LEFT

and

RIGHT)

to

TAPE

IN

PUT

JACKS or AUX INPUT JACKS

of

tho

ex

t

ernal

amplifie

r. Connect two loud·

speakers

to th

e power amplifier.

IMPORTANT

The

output

level

at

the

X-

200D's

output

jack ls 1.

23

V maximum. Check

your

amplifier

before operation with I

nput

terminals.

(FJ

Set RECORD/PLAYBACK

LEVER

to "

PLAY

" .

(G)

Adjust

the

volume

of

sound by using

the

volume

con

trol

knob

of

the

ex•

ternal

amplifier.
