Akai X-200D

s~
Tape Sensing
Pin
SE SI NG TAPE(½ INCH ES )
-
\
\
TAPE !SHINY SIOEJ
SENSING TAPE (½ I NCH SI
iWw.i
TAPE (DULL SIDE)
~nsin9
ape
~
IA) (Bl
~---th
TAPE (SHINY SID I

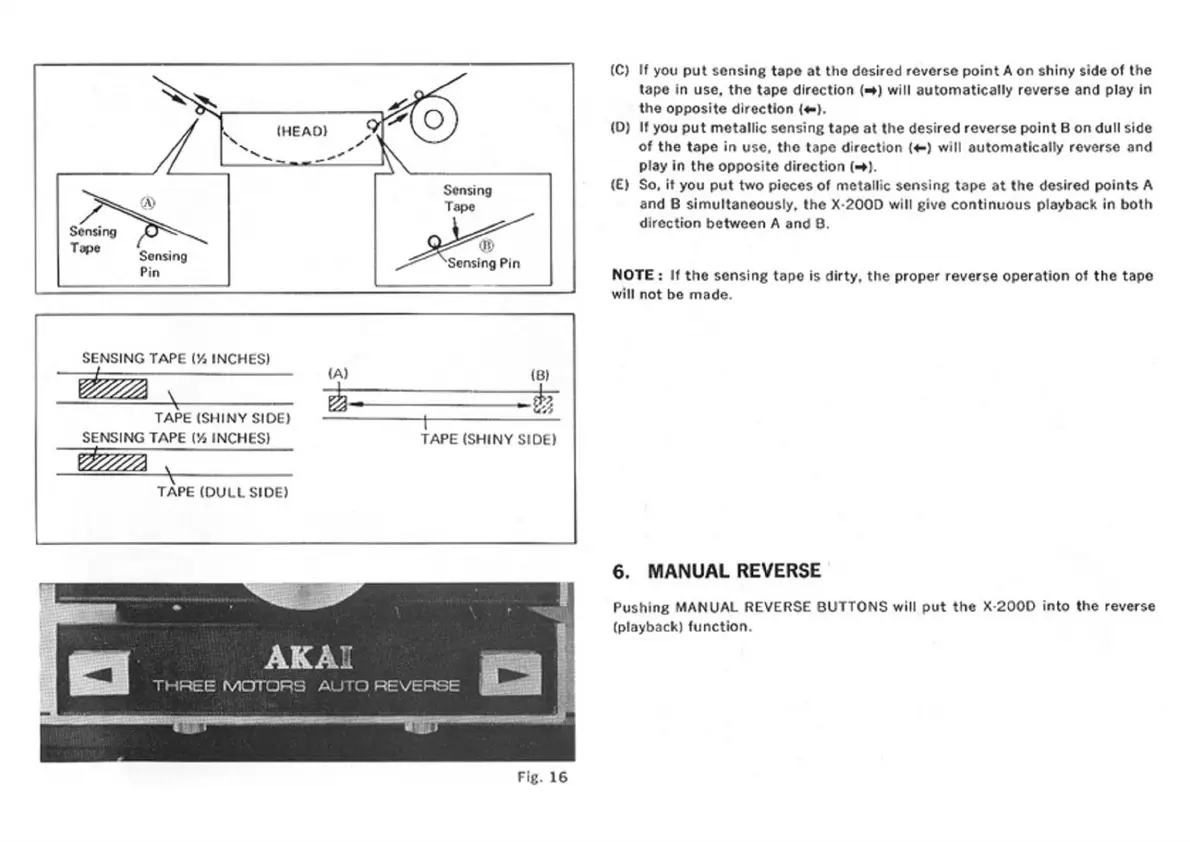

Fig, 16
(C) If you put sensing tapo at the d8sired reverse point A on shiny side of the
tape in use, the tape direction ( at ) will automatically reverse and play in
the opposite direction( .. ).
(DJ If you put metallic sensing tape at the desired reverse point 8 on dull side
of t he tape in use, the tape di rect ion ( .. I will automatically reverse and
play in the opposite direction ( at ).
(£) So. it you put two pieces of metallic sensing tape at the desired points A
and B simultaneously, the X• 200D will give continuous playback in both
di rection between A and 8 .
NOT E : If the sensing tape is dirty, the proper reverse operat ion of the tap8
will not be made .
6. MANUAL REVERSE
Pushi ng MANUAL REVERSE BUTTONS will put the X- 2000 into the reverse
(playback) function .
