l:ln 1n

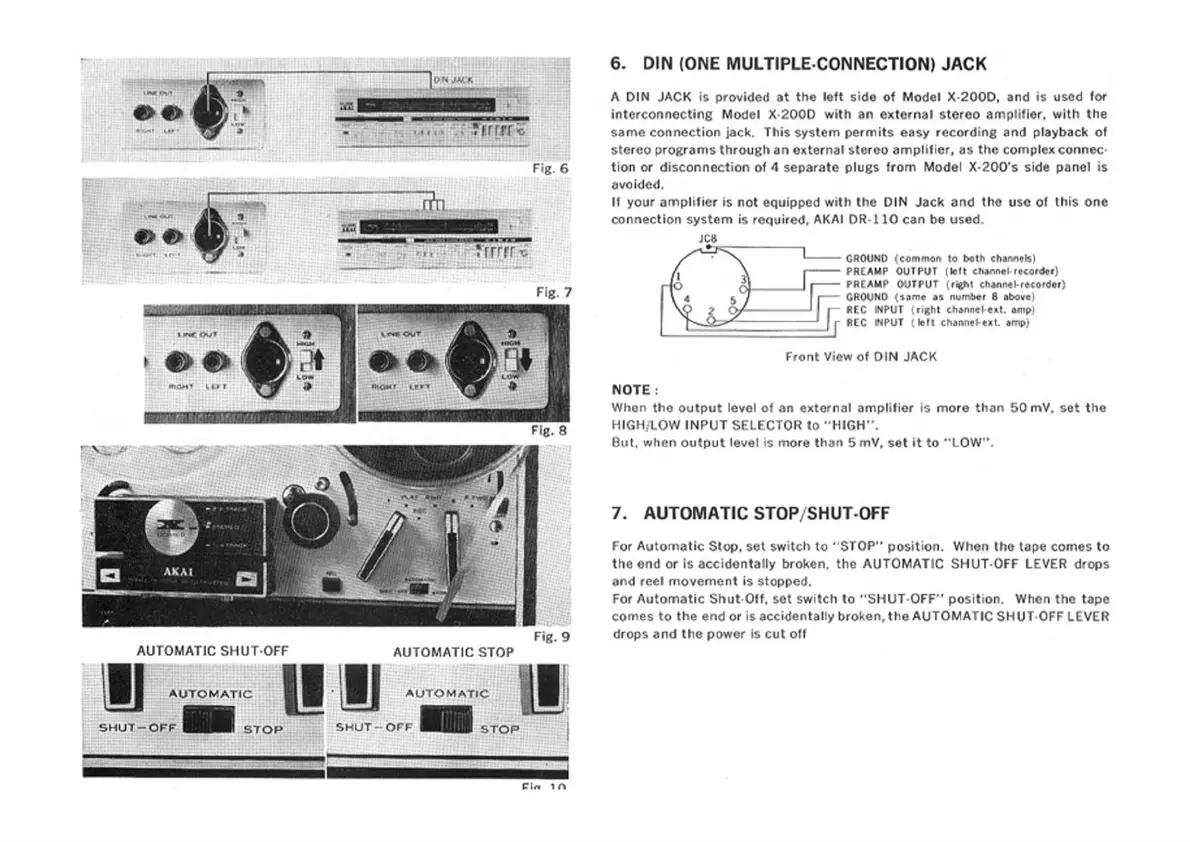

6. DIN (ON E MULTIPLE-CONNECTION) JACK
A DIN JACK is provided at the left side of Model X- 200D, and is usod for
interconnecting Model X-200D with an external stereo amplifier, with the
same connection jack. This sys tem permits easy recording and playback of
stereo programs through an external stereo amplifier, as the complex connec -
tion or disconnection of 4 separate plugs from Model X -20 0's side panel is
avoided.
If your amp l ifier is not equipped wi th the DIN Jack and tho use of thi s one
connection system is required, AKAi DR - 110 can be used.
JCS
NO TE :
GROU O (common to both chalVlels)
PRE AMP OU lPUT ( loll <honntl - rtcordo r)
PREAMP OUTPUT ( ri8),t Chatlntl-rtcord er )
GROUND (s:ime H numbe r 8 above)
REC PUT ( righ t chonnel, ul. omp)
REC PU T ( left channe ~OlL amp )
Front View of DIN JACK
When the output level of an externa l amplifier is more than 50 mV, set th e
HI GH lLOW INPUT SEL CTOR to .. HIGH" .
But, when output level is more th an 5mV, set it to "L OW " .
7. AUTOMATIC STOP /SHUT- OFF
For Automatic Stop, set swi tch to " STOP" position. When the tape comes to
th e end or is accidentally broken , the AUTOMATIC SHUT - OFF L EVER drops
and reel movement is sto pped.
For Automatic Shut -OH. sot sw itch to "SHUT -OFF' ' posit ion. When the tape
comes to the end or is accident.illy broken, the AUTOMATIC SHUT - OFF LEV ER
drops and t he pow r Is cut olf
