D145H4502 Ed. 01
19

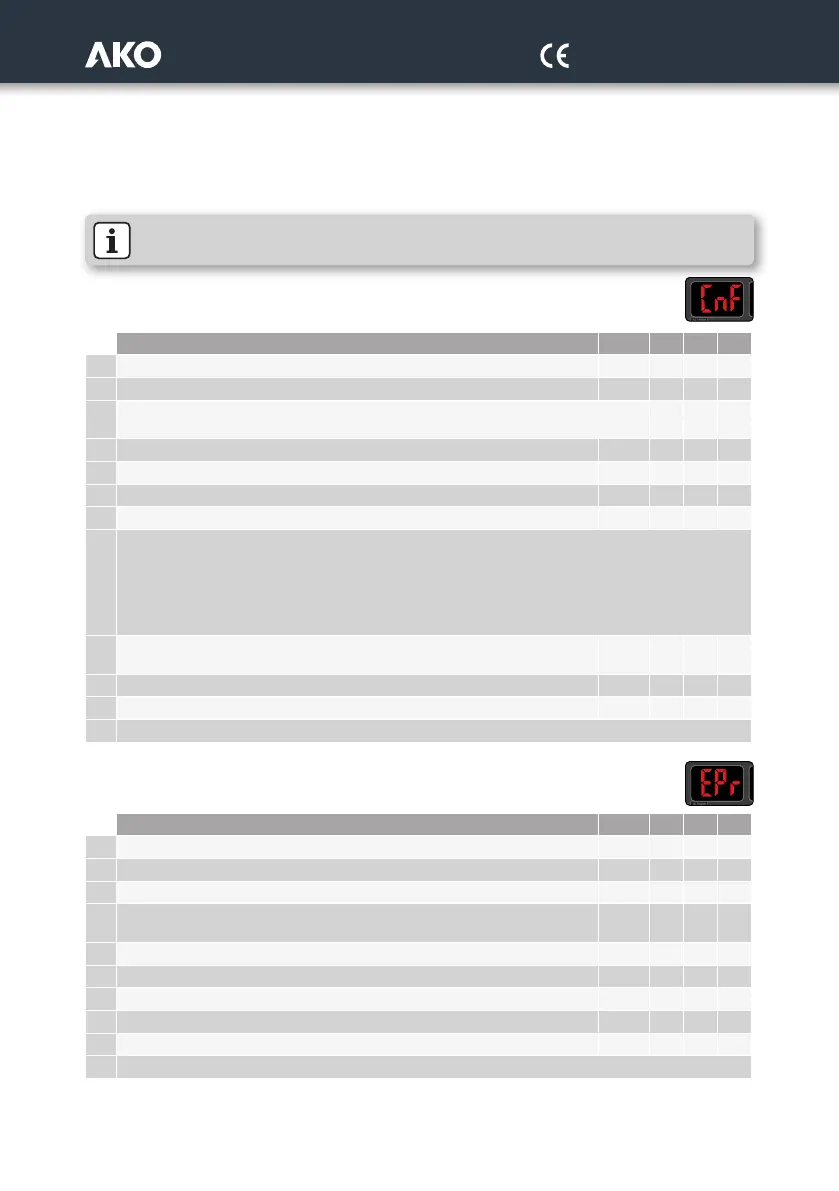

Parameters
The unit’s operation parameters are organized into groups or families according to their function.
The Def. column shows factory-set default parameters.
The pressure values featured on the table are expressed in bar and those for temperature in ºC. If the wizard
meanwhile selects another set of units (parameter C09), the unit will make the conversion automatically.
IMPORTANT: C01, C02, C04, C05, C06, C08 and C09 are read-only parameters, editable using the
INI wizard only.
Level 1.- INSTALLATION CONFIGURATION
Level 2
Description Units Min. Def. Max.
C01
Total number of compressors (with or without inverter) - - -
C02 Number of stages per compressor - - -
C03
Polarity of the capacity reduction contact
0=Active when closing the contact; 1=Active when opening the contact
0 0 1
C04 Compressor 1 with frequency inverter 0=No; 1=Yes - - -
C05 Total number of fans (1 inverter only is considered with inverter) - - -
C06
Fan control type 0=ON/OFF; 1=Frequency inverter - - -
C07 Operation type 0=Direct; 1=Inverse 0 0 1
C08
Refrigerant gas type: 0=R404A 1=R134A 2=R407A 3=R407F 4=R410A 5=R450A
6=R513 7=R744 8=R449A 9=R290 10=R32 11=R448A 12=R1234ze 13=R23
14=R717 15=R407C 16=R1234yf 17=R22 18=R454C 19=R455A 20=R507A 21=R515B
22=R452A 23=R452b 24=R454A 25=R12 26=R114 27=R142B 28=R170 9=401A
30=R402A 31=R407B 32=R413A 33=R417A 34=R422A 35=R422D 36=R427A 37=R438A
38=R500 39=R502 40=R503 41=R600 42=R600A
C09
Display units (Primary-Secondary) 0=bar-ºC 1=psi-ºF
2=psi-ºC 3=bar-ºF 4=ºC-bar 5=ºF-psi 6=ºC-psi 7=ºF-bar
- - -
C10 Frequency inverter output type 0=4-20 mA; 1=0-10 V 0 0 1
InI This indicates the configuration selected in the wizard (read only) - - -
EP Output to level 1
Level 1.- EVAPORATION CONFIGURATION
Level 2
Description Units Min. Def. Max.
E01
Pressure / evaporation temperature set point bar E03 5 E02
E02
Evaporation set point upper limit (It cannot be set above this limit) bar E03 65 65
E03 Evaporation set point lower limit (It cannot be set below this limit) bar -0.7 -0.7 E02
E04
Compressor rotation type: 0=Balancing, depending on the operation time
1=Sequential (the last in is the first out)
0 0 1
E05 Compressor control type: 0=Neutral zone; 1=Proportional 0 0 1
E06 Evaporation regulation bandwidth bar 0.0 2.0 50
E07 Integral time (PID inverter control) sec. 2 5 10
E08 Stop value for pump down (If C07=0) bar -0.7 0.1 *
E09 Maximum pump down time (If C07=0) (0= deactivated) sec. x10 0 0 255
EP Output to level 1
* Depending on the compressor control type: Proportional=E01; Neutral zone=E01-E06.
