INSTALLING FLOW SWITCH
Installing Flow Switch
Depending on the installation, install 1 or 2 filters and switches to the shower water feed. Install the filter
(Y-Pattern filter) in the correct flow orientation to the shower water supply line and then fit the flow switch
between the filter and the shower.
Confirm shower water supply pipework is flushed before connecting to the flow switch via the filter.
Electric showers have one water supply line, cold water. Fit one filter and flow switch to this line. Mixer
showers have two supply lines, hot and cold water. Fit one filter and flow switch to each supply line.
Double check the direction of the flow arrow on the switch casing is in the correct orientation with the
flow of water. Ensure all cable connections are accessible and in a dry location. Connect the switch cable
from the flow switch to the controller. Do not tile over the flow switches and filters and ensure they are
accessible for service and maintenance purposes. Do not install in a loft space.

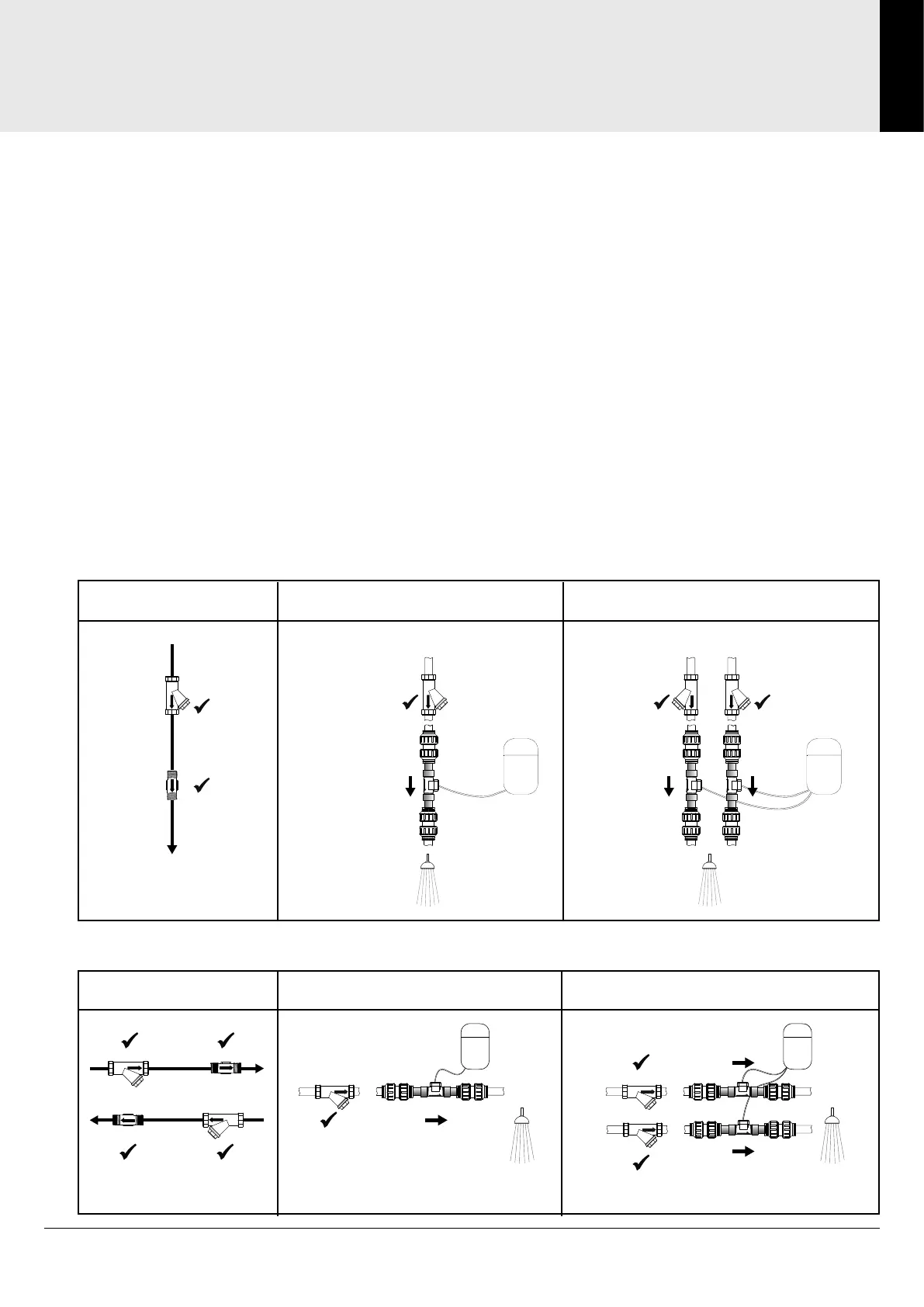

Vertical Water Feed Installation
Horizontal Water Feed Installation
Mixer ShowerElectric Shower
Flow
Switch
Flow
Switch
Flow
Switch
Filter
Filter Filter
Check both components have the
arrow in the direction of the water
flow
For Electric Shower
(Cold Water Feed)
Vertical Orientation
For Mixer Shower
(Hot and Cold Water Feed)
For Electric Shower
(Cold Water Feed)
Horizontal Orientation
For Mixer Shower
(Hot and Cold Water Feed)
Mixer
Shower
Electric
Shower
Flow
Switch
Flow
Switch
Flow
Switch
Filter
Filter
Filter
Check both components have the
arrow in the direction of the water
flow
