PLUMBING ZONE

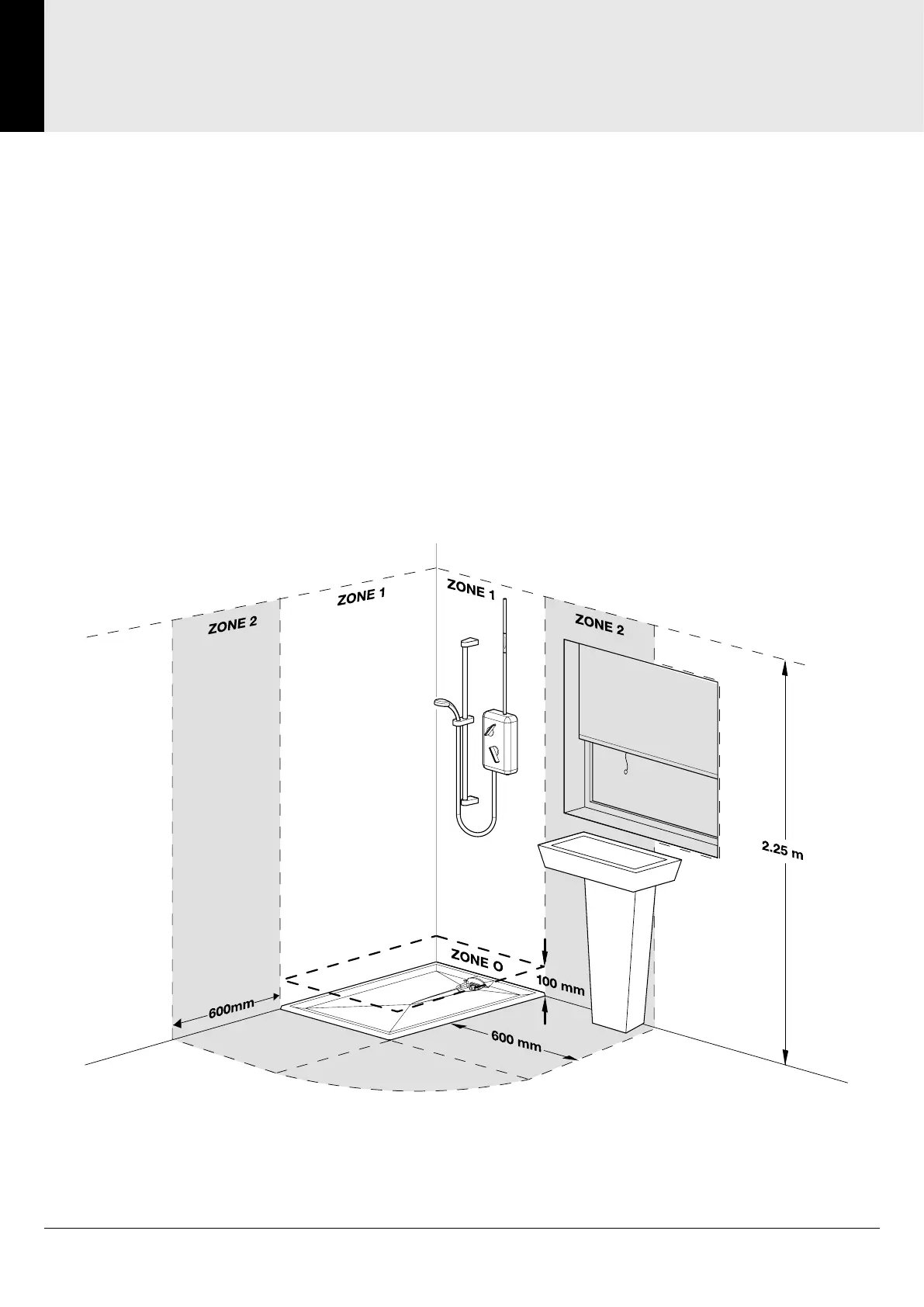

Plumbing Zone
This product is rated IPX4 and suitable to be installed within Zone 1 or Zone 2 of a shower room only if
these instructions are fully complied with. It must not be fitted within Zone 0.
The unit must be located away from the direct line of water jets.
Zone 1 lies above Zone 0 up to a minimum of 2.25m or to the height of the fixed shower head from the
finished floor level, which ever is greater.
If the shower has no tray then zone 1 extends to 1.2m around the fixed shower head.
Zone 2 is the area extending 0.6m beyond Zone 1 and up to the same height as Zone 1.
FOR GUIDANCE ONLY- PLEASE REFER TO BS7671 FOR FURTHER DETAILS
