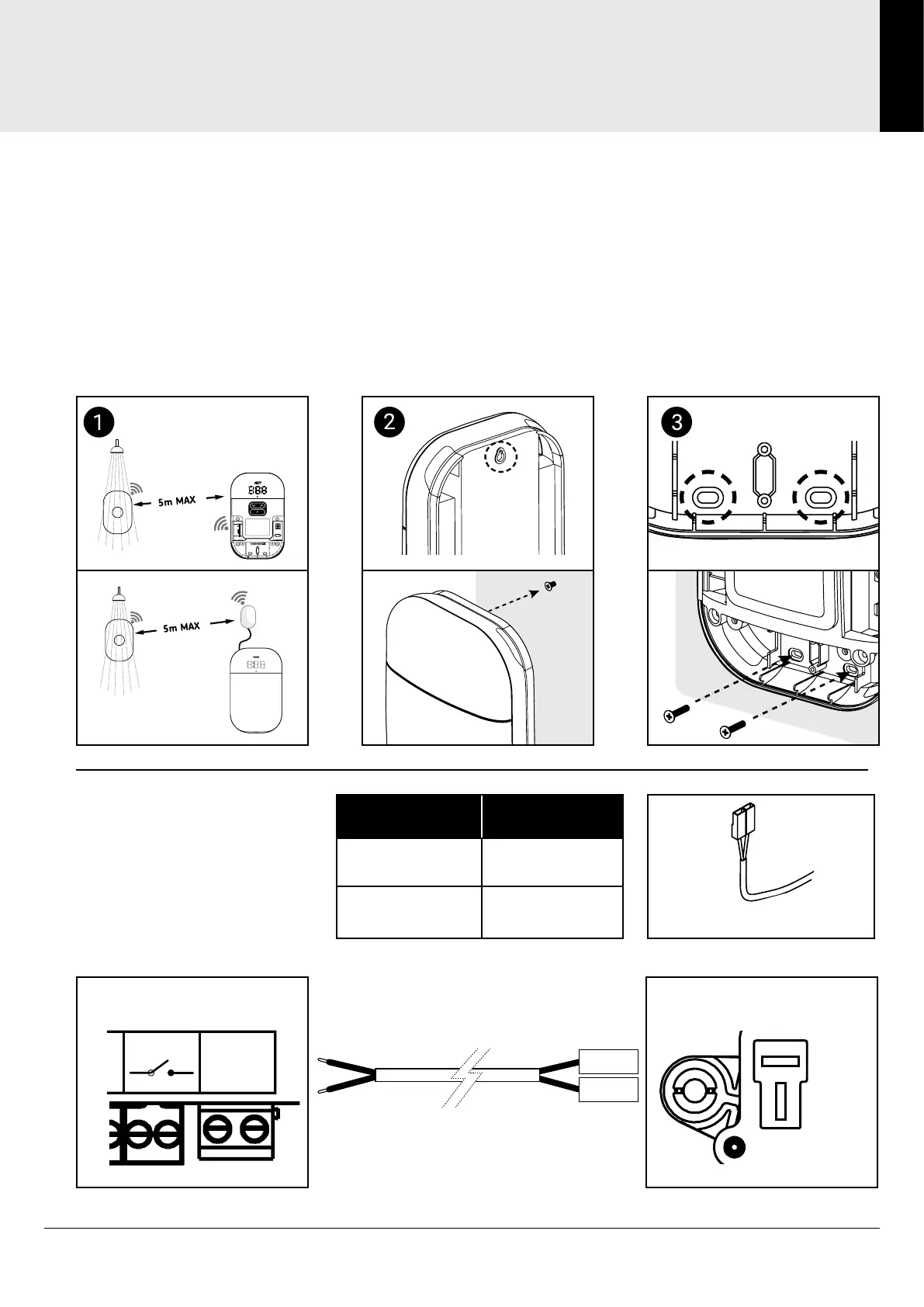

MOUNTING AND FLOW DIRECTION
Mounting and Flow Direction
Fixing Controller to Surface
Ensure the controller is in an easily accessible location. Do not install in a loft space.
1) If intending to use wireless connection between shower and controller, then controller should be
positioned a maximum of 5 m from the shower. For an installation greater than 5 m, the wireless
module can be installed externally.
2) Secure top screw to wall and leave 4 mm gap between screw head and wall. Hook Controller on to
screw.
3) Mark positions of two bottom screws. Secure the bottom two mounting slots with screws.
Setting Flow Direction
Select the direction using the
table and connect the pump
cable to the P12 using the
spades and wire end to the
control interface.
Connection Flow Direction
A to A and B to B Left to Right
B to A and A to B Right to Left
Control Interface
P12 Pump
A
B
F
Pump Cable
Pump Cable
To Next Page
