Specifications
12
Specifications
Installer
(D)
(H) (H2)
(W)
(W2)
Supply Source Mains pressure cold water only
Minimum Dynamic Pressure 50kPa (0.5 Bar) (1 Bar BEAB Care)
Recommended Minimum Dynamic Pressure
100 kPa (1 Bar)
Maximum Static Pressure 1000 kPa (10 Bar)
Maximum Inlet Temperature 28°C (20°C BEAB Care)
Minimum Inlet Temperature 3°C (5°C BEAB Care)
Inlet Connection 15mm pipe
Outlet Connection 1/2” BSP Male Thread Fitting
Nominal Rating at 240 V 10.5kW, 9.5kW & 8.5kW
Supply Fuse / Circuit Breaker
(10.5kW 45/50A), (9.5kW 40/45A) & (8.5kW 35/40A)
Residual Current Device (RCD)
30 mA (must be fitted)
Supply Cable Refer to current wiring regulations
and BS 7671 to determine minimum
cable size. No larger than 10mm
2
Isolation Switch (e.g. Pull Cord) 45 Amp Double pole with 3mm
contact separation.

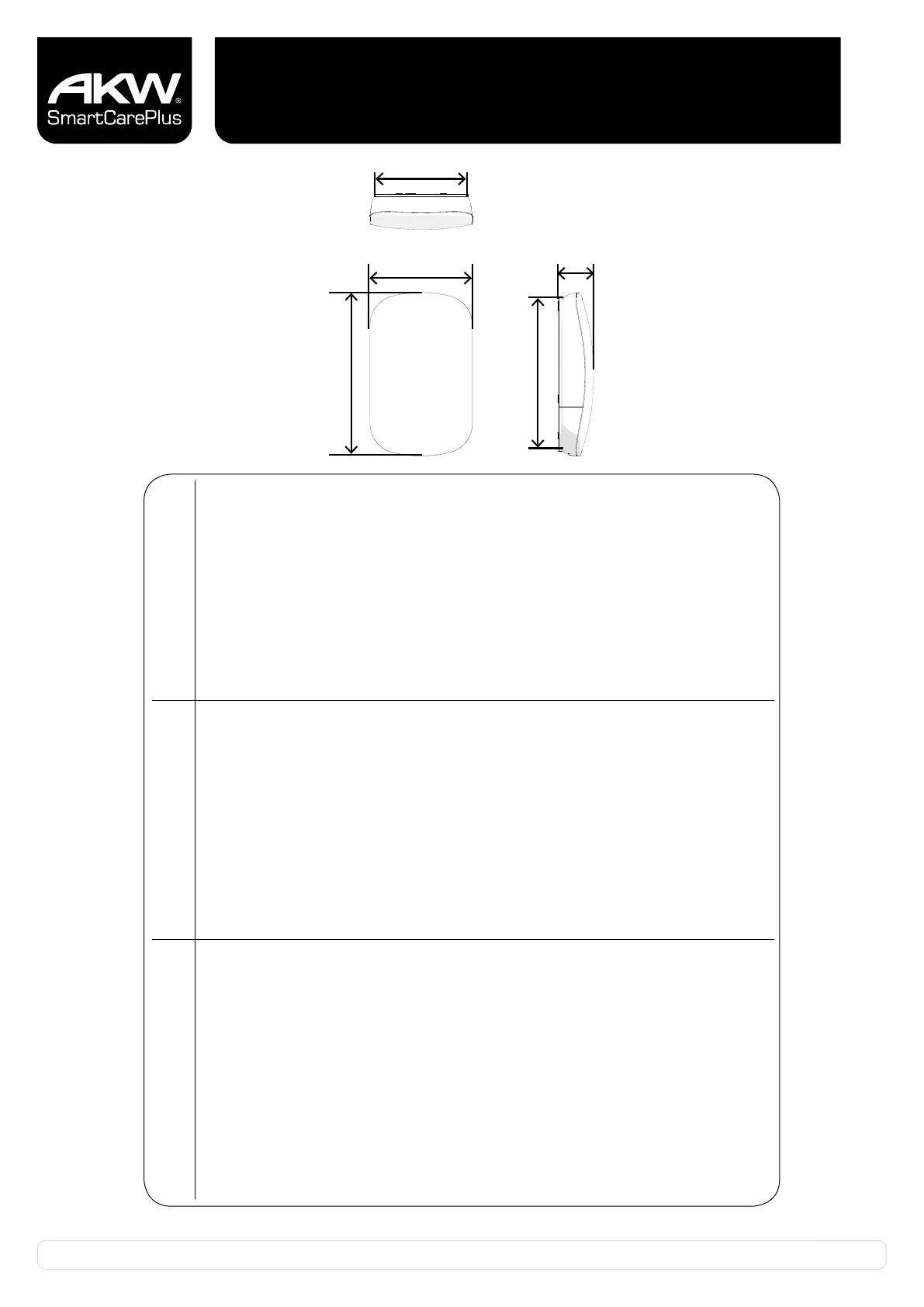

Height (H) 380 mm
Width (W) 230 mm
Depth (D) 85 mm
Footprint Height (H2) 345 mm
Footprint Width (W2) 210 mm
Water Ingress Rating IPX4
Water and Cable Entry Points Top, bottom, side or back.
Shower Drain Pump Connections Suitable for M Series (Flow Sensor)
Wired (Wireless optional)
or AKW A4 (Flow Switch)
ELECTRICITY SUPPLY
PLUMBING SUPPLY
PHYSICAL
