Disassembly
14
Disassembly
Installer
Ensure that the electrical supply is switched off at the mains.
Ensure that the water supply is turned off.
Unplug the ribbon cable from the circuit
board and place the front cover out of the
way.

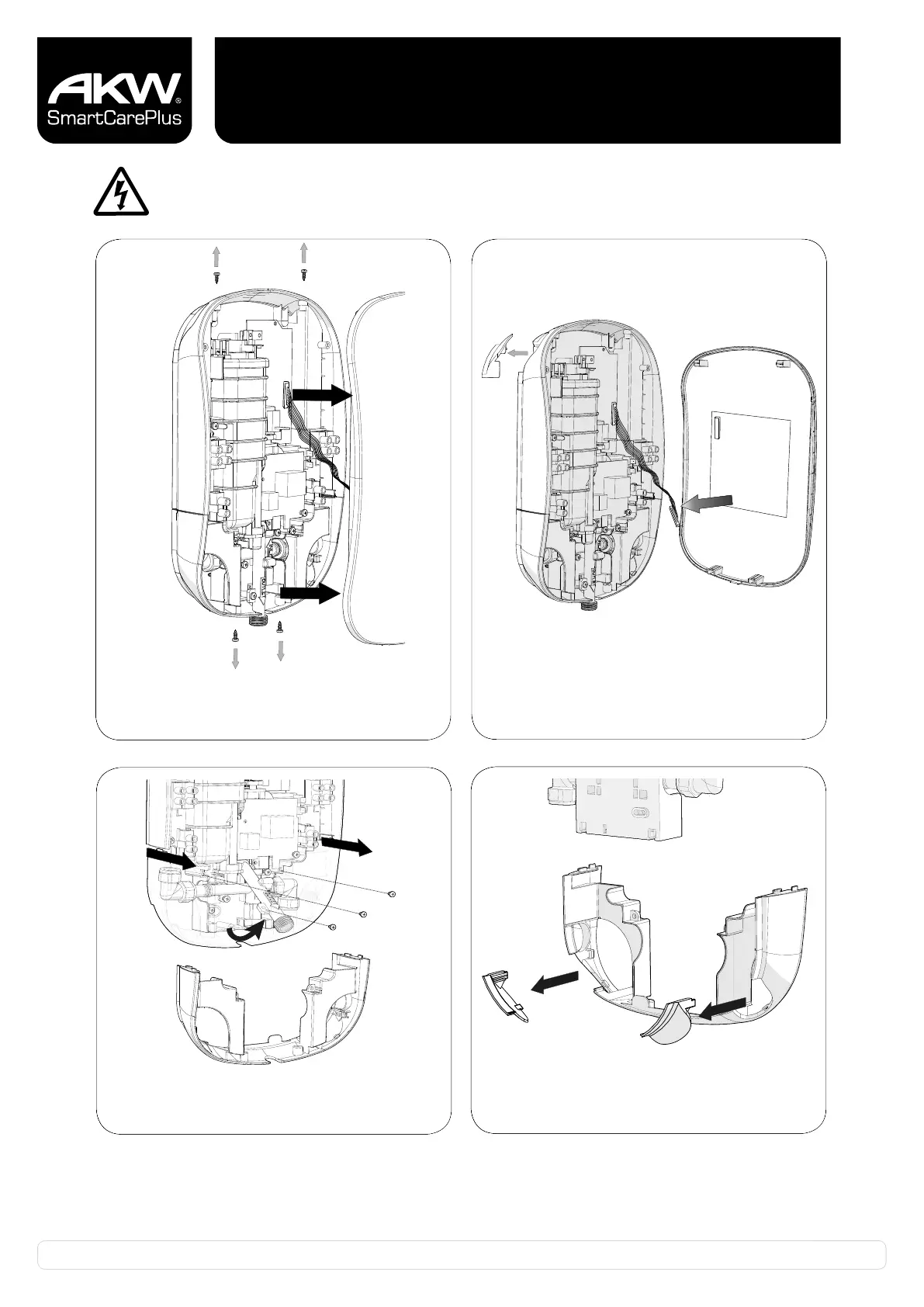

Remove the 4 screws and carefully lift off
the front cover.
Unscrew the three fixing screws, pull the outlet
pipe forwards, slide out and remove the bottom
cover plate
Note the unit can be temporarily hung using the top screw fixings whilst the cable and pipe-work entries can
be connected.
Slide out the relevant pipe & entry covers
