Alarm.Com DOORBELL CAMERA - Power Configuration Diagrams; Wiring Diagrams for Power Setups

Copyright © 2017 Alarm.com | www.alarm.com | May 2017
7
Wi-Fi Doorbell Camera - HD and Slim Line Editions | Installation Guide

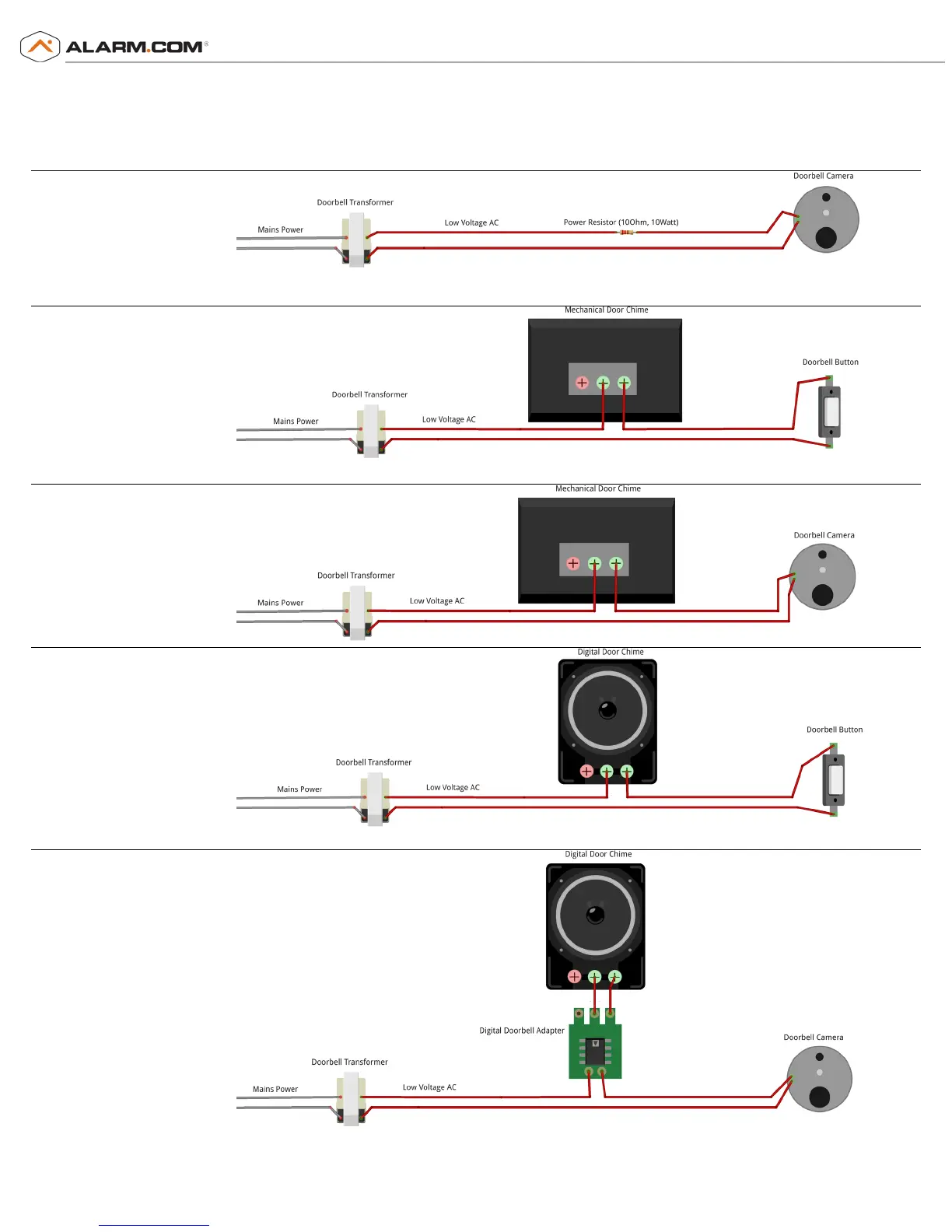

POWER CONFIGURATIONS
No Chime – With
Doorbell Camera –
Resistor Required*
*
WARNING
: This setup is designed for testing and demonstration purposes only. Failure to install a resistor (10
Ohm, 10 Watt) when a chime is not present may result in damage to the doorbell camera.
Mechanical Chime –
Before Installation
Mechanical Chime -
With Doorbell Camera
Digital Chime – Before
Installation
Digital Chime – With
Doorbell Camera
