101
EXTENDING THE NUMBER OF TELEPHONES IN INSTALLATIONS
6+N+COAXIAL SYSTEM

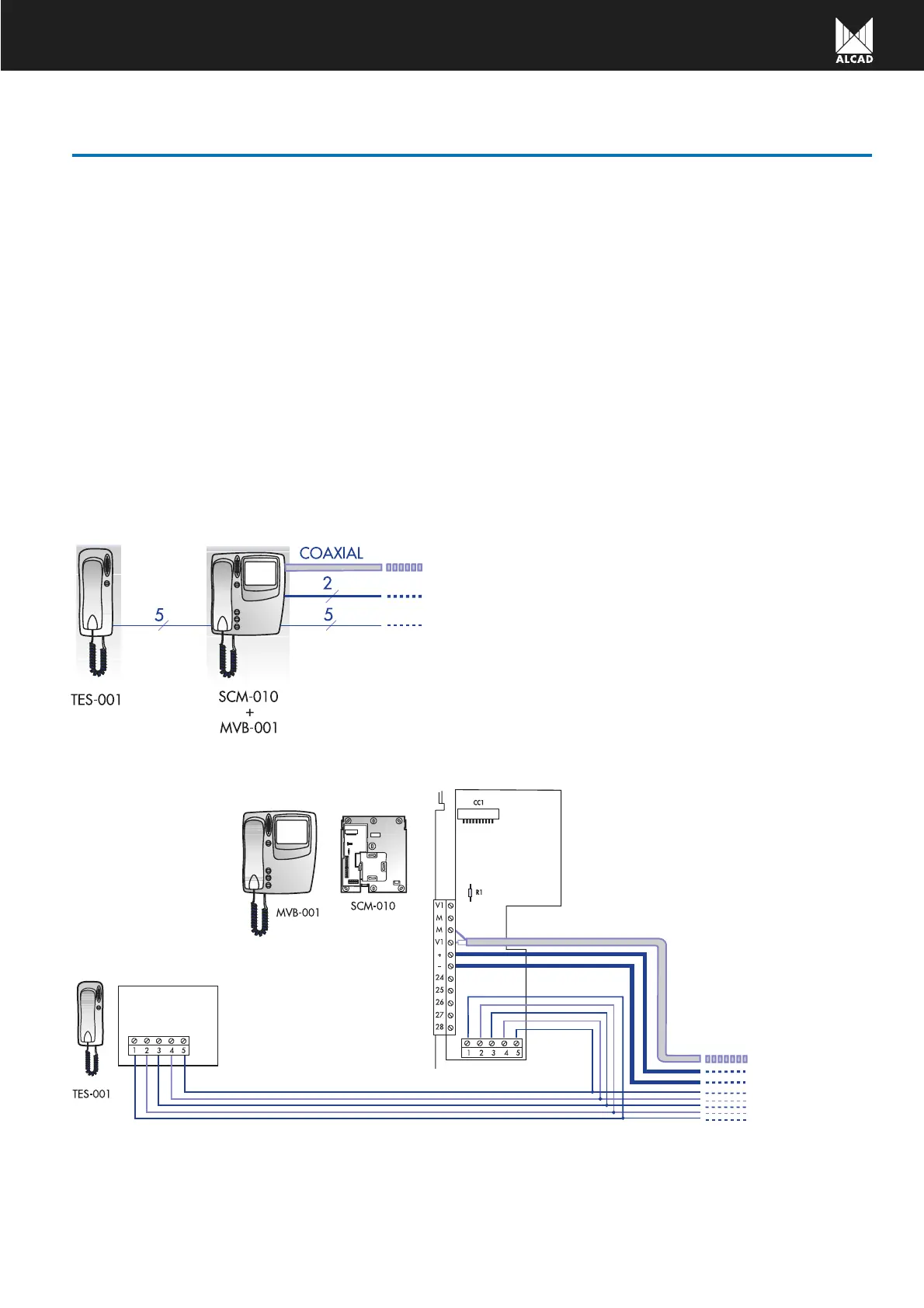

SINGLE WIRED DIAGRAM
CONNECTIONS WIRING DIAGRAM
Use
It is possible to extend the installation in a house or flat by
adding more telephones, up to a maximum of 4 different
devices (monitors and telephones per flat or house). Each
telephone will have the same functions: reception of calls,
communication with the entrance panel and door opening.
Operation
The electronic call signal is common for all monitors and
telephones. The call is distributed to all the devices so its
volume is correspondingly reduced. The consumption of the
installation is higher as it is necessary to increase the
section of the cables that must be used. Up to 4 devices
(monitors and telephones) can be installed following the
indications regarding the different sections contained in
this manual.
EXTENDING A SYSTEM WITH ONE ADDITIONAL TELEPHONE
