28
Code 9730004

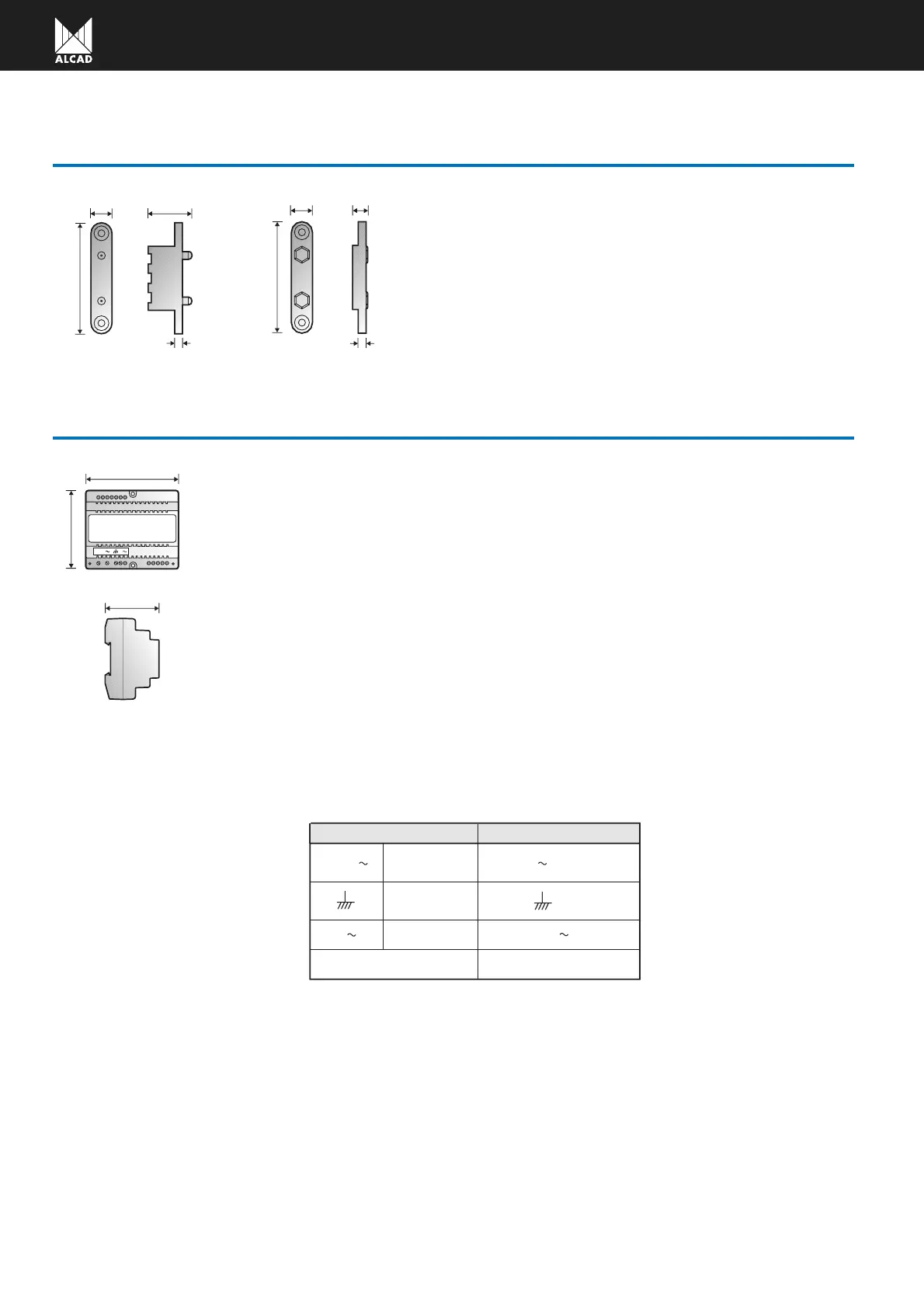

DOOR CONTACT
CNP-001
Accessory which is used together with an electric
lock to permit the opening of a double door.
13.5 mm
57.7 mm
22 mm
Door contact - Male
13.5 mm
5 mm
57.7 mm
8.6 mm
5 mm
Door contact - female
POWER SUPPLY UNITS
Description of terminals and technical characteristics
Mains voltage
Output voltage (AC)
Output power
CHARACTERISTICS
25 VA
12 V
Ground (AC)
TERMINALS
Ground (AC)
230
V
±10% 50/60 Hz
V
230 V
Code 9620001
AC 25 VA 230/240 VAC
POWER SUPPLY UNIT
ALA-040
230 V230 V V
106 mm
90 mm
60 mm
Power supply unit of great capacity with AC out-
put (12 Vac) to feed the entrance panel of the ins-
tallation (audio unit, video unit, card-holder illumi-
nation lights and electric lock. DIN 6 element rail
format. Wall or rail mounting.
The power supply unit includes a cover to pro-
tect the connection terminals. The connection ter-
minals are lift-type to assure correct connection.
The power supply unit is protected against short
circuits.
Operating temperature: -10ºC to +55ºC
Note: Use independent power supply units in insta-
llations with several access points.
Use independent power supply units for each buil-
ding and for each of the external entry points on insta-
llations on estates with several internal buildings.
