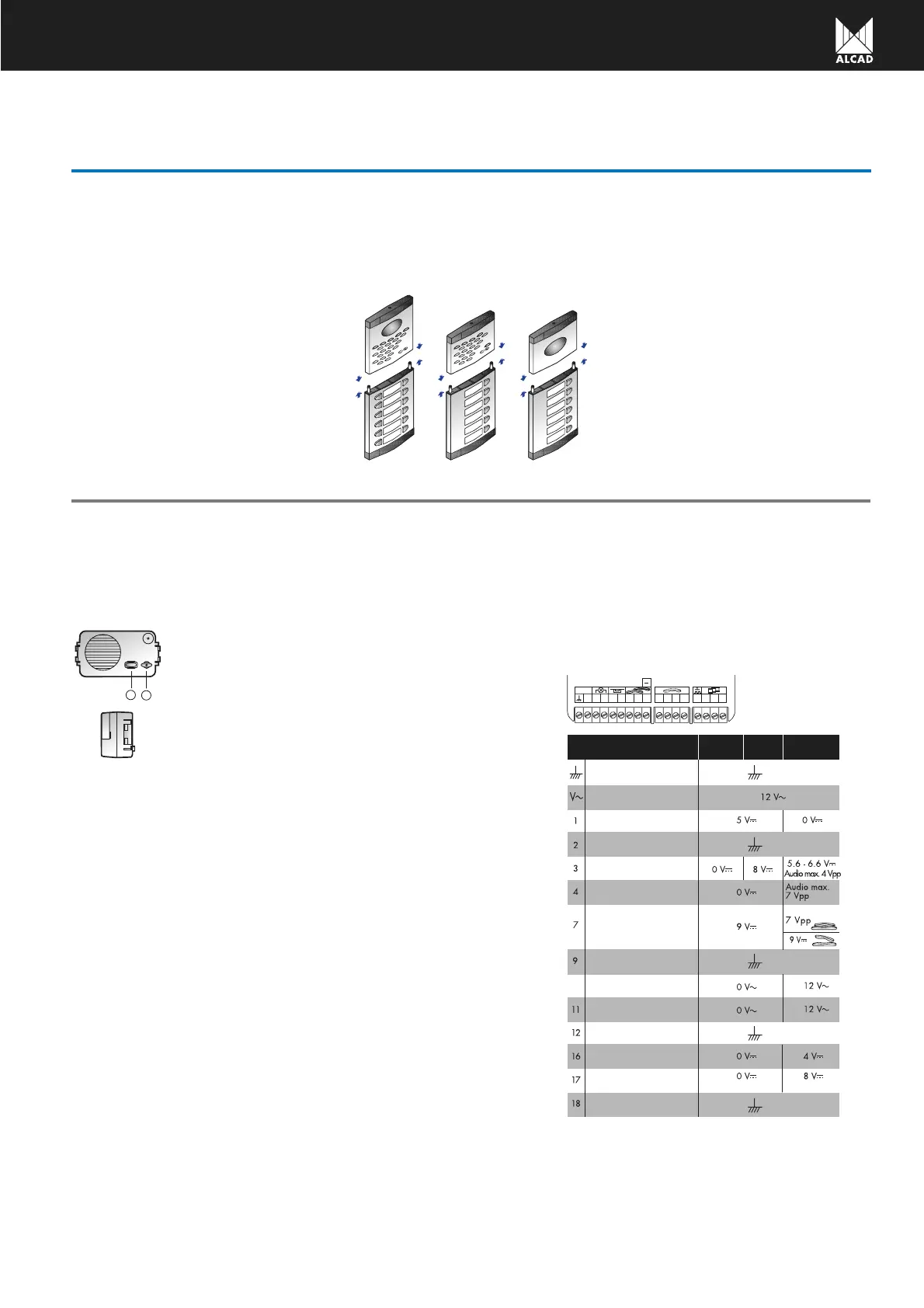

13
Modules made with an aluminium profile which house the audio unit, the video unit, the card holder or several different combinations.
They are divided into single or double modules if the same module incorporates either one or two of these elements.
ENTRANCE PANEL - UPPER MODULES
The audio unit and the video units that these modules can house are the following.
AUDIO UNITS
Code 9610015 GRF-104
AUDIO UNIT WITH
CONFIDENTIALITY FEATURE
9
10
11 12 13 14 15
12 V
~
V
~
1234
7
16 17 18
10
TERMINALS
AT REST WORKING
INACTIVE
Power supply ground
Power supply voltage
Monitor lock release
Monitor common terminal
Monitor microphone
Monitor loudspeaker
Common push button terminal
(electronic call)
Panel lighting
Panel lightning
Electric lock
Electric lock
Multiple access estate
Multiple access
Multiple access common terminal
Ground
Ground
Tone max.
Ground
Ground
Ground
Audio unit with built-in microprocessor with the
capacity to control and feed the video unit of the
video door entry system. Suitable for standard insta-
llations, several access points or estates, without the
need for audio selectors. Conventional 4+N con-
nection system. Incorporates confidentiality feature
and auto switch-on function. Generation of electronic
call with acoustic confirmation for the visitor. Allows
up to 4 devices, telephones and monitors, associa-
ted to the same call wire.
The audio unit incorporates a microphone, louds-
peaker, pushbutton to illuminate the card-holders of
the entrance panel (1), red light to indicate that the
panel is disabled (2) and volume controls both for
the panel (3) and monitors telephones (4). It includes
a bridge for the configuration of the main panel (5)
(the main panel is the panel on which the monitor’s
auto switch-on function actuates.) It also includes lift-
type connection terminals to assure a correct con-
nection.
1
2
ENTRANCE PANELS
The system of entrance panels consists of two modules, each with various models.These modules constitute the upper and lower part
of the entrance panel that is to be installed. Any configuration of entrance panel can be achieved by the different combinations availa-
ble. Several entrance panels can be connected side by side to obtain the desired number of push-buttons.
The choice of the top and lower modules, as well as the number of required entrance panels, will determine the final size of the panel
and, consequently, the dimensions and the number of flush-mounted or surface wall-mounted boxes to be used. (See the “range of entran-
ce panels” section, page 31)
The electronic circuit is protected against short cir-
cuits.
Operating temperature: -10ºC to +55ºC
