VIDEO UNITS
Code 9640000 TCB-010
B/W COAXIAL VIDEO UNIT
Black and white video unit with 1/3" CCD sensor,
and a double output in composite video signal for a
75Ω coaxial cable. For use in standard installations,
multiple access or estates (but only for those buil-
dings inside the estate in this case) without the need
for video selectors.
The video unit consists of a protective, polycarbo-
nate, front screen, infrared led auxiliary lighting for
night vision, electronic auto iris, multidirectional con-
trol of the angle of vision – up to 10° (1). In addition,
it includes plug type connection terminals with lift-
type connections to facilitate and guarantee correct
connection. (2)
The electronic circuit is protected against short cir-
cuits.
600mm
600mm
1700mm
1680mm
VERTICAL
1000mm
600mm
HORIZONTAL
Power supply From the audio unit, through the connector (3)
Video output level 1 Vpp (75 ohms)
Horizontal frequency 15625 Hz
Vertical frequency 50 Hz
Numbers of lines 380
Operating temperature -10ºC to +55ºC
2
3
1

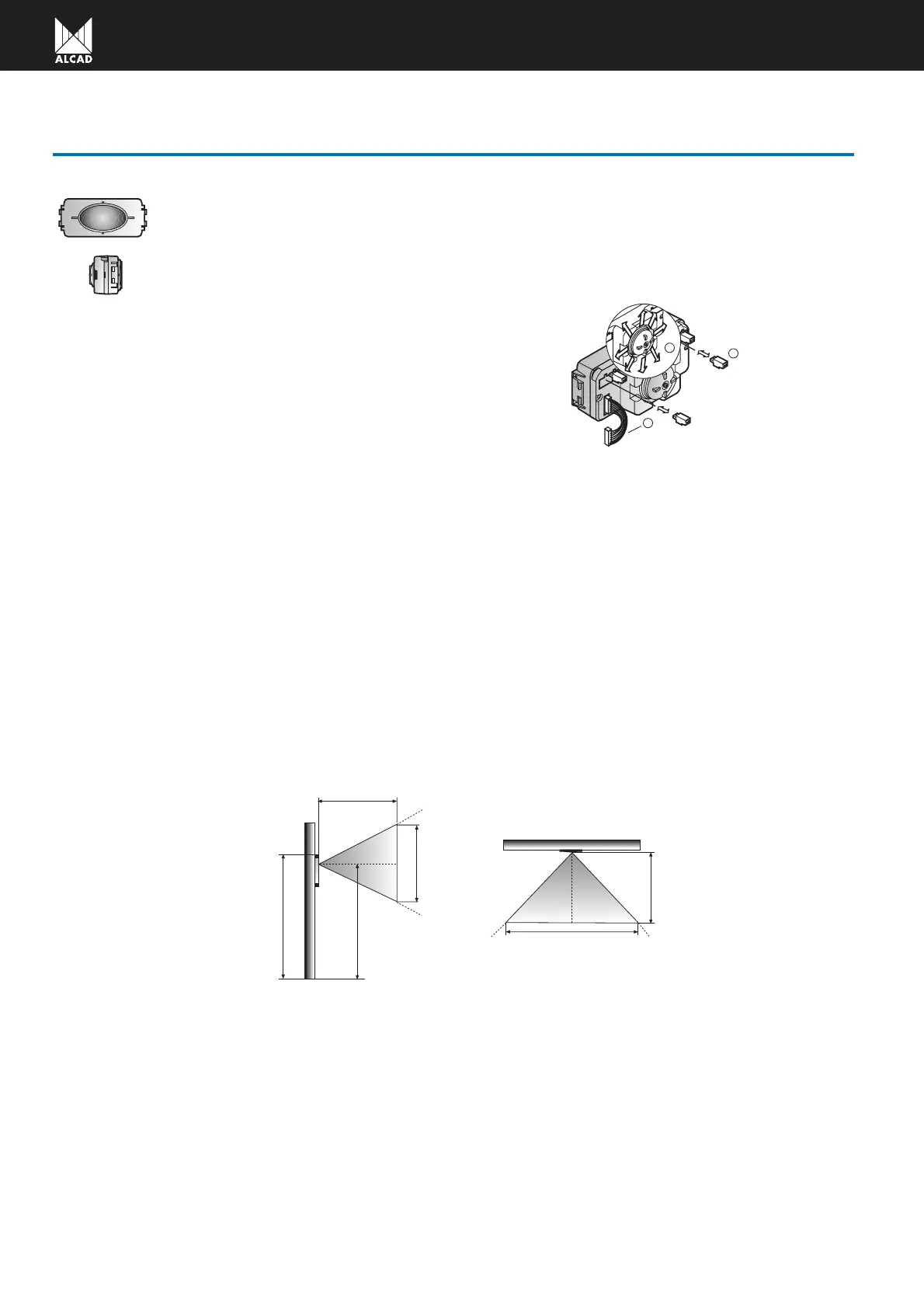

AREA OF VISION OF THE VIDEO UNIT
