15

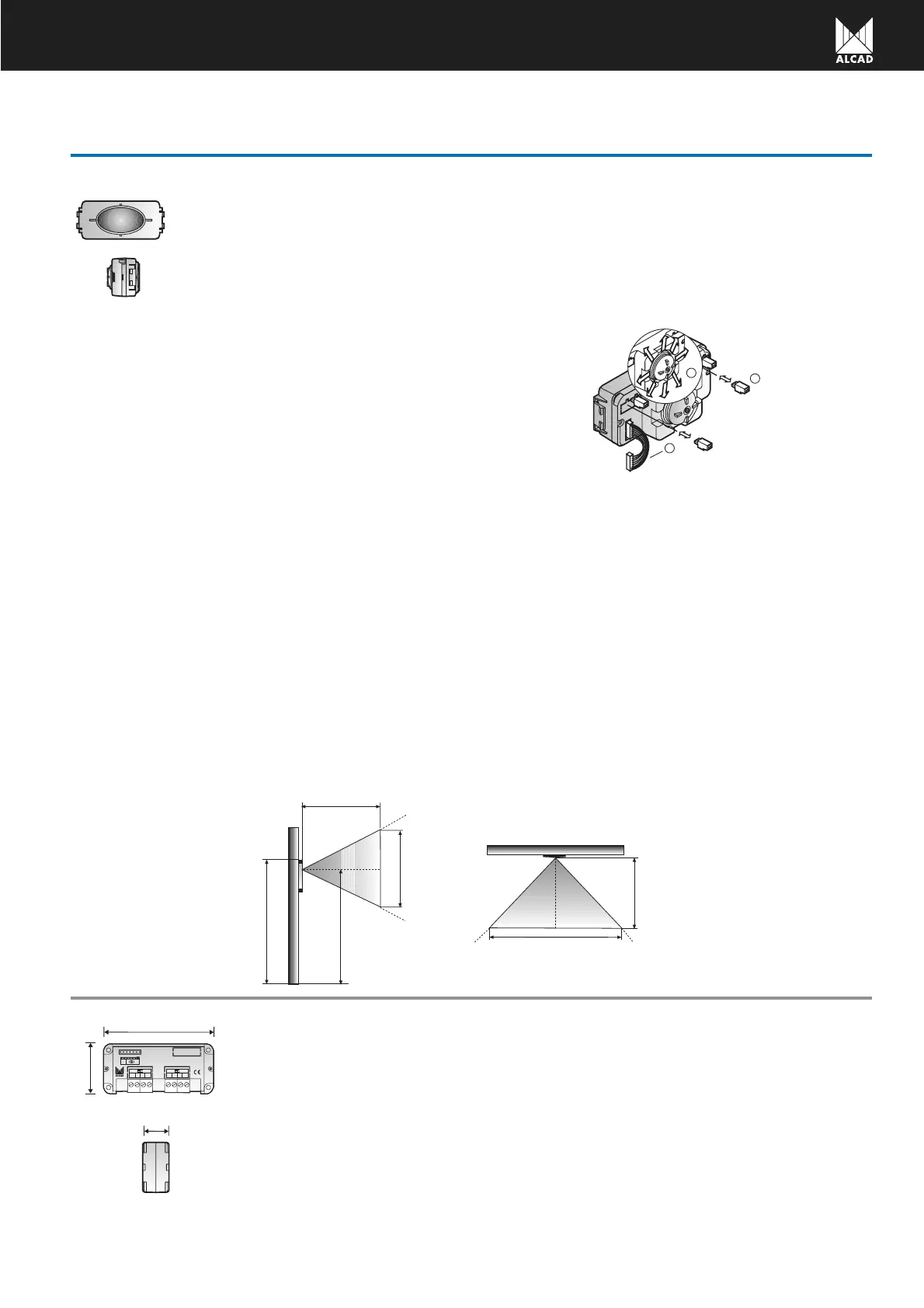

Code 9640004 TCB-110
B/W COAXIAL VIDEO UNIT FOR
EXTERNAL ACCESS
Black and white video unit with 1/3" CCD sensor.
For use on the gates or external access points of esta-
tes that consist of several independent buildings.
One video unit must be installed for each external
access point; all the other panels of the main entry
point(s) should be equipped with the video unit
accessory, model TCB-130.
The video unit consists of a protective, polycarbo-
nate, front screen, infrared led auxiliary lighting for
night vision, electronic auto iris, multidirectional con-
trol of the angle of vision – up to 10° (1). In addition,
it includes plug type connection terminals and lift-
type connections to facilitate and guarantee correct
connection. (2)
The electronic circuit is protected against short cir-
cuits.
600mm
600mm
1700mm
1680mm
VERTICAL
1000mm
600mm
HORIZONTAL
Power supply From the audio unit, through the connector (3)
Video output level 2 Vpp (high impedance)
Note: The video unit is designed to be connected with the TCB-010 and with the video unit accessory model TCB-
130. It is not possible to connect its video output to a monitor or screen directly without these elements.
Operating temperature -10ºC to +55ºC
2
3
1
Code 9640006 TCB-130
EXTERNAL ACCESS COAXIAL VIDEO UNIT ACCESSORY
Complementary element of the external access video unit on estates with several independent internal buil-
dings.
Of suitable dimensions for fixing in the flush-mounted box. It includes plug type connection terminals and lift-
type connections to facilitate and guarantee correct connection. (2)
The electronic circuit is protected against short circuits.
Power supply From the audio unit, through the connector
Operating temperature -10ºC to +55ºC
21 mm
V3
V2
V3
V2
MM
MM
19
Made in Spain
TCB-130
cod. 9640006
88 mm
40 mm
AREA OF VISION OF THE VIDEO UNIT
