The electronic video door entry products detailed in this manual comply with the following Standards:
EN60065 - Audio and Video Apparatus and Analogical Electronic Apparatus Safety Requirements
EN50081-1 – Electromagnetic Compatibility – Generic Emission Standard.
EN50082-1 – Electromagnetic Compatibility - Generic Immunity Standard.
The ALCAD electronic video door entry system products bear the CE mark.
TECHNICAL INFORMATION
2
Specifications & Standards
MONITORS
4
5
6
1
2
3
7
8
5
6
7
Code 9630000
B/W ANALOGIC VIDEO DOOR ENTRY MONITOR
MVB-001

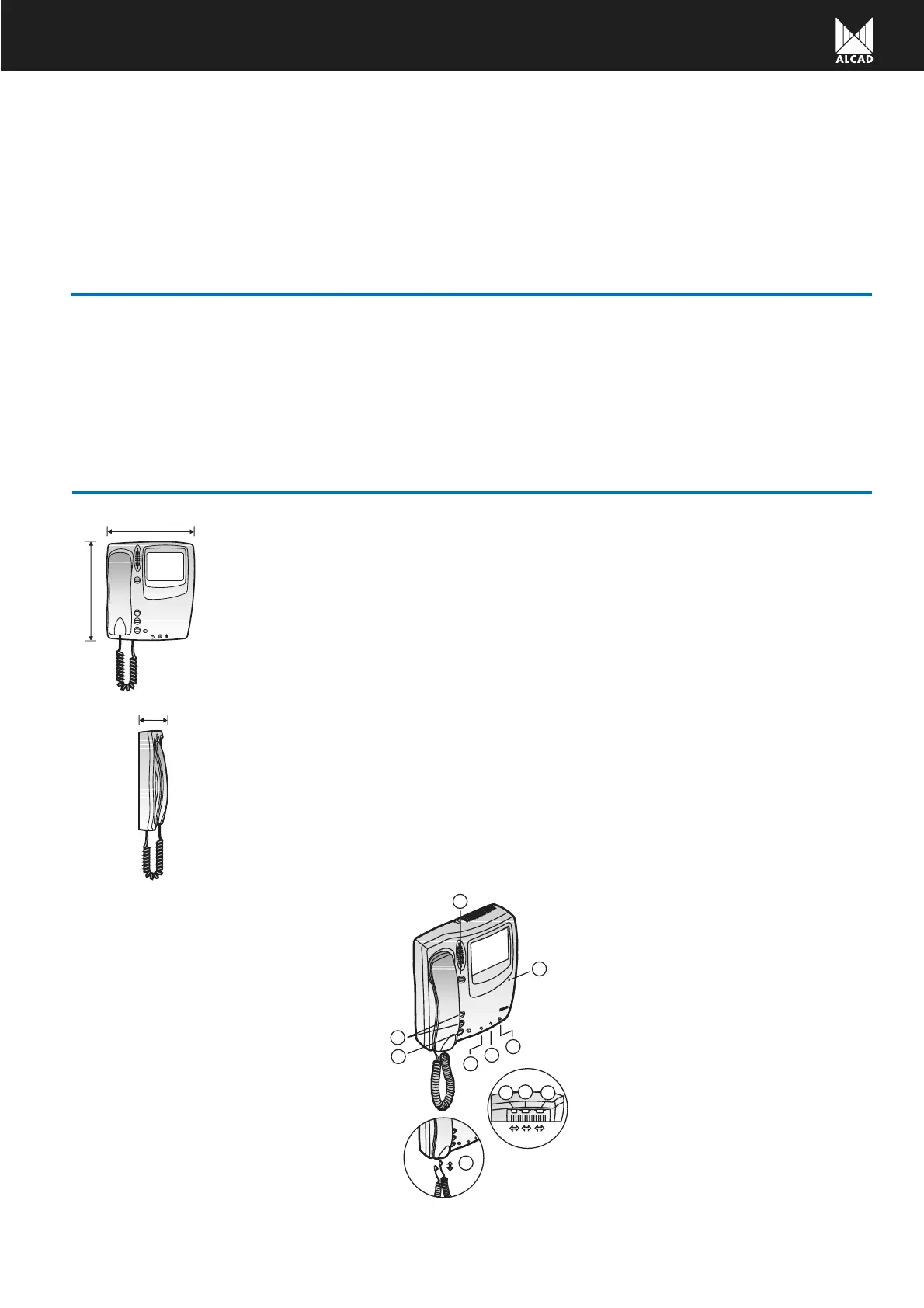

Black and white monitor with a flat 4" CRT screen for wall mounting on a connections bracket. 6+N+coaxial
analogical system with confidentiality of audio and video communication and auto switch-on function.
In the absence of a call or of the activation of the auto switch-on to a different apartment, the monitor remains
inactive.
Electronic call system; once the call is made from the entrance panel, the call warning tone generated by the
audio unit sounds on the loudspeaker of the handset of the monitor. The handset of the monitor incorporates an
electret type microphone and a 16Ω loudspeaker. The monitor incorporates a lock release button (1) auto
switch-on button (2) and two buttons for auxiliary functions (3). The lock release button is located on one side
so that it can be used without having to pick up the handset. The monitor also has a led (4) to indicate the state
of the system, separate brilliance (5) and contrast (6) controls and a switch to turn the screen on or off (7). The
handset cable is a flexible cord with telephone type connectors (8).
Power supply 15 Vdc
Operating temperature +5ºC to +55ºC
197 mm
224 mm
64.3 mm
