12
1
1
Clamp
Screw terminal
Mesh
Internal
conductor
Connection of coaxial cable
Code 9730032

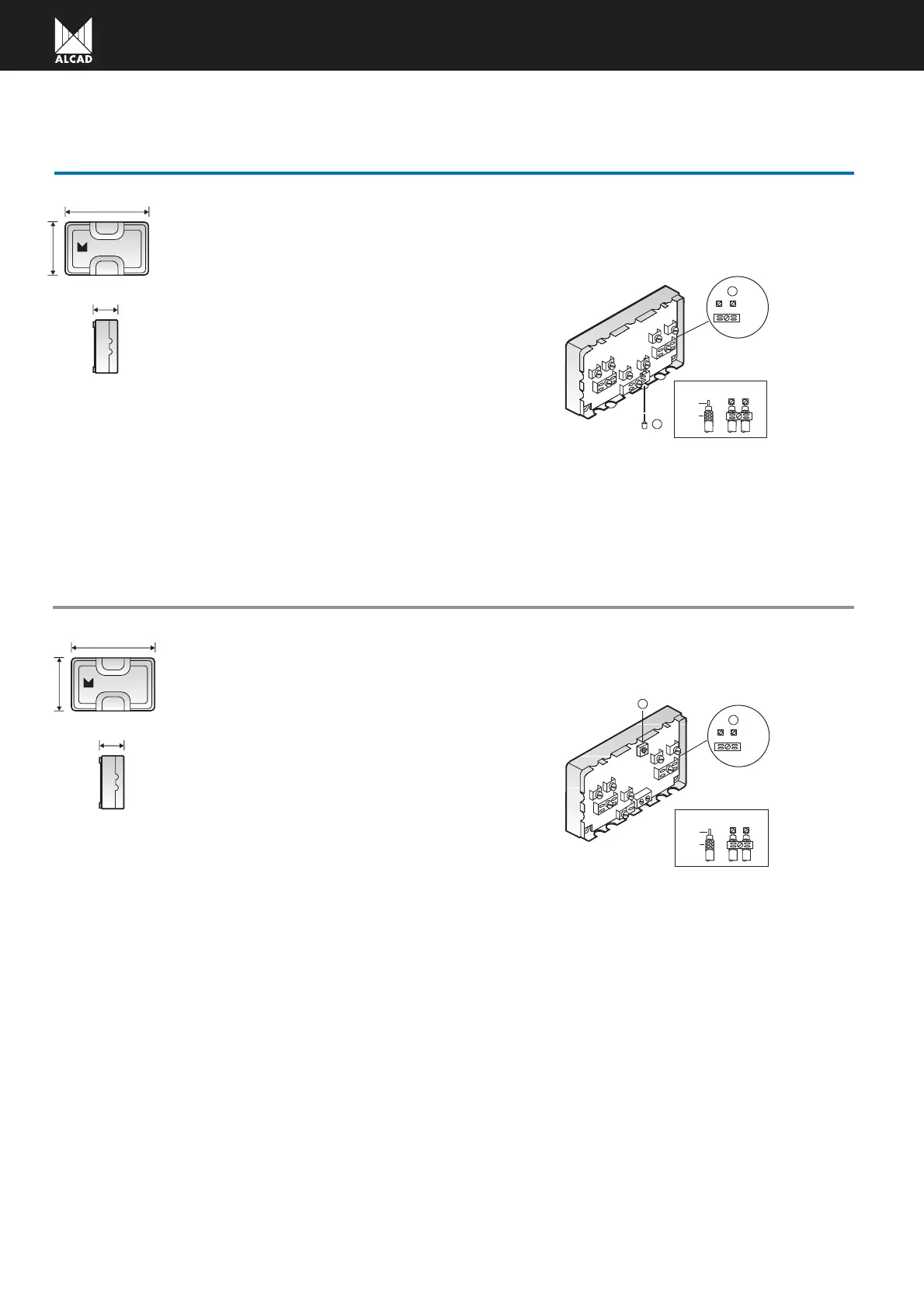

COAXIAL AMPLIFIED VIDEO
SPLITTER WITH 4 OUTPUTS
DIV-124
Splitter with 4 independent outputs of the video
signal. Fitted with a control to amplify the video
signal (1). Useful when the installation requires
several video branches or columns. Connection
by means of screw terminals and clamps 75Ω
coaxial cable (2).
88 mm
57 mm
24 mm
Power supply 15 Vdc.
Video input level 1 Vpp + 0.25 (75 ohms.)
Gain Adjustable between 1 and 1.3
2
75 Ohm
1
Clamp
Screw terminal
Mesh
Internal
conductor
Connection of coaxial cable
TAP-OFFS AND SPLITTERS
Tap-offs with 4 tapped outputs without loss, for
connection to monitors and 1 through output for
connection to the following tap-off (connection of
tap-offs in series). Of use with star-shaped distribu-
tion of the video signal, placing a tap-off on every
floor or ramification in the building. Connection by
means of screw terminals and clamps 75Ω coaxial
cable (1). It incorporates a 75Ω resistance to close
the video line (2) which should only be removed if
the through output of the tap-off is used. The tap-off
only consumes energy when one of the monitors
connected to its tap outputs is activated.
Code 9730031 DIV-024
88 mm
57 mm
24 mm
Power supply From the monitor, through the coaxial cable
Video input level 1 Vpp + 0.25 (75 ohms.)
COAXIAL VIDEO TAP-OFF WITH 4
OUTPUTS TO MONITORS
