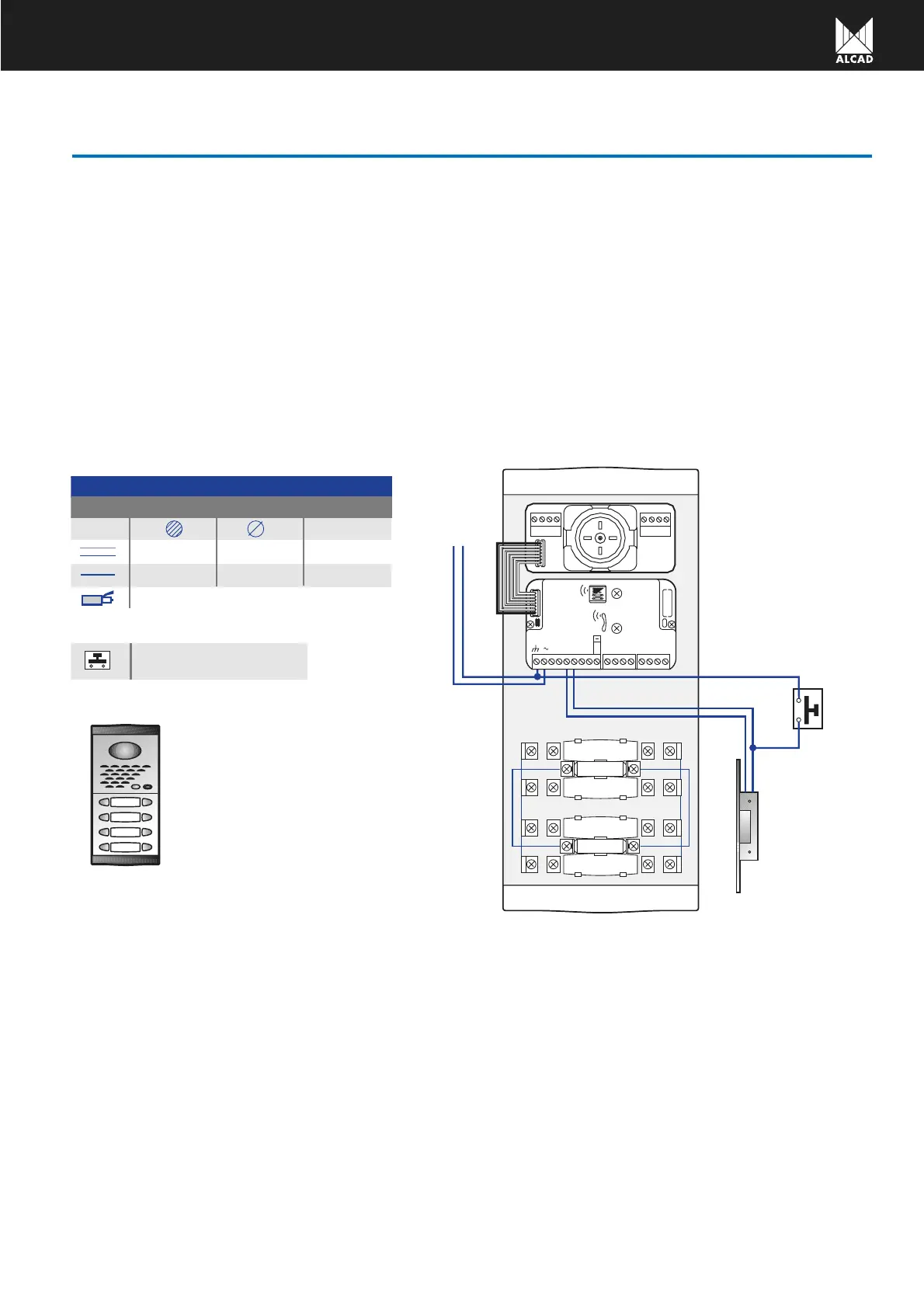

DOOR OPENING FROM INSIDE A HOUSE
6+N+COAXIAL SYSTEM
Use
It is necessary to have a pushbutton which activates the
electric lock in order to be able to open the door from insi-
de the house if the entrance door does not have a door han-
dle. The door can be pushed open while the electric lock is
activated.
Operation
When the pushbutton is pressed the electric lock receives
the power voltage from the power supply unit (terminals
11 and 12), allowing the entrance door to be opened.
It is advisable that the pushbutton is installed near the
entrance door so that the door can be pushed open
while the pushbutton is pressed. If this is not possible,
install an automatic electric lock, model ABR-003, which
will remain activated until the door is opened.
