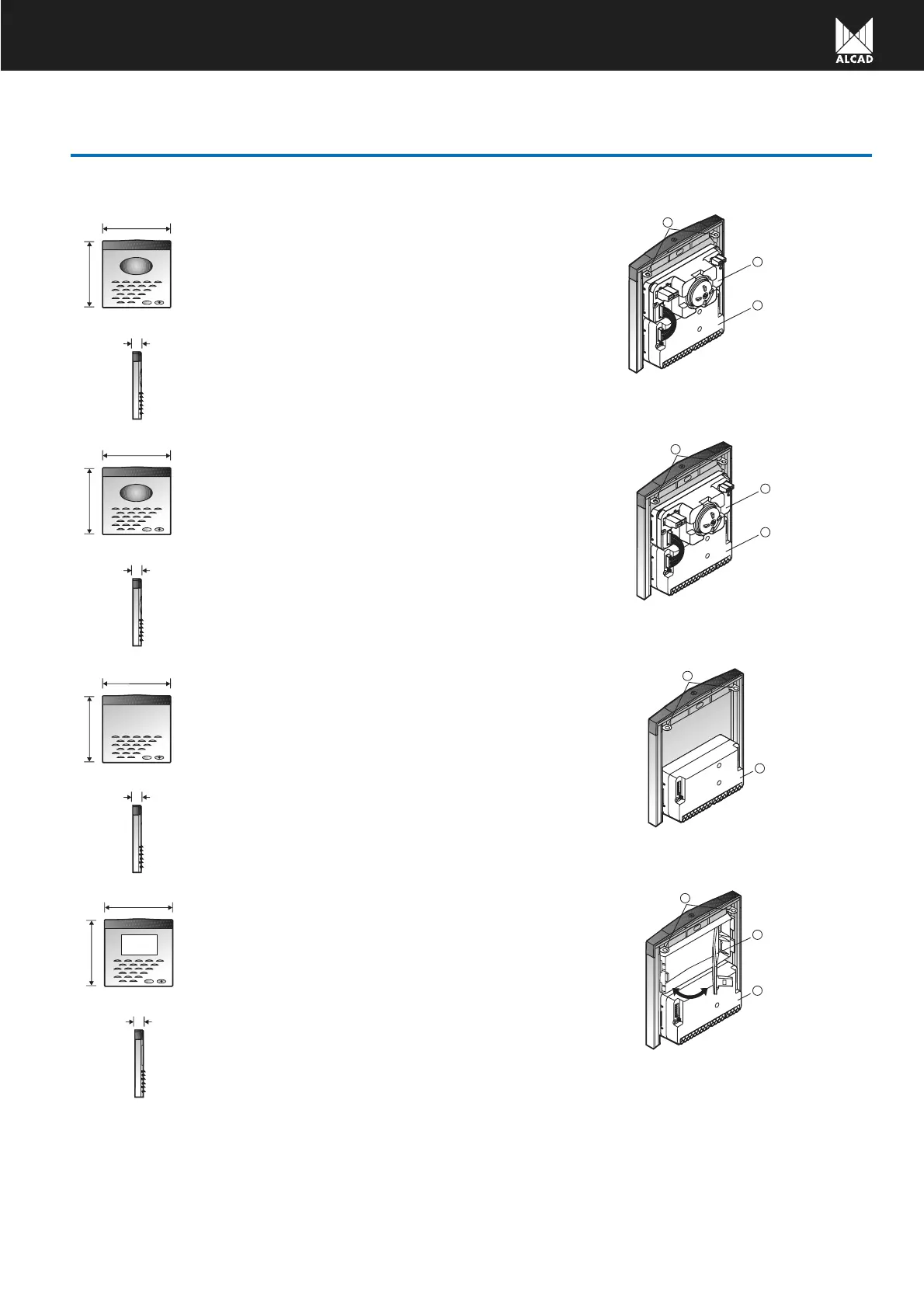

ENTRANCE PANEL. DOUBLE UPPER MODULES
Code 9670043 MDN-041
ENTRANCE PANEL MODULE WITH
AUDIO UNIT AND TCB-010 VIDEO
UNIT
Module which houses the audio unit (1), GRF-
104 model and the coaxial black and white video
unit (2), model TCB-010. Fitted with rubber strips
for water-tightness and with rings (3) for hanging
in the flush-mounted box.
3
2
1
128 mm
126.5 mm
12 mm
Code 9670047 MDN-141
ENTRANCE PANEL MODULE WITH
AUDIO UNIT AND TCB-110 VIDEO
UNIT
Module which houses the audio unit (1), GRF-
104 model and the external access coaxial black
and white video unit (2) model TCB-110. Fitted
with rubber strips for water-tightness and with
rings (3) for hanging in the flush-mounted box.
3
2
1
128 mm
126.5 mm
12 mm
Code 9670098 MCN-041
ENTRANCE PANEL MODULE WITH
AUDIO UNIT AND BLANK MODULE
2
1
Module which houses the audio unit (1), GRF-
104 model. Fitted with rubber strips for water-tight-
ness and with rings (3) for hanging in the flush-
mounted box.
12 mm
128 mm
126.5 mm
Code 9670097 MMN-041
ENTRANCE PANEL MODULE WITH
AUDIO UNIT AND CARD-HOLDER
3
1
2
Module which houses the audio unit (1), model
GRF-104, and an informative card-holder (2) of
76.5 x 43.5mm made from polycarbonate. Fitted
with rubber strips for water-tightness and with
rings (2) for hanging in the flush-mounted box.
128 mm
126.5 mm
12 mm
