- Attach the terminal using the two lugs: introduce the lugs into the holes previously
occupied by the feet (left foot and hole intended for this purpose for Advanced Reflexes
terminals).
- Stabilize the mounting by clipping the foot into the base of the terminal.
4.13.1.2.4 Mounting optional modules:
- Turn the terminal
- Remove the panel situated at the rear of the terminal.
- Slide the module into the terminal
- Connet the module to the terminal (connector ).
- Join the module to the terminal using the 2 screws provided in the kit
- Connect the module output (connector UA) to the terminal's wall socket.

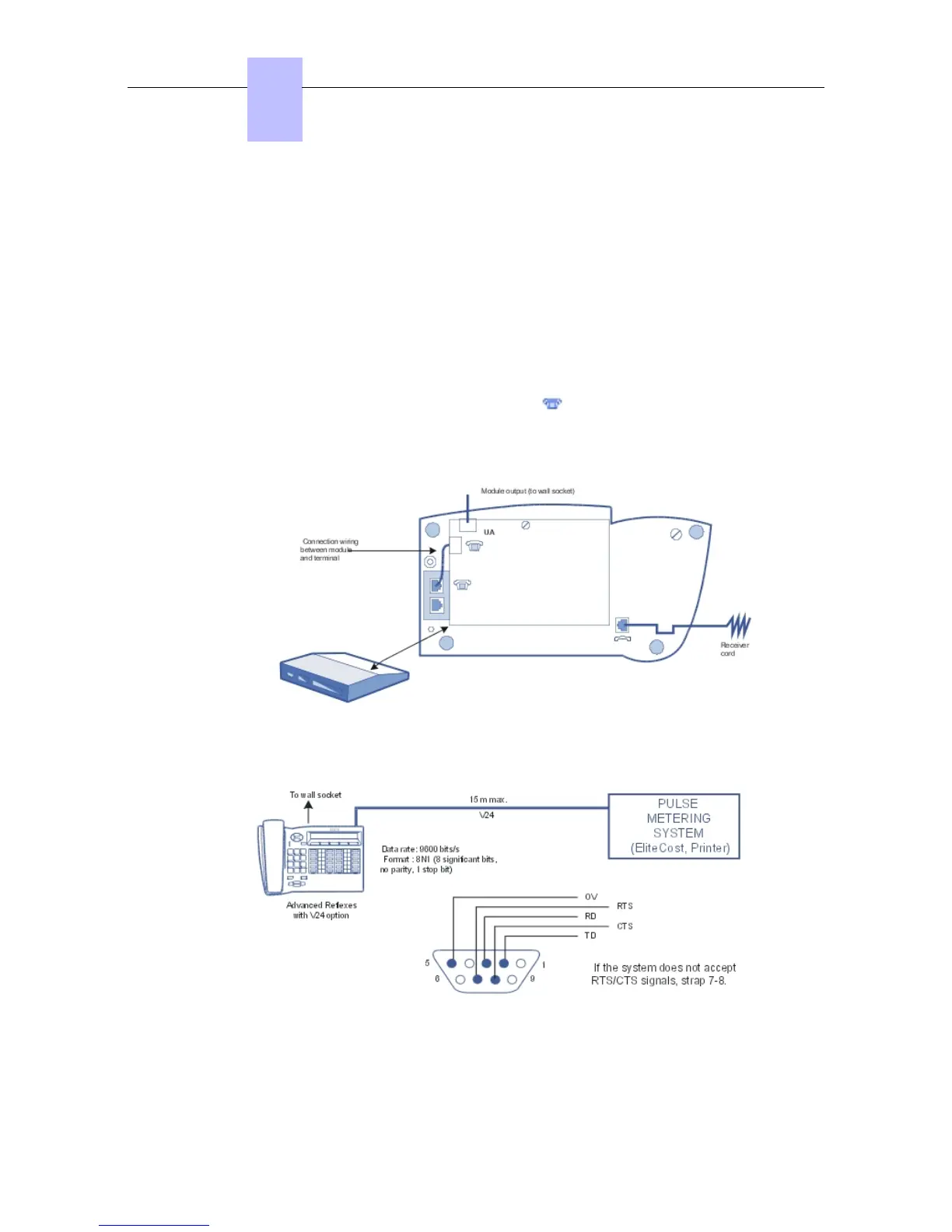

Example of using optional modules: connecting a charge management system
Chapter
4
  &'(
4-108
        
