5 Wor king principle of the separator

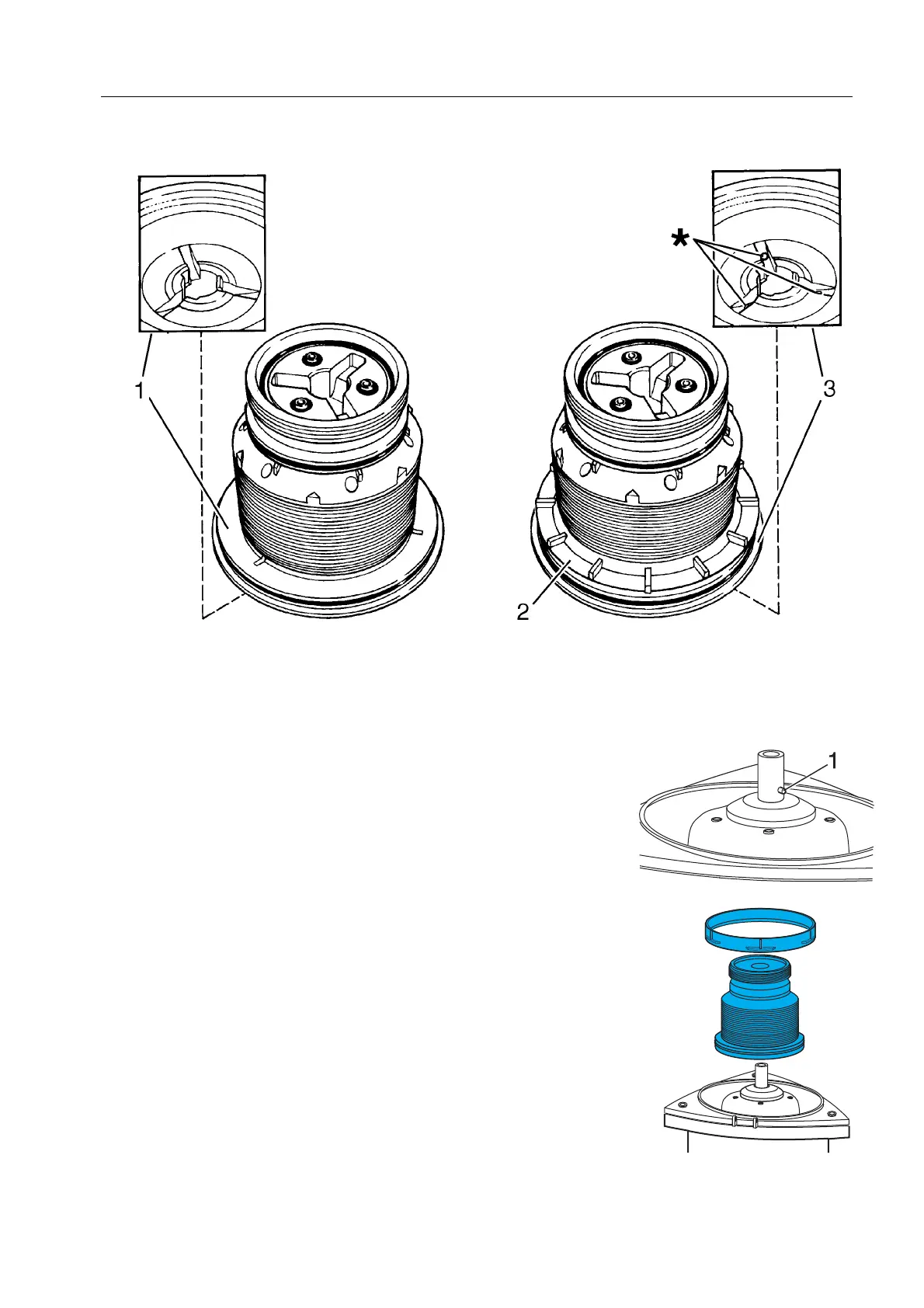

5. Exchange one insert for the other.
G1114311
Clarifie r bowl insert
G1114411
Purifier bowl insert
1. Bowl bottom (clarifier) 2. Bottom disc (purifier)
3. Bowl bottom (purifier) w ith three holes (*)
6. When fitting the insert, check that the
cylindrical pin (1) in the shaft is not missing.
Check that the pin enters the guide in the bottom
of the insert.
G0907011
G05191d
1
23
